Shape File Conversion - Ag Leader Integra Display Operator's Manual

S F
HAPE ILE
What is commonly called a shape file is actually a collection of three different files. All three of the files
are required and must be present on the USB drive for the system to use shape file groups for variable
rate product application. A single "shape file" can contain recommendation rates for multiple products.
To begin, press the Rate Setup button on the Product Control Toolbox.
Rate Control Settings
ExTran
Rate 1:
10.00
Rate 2: 8.00
Increment: 1.00
Prescription:
0
MInimum Flow:

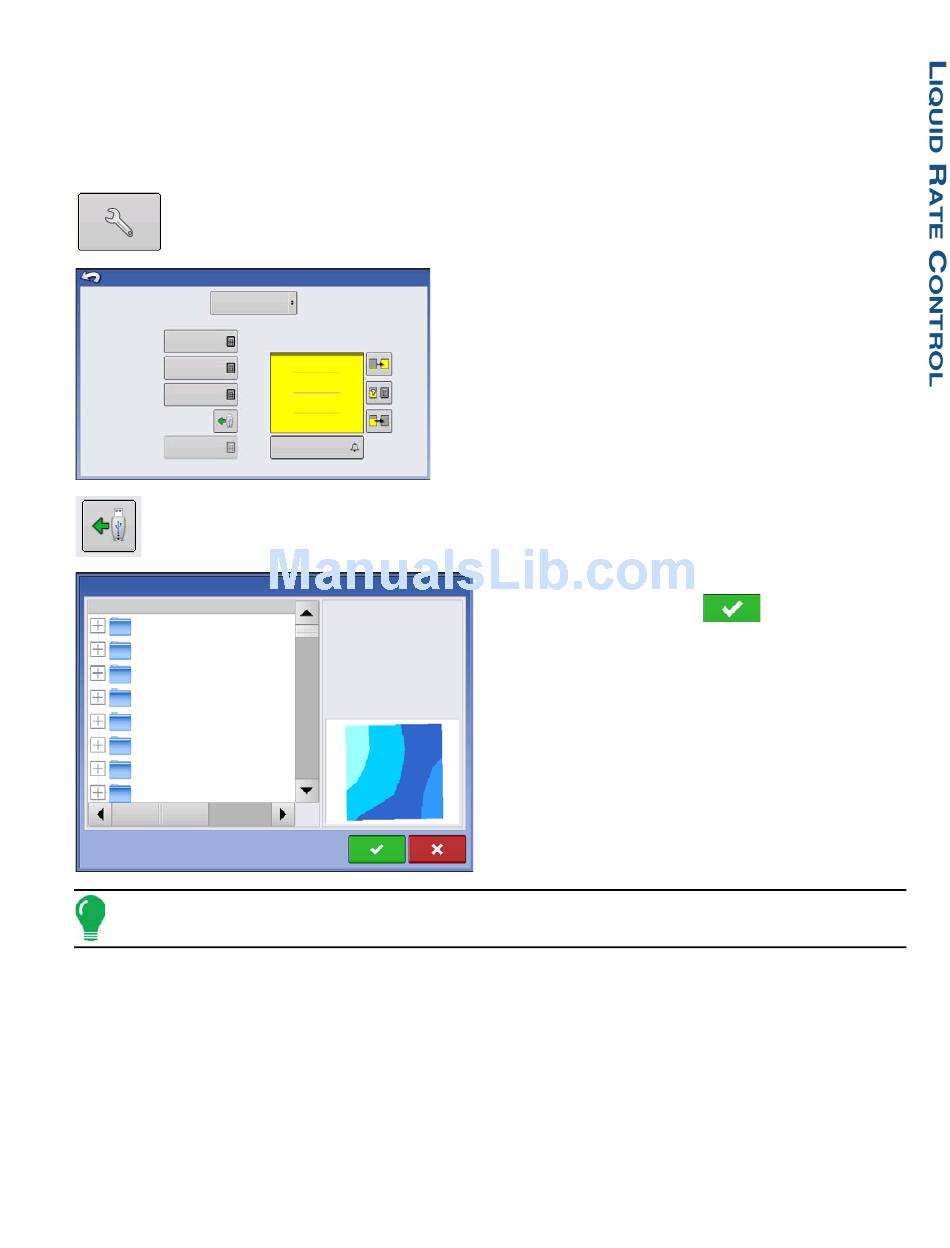

1. Open File Selection screen.
Press the Load Prescription button.
File Selection
Name
Autopilot_dry.irx
demo_2_liquid.irx
demo_2_liquid_3_dry.irx
demo_3_liquid,irx
demo_3dry_1liq.irx
Demo Field
Planting
Application
Note: Select the product and units that the shape file prescription was made for.
Ag Leader PN 4002083 Rev. N
C
ONVERSION
The Rate Control Settings screen appears.
Full: 800 gal
Current: 770 gal
80 gal
10 %
3 mi
Field:
Product 1: 32% UAN
Product 2:
Balance Flexx
Roundup
Product 3:
Product 4:
Product 5:
2. The File Selection screen appears. Highlight your
desired .shp file and press
-
-
A
PPLICATION
.
245
