7. Enter Actual Dispense Amount
Enter in the actual amount of the product that was dispensed. Press
8. Calibration Complete
The Pump Calibration number appears. The New Injection Pump Calibration Number now appears in the
Pump Calibration screen. From this point, you may either:
• Repeat the calibration by pressing the Repeat Calibration button.
• Press to complete the calibration and exit the Pump Calibration Wizard.
Controller Settings
Pump Calibration
Factory
11 pls/fl oz
Calibration
Rate Response Warning
Error
30 %
Threshold
Error Delay 5 s

Priming an Injection Pump

If you are using a Direct Injection configuration, you must prime the Injection Pump each time you flush
or refill a tank, or change products. This ensures that air is not in the product lines.
CAUTION: Failure to perform this priming procedure before beginning a Direct Injection application could
result in skips at the start of field operations.
1. Press Injection Control button
Injection
To prime the Injection Pump, first go to the Map screen. Press the Injection button. The Injection
1
button is located at the left-hand side of the Equipment Tab. The Injection Controls screen
appears.
Injection Controls
Injection
Prime Agitate
Ag Leader PN 4002083 Rev. N
Active Calibration
Perform
11 pls/fl oz
Calibration
Flow Monitor Warning
Error
25 %
Threshold
Enable Warning

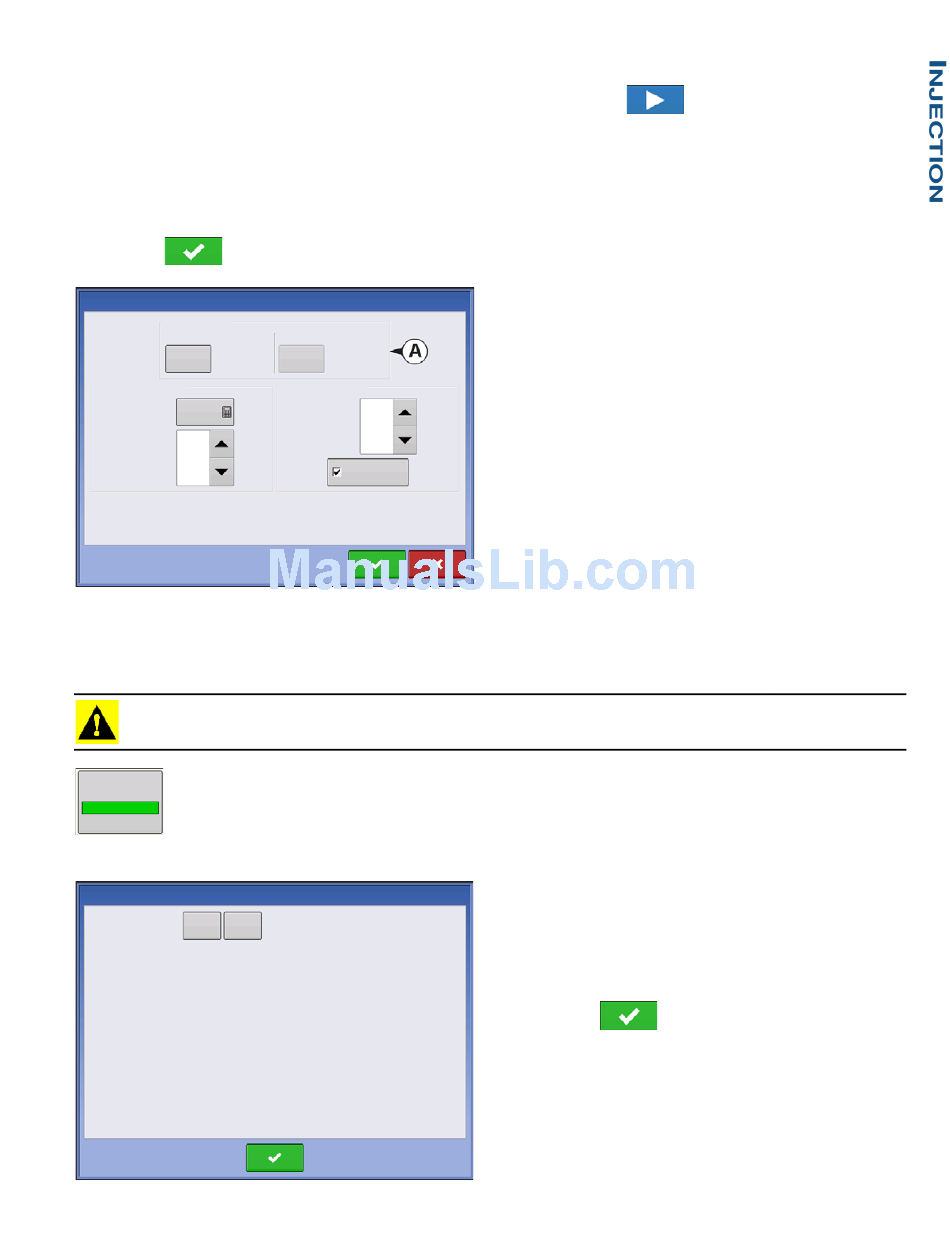

9. Calibration Displayed on Controller Settings
screen.
The new Injection Pump Calibration Number (A) now
appears in the Pump Calibration screen.
2. Press the Prime button
At the Injection Controls screen, press the Prime button.
• You may agitate the Direct Injection tank by pressing
the Agitate button. Once pressed, this Agitate setting
will continue even after the Priming process is finished,
until you press a second time. To determine if a
product should be agitated, check the product
specifications.
• In order for a Direct Injection tank to agitate the
product, you must set the agitator motor switch on Run
(which agitates the product continuously) or Pulse
(which agitates the product intermittently).
A
PPLICATION
to continue.
269
