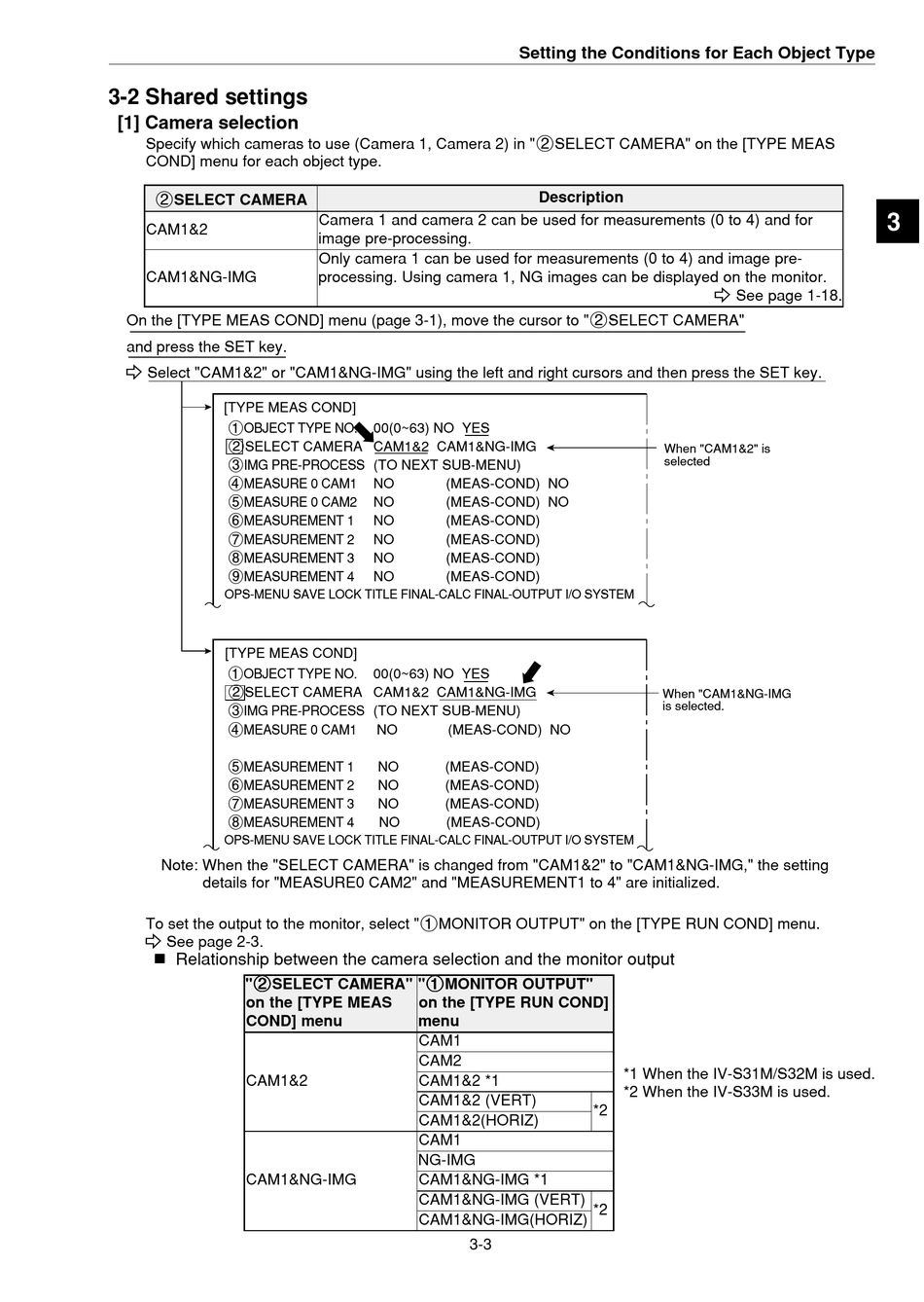

3-2 Shared settings

[1] Camera selection

Specify which cameras to use (Camera 1, Camera 2) in "2SELECT CAMERA" on the [TYPE MEAS
COND] menu for each object type.
2
S
E
L
E
C
T
C
A
M
E
C
A
M
1
&
2
C
A
M
1
&
N
G
I -
M
G
On the [TYPE MEAS COND] menu (page 3-1), move the cursor to "2SELECT CAMERA"
and press the SET key.
- Select "CAM1&2" or "CAM1&NG-IMG" using the left and right cursors and then press the SET key.
[TYPE MEAS COND]
1OBJECT TYPE NO.
2SELECT CAMERA CAM1&2 CAM1&NG-IMG
3IMG PRE-PROCESS (TO NEXT SUB-MENU)
4MEASURE 0 CAM1
5MEASURE 0 CAM2
6MEASUREMENT 1
7MEASUREMENT 2
8MEASUREMENT 3
9MEASUREMENT 4
OPS-MENU SAVE LOCK TITLE FINAL-CALC FINAL-OUTPUT I/O SYSTEM
[TYPE MEAS COND]
1OBJECT TYPE NO.
2SELECT CAMERA CAM1&2 CAM1&NG-IMG
3IMG PRE-PROCESS (TO NEXT SUB-MENU)
4MEASURE 0 CAM1
5MEASUREMENT 1
6MEASUREMENT 2
7MEASUREMENT 3
8MEASUREMENT 4
OPS-MENU SAVE LOCK TITLE FINAL-CALC FINAL-OUTPUT I/O SYSTEM
Note: When the "SELECT CAMERA" is changed from "CAM1&2" to "CAM1&NG-IMG," the setting
details for "MEASURE0 CAM2" and "MEASUREMENT1 to 4" are initialized.
To set the output to the monitor, select "1MONITOR OUTPUT" on the [TYPE RUN COND] menu.
