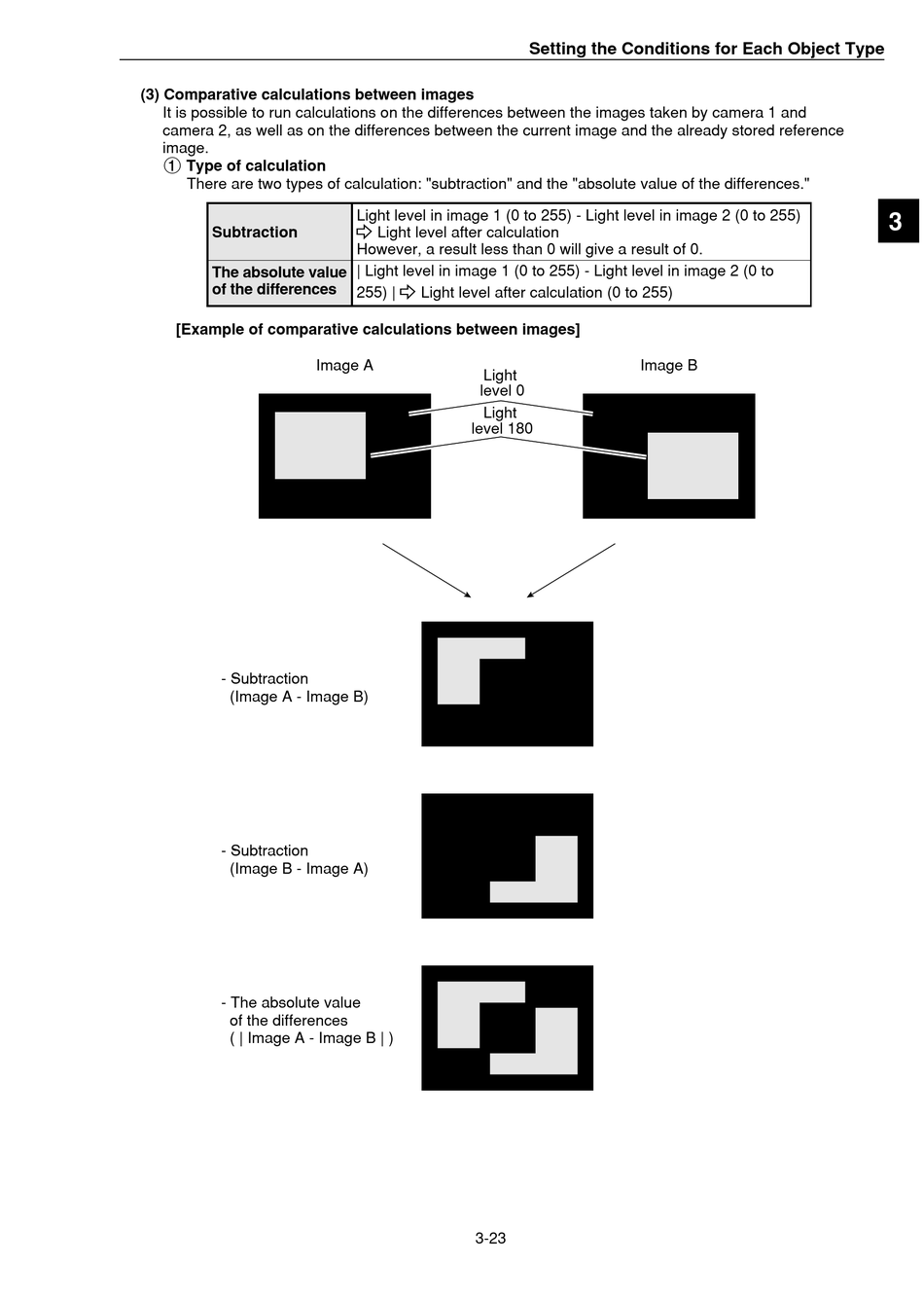

(3) Comparative calculations between images

It is possible to run calculations on the differences between the images taken by camera 1 and
camera 2, as well as on the differences between the current image and the already stored reference
image.
1 Type of calculation
There are two types of calculation: "subtraction" and the "absolute value of the differences."
Subtraction
The absolute value
of the differences
[Example of comparative calculations between images]
- Subtraction
(Image A - Image B)
- Subtraction
(Image B - Image A)
- The absolute value
of the differences
( | Image A - Image B | )
Light level in image 1 (0 to 255) - Light level in image 2 (0 to 255)
- Light level after calculation
However, a result less than 0 will give a result of 0.
| Light level in image 1 (0 to 255) - Light level in image 2 (0 to
255) | - Light level after calculation (0 to 255)
Image A
Light
level 0
Light
level 180
3-23
Setting the Conditions for Each Object Type
Image B
3
