Continued from page 4-3 or previous page
[EVALUATION COND]
1REGISTER NO. 0(0~7)
2CONDITION SET RESET AUTO(+10%)
3X COORD.(MDL0) 000.0~511.0
4Y COORD.(MDL0) 000.0~479.0
5x DEVIATE(MDL0) -511.0~+511.0
6y DEVIATE(MDL0) -479.0~+479.0
7MATCH LVL(MDL0) -10000~+10000 M0=+09000
8ANGULAR DEVIATE -180.0~+180.0
9X COORD.(MDL1) 000.0~511.0
0Y COORD.(MDL1) 000.0~479.0
qx DEVIATE(MDL1) -511.0~+511.0
wy DEVIATE(MDL1) -479.0~+479.0
eMATCH LVL(MDL1) -10000~+10000 M1=+09000
rTEST
EXEC(WITH-POSI.WITHOUT-POSI.ADJ)
OPS-MENU RETURN LOCK
-Items 9 to e are displayed in the 2P-SCH (2-point search), 2P-EDGE (2-point edge) and 1P-
SCH + 1P-EDGE (1-point search + 1-point edge) modes.
- Lines 7 and e are displayed as follows when edge detection is selected.
7SEARCH EDGE(MDL0) YES NO K0 ---- When "1P-EDGE " or "2P-EDGE" is selected.
eSEARCH EDGE(MDL1) YES NO K0 ---- When "2P-EDGE" or "1P-SCH + 1P-EDGE" is selected.
When you want to select a numeric calculation
- Select "RETURN" to return to the [MEAS COND] menu, and then select
"NUM-CALC" and press the SET key.
- See "Chapter 15: Numerical Calculations"
When you want to select a PC function
- Select "RETURN" to return to the [MEAS COND] menu, and then select
"OUT-COND" and press the SET key.
- See "Chapter 16: PC Function"
Return to the [MEAS COND] menu.
Pressing the TRG/BRT key will start a measurement manually.
[Display of the measured
results]
Final evaluation result
Measuring time
Measurement program number
Registration number
Detection coordinates in the
reference image for model 0
Amount of deviation from
the reference image for model 0
Degree of match with the
reference image for model 0
Amount of angular deviation
Detection coordinates in the
reference image for model 1
Amount of deviation from
the reference image for model 1
Degree of match with the
reference image for model 1
The displays for other modes are shown in the next page.
[TEST RESULT]
[OUTPUT]
X0= 000.0
OK
NO
Y0= 000.0
OK
NO
x0=+000.0
OK
NO
y0=+000.0
OK
NO
OK
NO
B0=+010.0
OK
NO
X1= 000.0
OK
NO
Y1= 000.0
OK
NO
x0=+000.0
OK
NO
y0=+000.0
OK
NO
OK
NO
Ë When a 2 point search has been specified.
(TYPE00)
OK
MEAS XXXXms 1999-08-01 10:30
MEASURE 0 CAM1 POSI-DEVIATION
REGISTER NO(0~7)
X0=176.0
OK
Y0=322.0
OK
x0=+000.0
OK
y0=+000.0
OK
M0=+10000 OK
B0=+001.7
OK
X1=534.0
OK
Y1=480.0
OK
x1=+001.0
OK
y1=+001.0
OK
M1=+09999 OK
X0~7
Y0~7
CHG-MEA CHG-REG CHG-RST CHG-C1
OPS-CND MEA-CND SYS-CND CHG-TYPE NEXT-NG RE-EXAM-NG MANL-MEAS
4-5

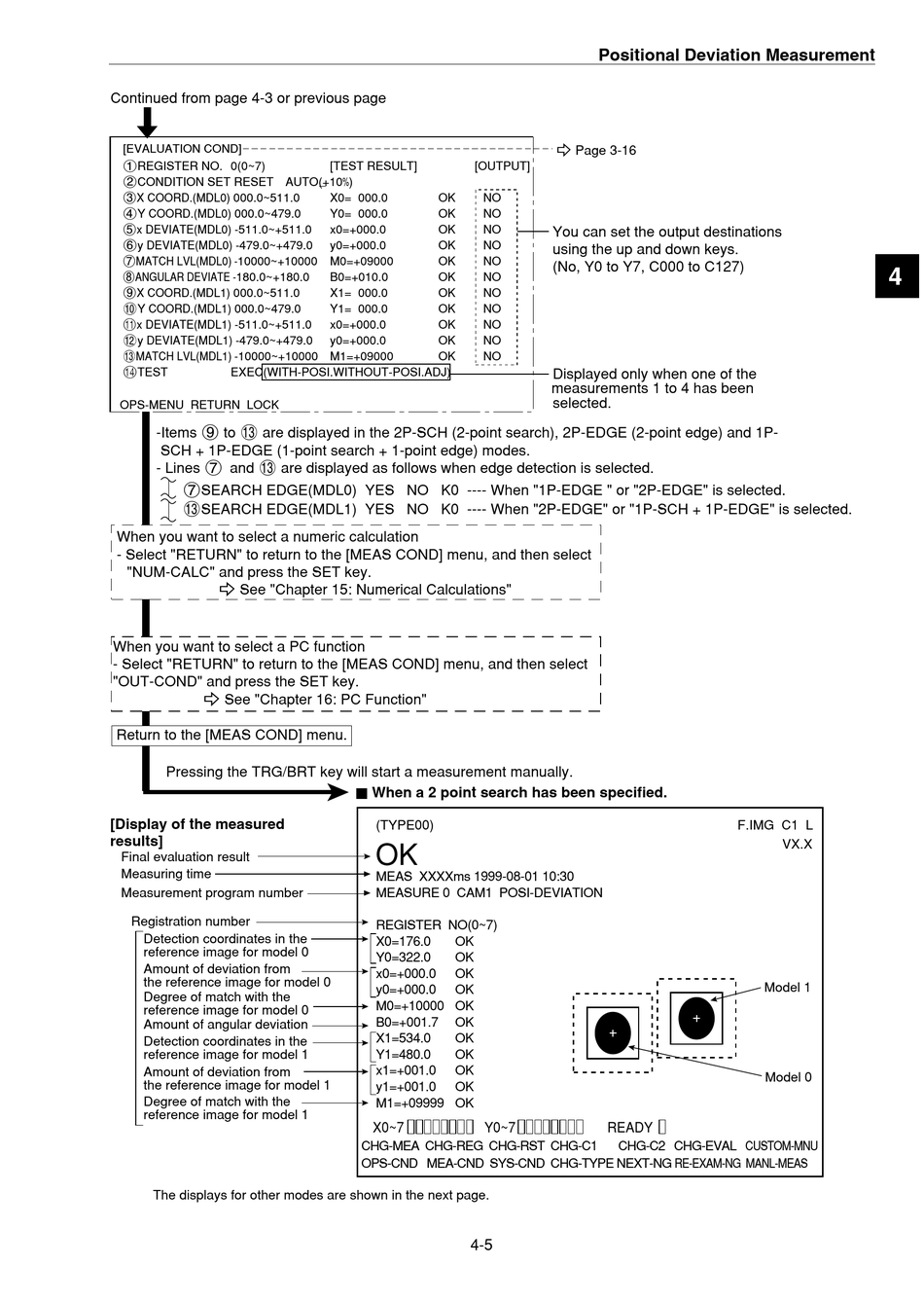

Positional Deviation Measurement

- Page 3-16
You can set the output destinations
using the up and down keys.
(No, Y0 to Y7, C000 to C127)
Displayed only when one of the
measurements 1 to 4 has been
selected.
READY
CHG-C2 CHG-EVAL CUSTOM-MNU
4
F.IMG C1 L
VX.X
Model 1
Model 0
