Continued from the previous page
When you want to select a numeric calculation
- Select "RETURN" to return to the [MEAS COND] menu, and then select
"NUM-CALC" and press the SET key.
- See "Chapter 15: Numerical Calculations"
When you want to select a PC function
- Select "RETURN" to return to the [MEAS COND] menu, and then select
"OUT-COND" and press the SET key.
- See "Chapter 16: PC Function"
Return to the MAIN OPS MENU.
Pressing the TRG/BRT key will start a measurement manually.

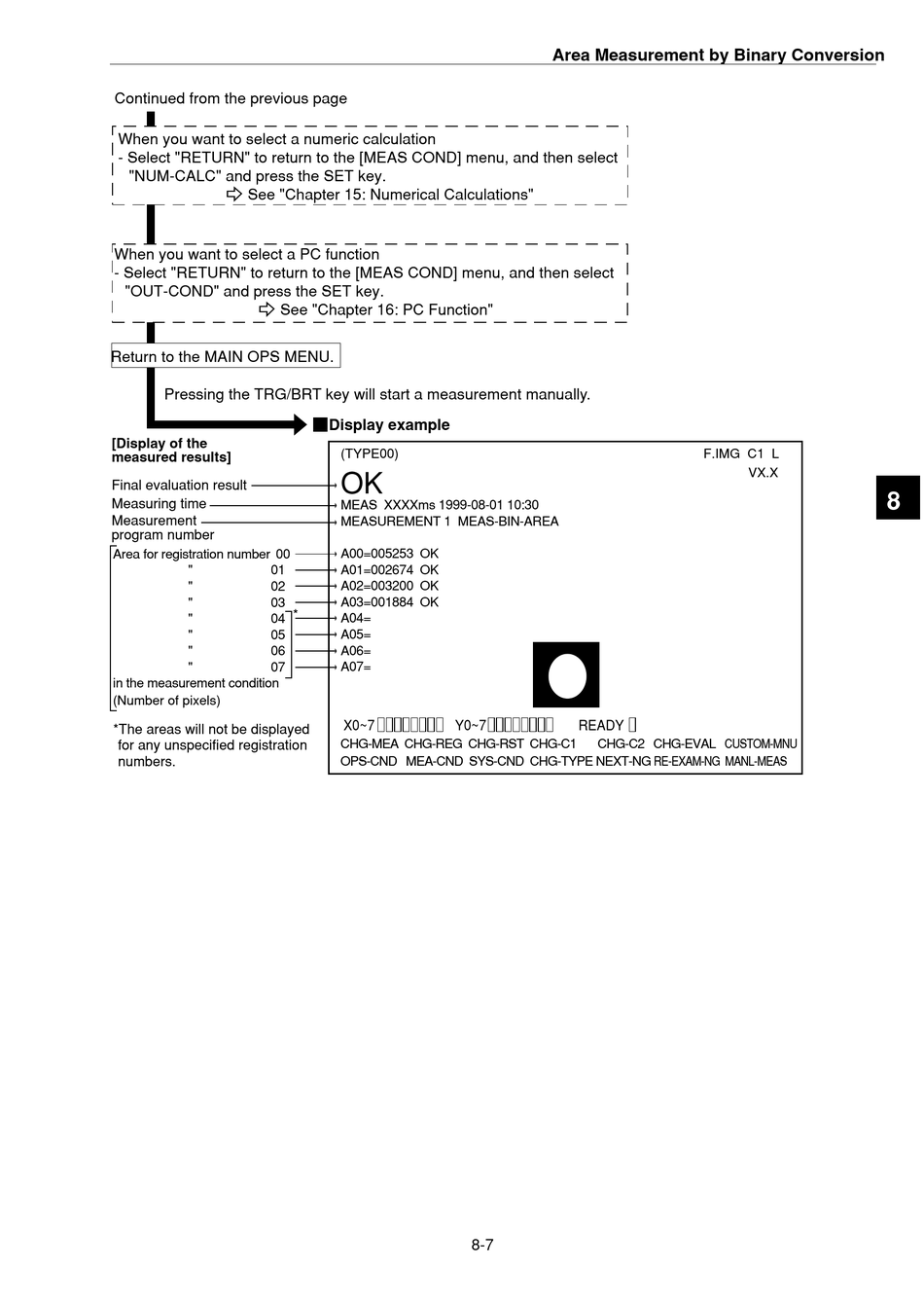

[Display of the
measured results]
Final evaluation result
Measuring time
Measurement
program number
Area for registration number 00
"
01
"
02
"
03
"
04
"
05
"
06
"
07
in the measurement condition
(Number of pixels)
*The areas will not be displayed
for any unspecified registration
numbers.
Display example
(TYPE00)
OK
MEAS XXXXms 1999-08-01 10:30
MEASUREMENT 1 MEAS-BIN-AREA
A00=005253 OK
A01=002674 OK
A02=003200 OK
A03=001884 OK
*
A04=
A05=
A06=
A07=
X0~7
Y0~7
CHG-MEA CHG-REG CHG-RST CHG-C1
OPS-CND MEA-CND SYS-CND CHG-TYPE NEXT-NG RE-EXAM-NG MANL-MEAS
Area Measurement by Binary Conversion
READY
CHG-C2 CHG-EVAL CUSTOM-MNU
8-7
F.IMG C1 L
VX.X
8
