Setting the Operating and System Conditions

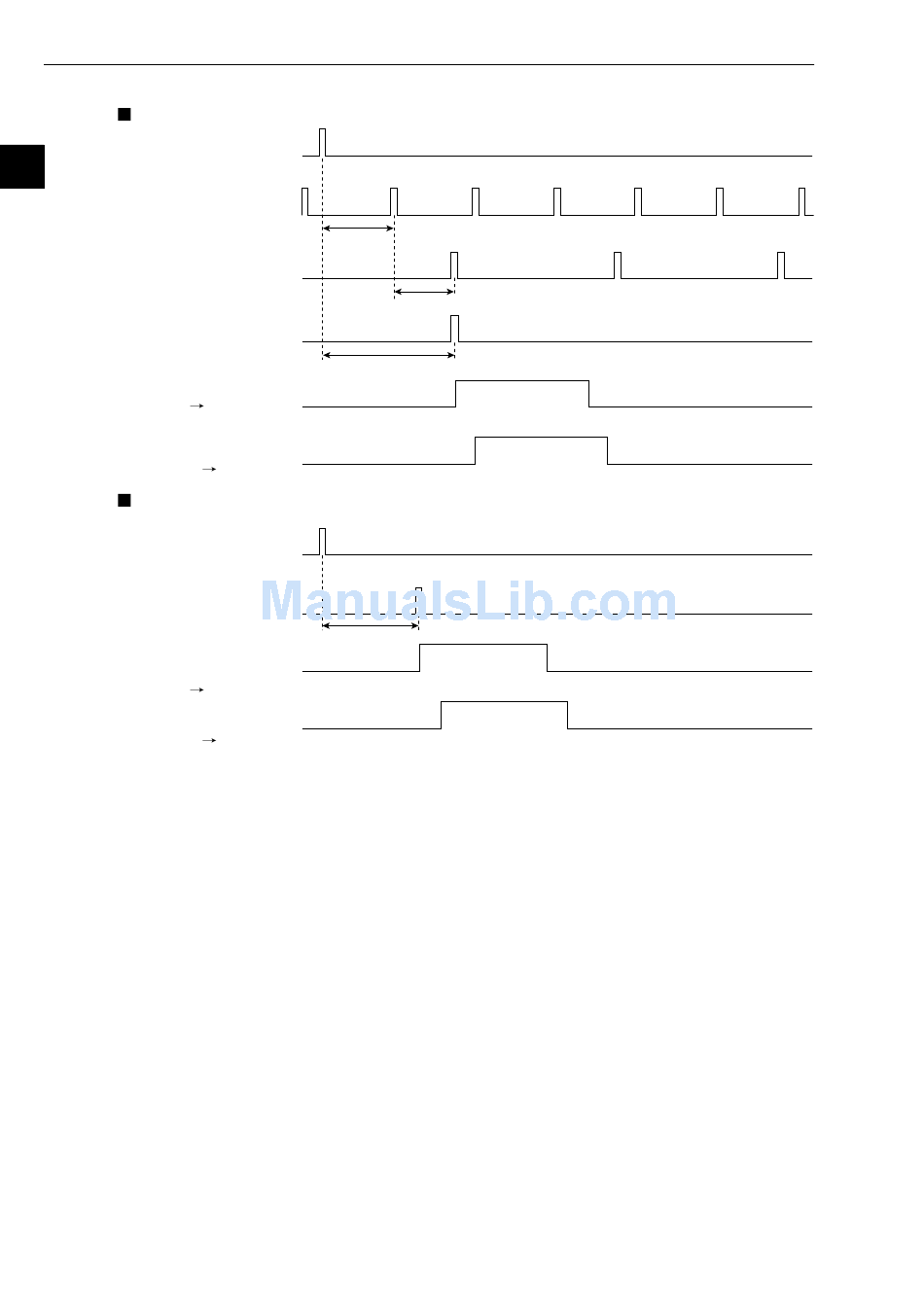

(3) Timing chart
Internal synchronization
Trigger input
2
Monitor output
vertical
synchronization
signal
Camera
reading top line
Shutter open
Image data transfer
(CCD VRAM)
Image data transfer
(VRAM SDRAM)
External synchronization
Trigger input
Shutter open
Image data
transfer
(CCD VRAM)
Image data transfer
(VRAM SDRAM)
Note: When an EIA camera is used, the last (lowest) line (line 479) may not be captured
successfully due to the camera's characteristics.
Wait for monitor to output vertical synchronization signal (maximum 16.6 ms)
Waiting for camera to read top line (maximum 33.3 ms)
Wait time (maximum 49.9 ms)
Exposure time
