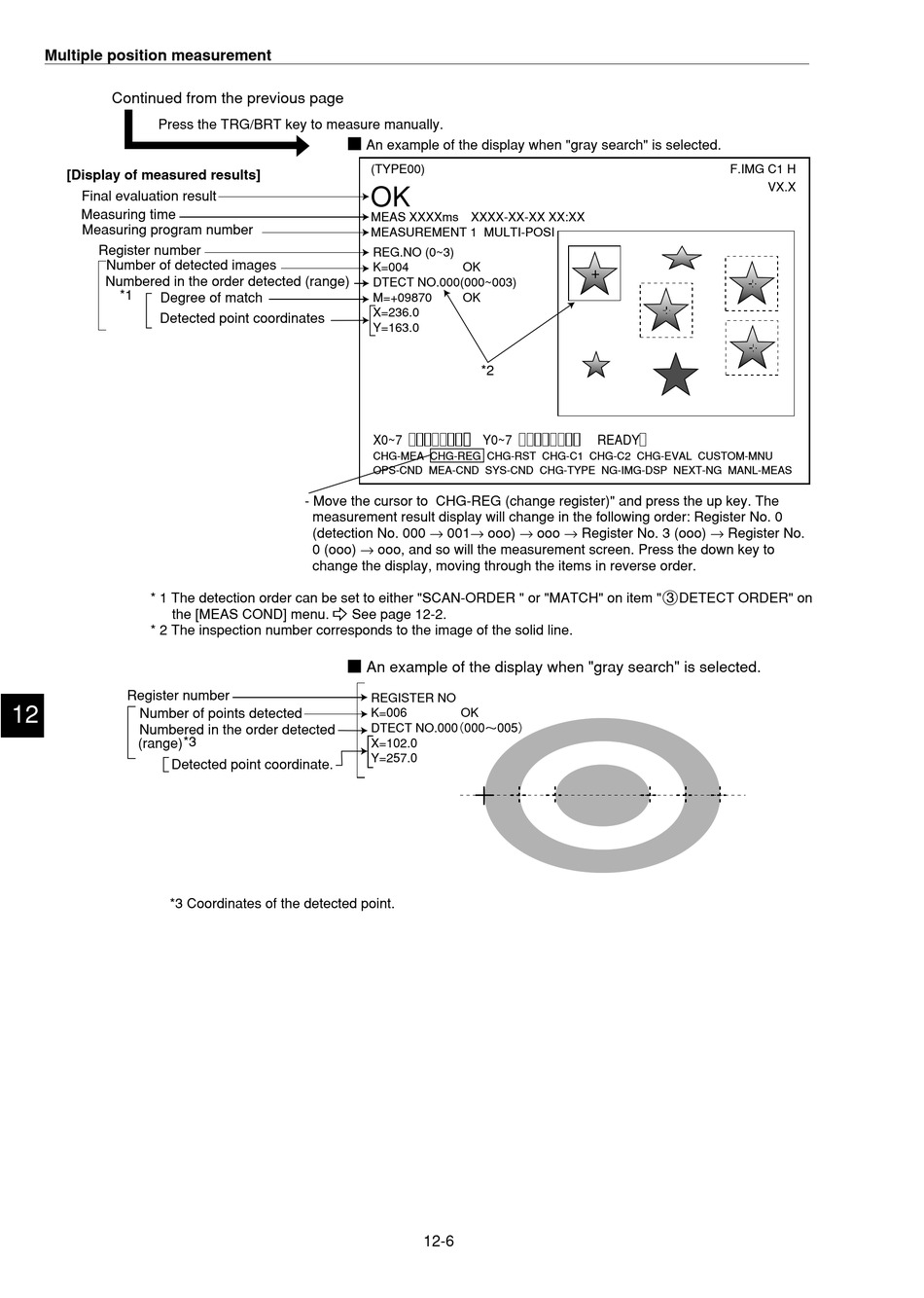

Multiple position measurement
Continued from the previous page
Press the TRG/BRT key to measure manually.
[Display of measured results]
Final evaluation result
Measuring time
Measuring program number
Register number
Number of detected images
Numbered in the order detected (range)
*1
Degree of match
Detected point coordinates
* 1 The detection order can be set to either "SCAN-ORDER " or "MATCH" on item "3DETECT ORDER" on
the [MEAS COND] menu. - See page 12-2.
* 2 The inspection number corresponds to the image of the solid line.
Register number
Number of points detected
Numbered in the order detected
*3
(range)
Detected point coordinate.
*3 Coordinates of the detected point.
An example of the display when "gray search" is selected.
(TYPE00)
OK
MEAS XXXXms XXXX-XX-XX XX:XX
MEASUREMENT 1 MULTI-POSI
REG.NO (0~3)
K=004
OK
DTECT NO.000(000~003)
M=+09870
OK
X=236.0
Y=163.0
X0~7
CHG-MEA CHG-REG CHG-RST CHG-C1 CHG-C2 CHG-EVAL CUSTOM-MNU
OPS-CND MEA-CND SYS-CND CHG-TYPE NG-IMG-DSP NEXT-NG MANL-MEAS
- Move the cursor to CHG-REG (change register)" and press the up key. The
measurement result display will change in the following order: Register No. 0
(detection No. 000 → 001→ ooo) → ooo → Register No. 3 (ooo) → Register No.
0 (ooo) → ooo, and so will the measurement screen. Press the down key to
change the display, moving through the items in reverse order.
DTECT NO.
12-6
*2
Y0~7
READY
"gray search" is selected.
F.IMG C1 H
VX.X
