Chapter 1: Setting and Operating Outline

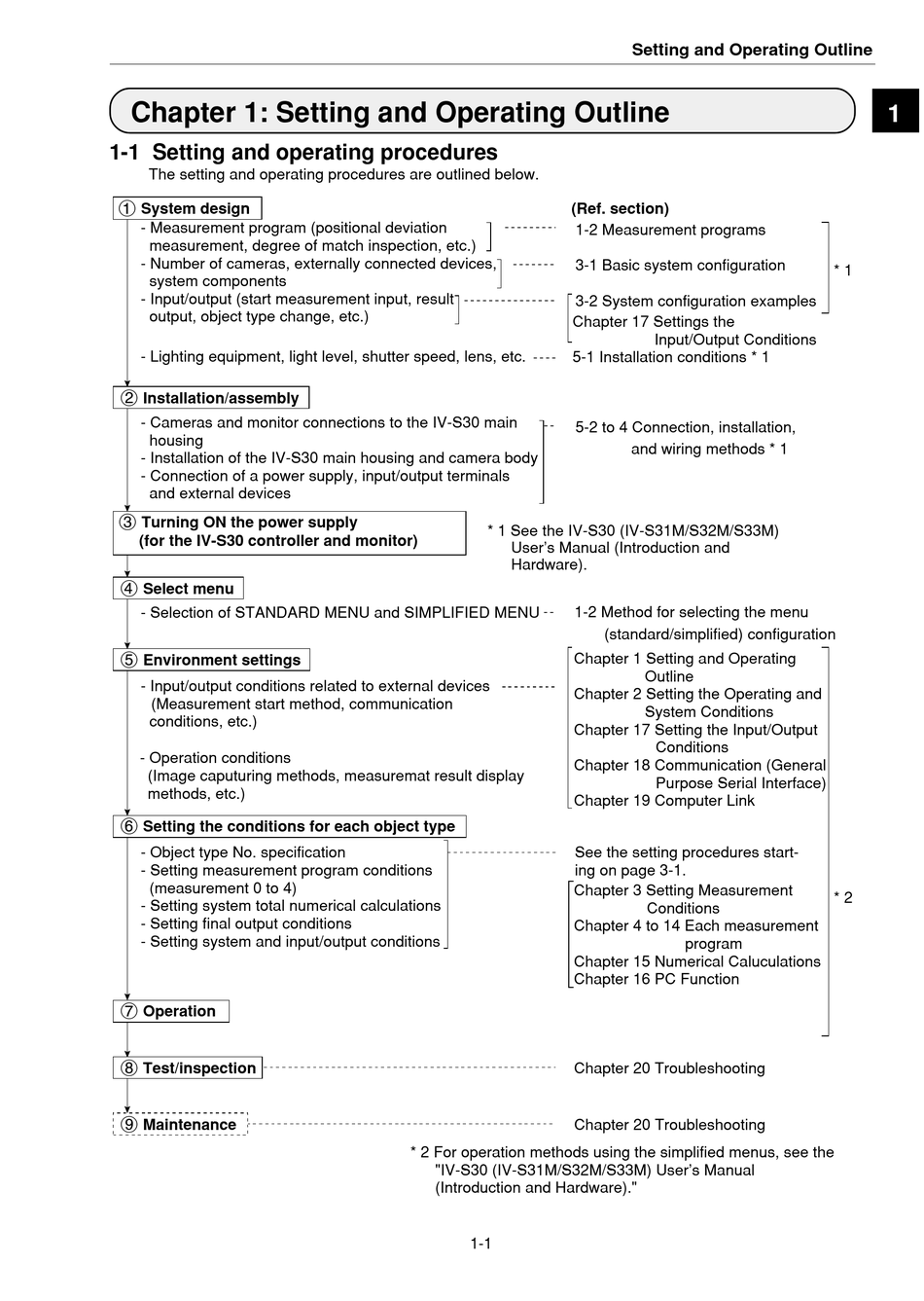

1-1 Setting and operating procedures

The setting and operating procedures are outlined below.
1 System design
- Measurement program (positional deviation
measurement, degree of match inspection, etc.)
- Number of cameras, externally connected devices,
system components
- Input/output (start measurement input, result
output, object type change, etc.)
- Lighting equipment, light level, shutter speed, lens, etc.
2 Installation/assembly
- Cameras and monitor connections to the IV-S30 main
housing
- Installation of the IV-S30 main housing and camera body
- Connection of a power supply, input/output terminals
and external devices
3 Turning ON the power supply
(for the IV-S30 controller and monitor)
4 Select menu
- Selection of STANDARD MENU and SIMPLIFIED MENU
5 Environment settings
- Input/output conditions related to external devices
(Measurement start method, communication
conditions, etc.)
- Operation conditions
(Image caputuring methods, measuremat result display
methods, etc.)
6 Setting the conditions for each object type
- Object type No. specification
- Setting measurement program conditions
(measurement 0 to 4)
- Setting system total numerical calculations
- Setting final output conditions
- Setting system and input/output conditions
7 Operation
8 Test/inspection
9 Maintenance
(Ref. section)
1-2 Measurement programs
3-1 Basic system configuration
3-2 System configuration examples
Chapter 17 Settings the
5-1 Installation conditions * 1
5-2 to 4 Connection, installation,
* 1 See the IV-S30 (IV-S31M/S32M/S33M)
User's Manual (Introduction and
Hardware).
1-2 Method for selecting the menu
Chapter 1 Setting and Operating
Chapter 2 Setting the Operating and
Chapter 17 Setting the Input/Output
Chapter 18 Communication (General
Chapter 19 Computer Link
See the setting procedures start-
ing on page 3-1.
Chapter 3 Setting Measurement
Chapter 4 to 14 Each measurement
Chapter 15 Numerical Caluculations
Chapter 16 PC Function
Chapter 20 Troubleshooting
Chapter 20 Troubleshooting
* 2 For operation methods using the simplified menus, see the
"IV-S30 (IV-S31M/S32M/S33M) User's Manual
(Introduction and Hardware)."
1-1
Setting and Operating Outline
Input/Output Conditions
and wiring methods * 1
(standard/simplified) configuration
Outline
System Conditions
Conditions
Purpose Serial Interface)
Conditions
program
1
* 1
