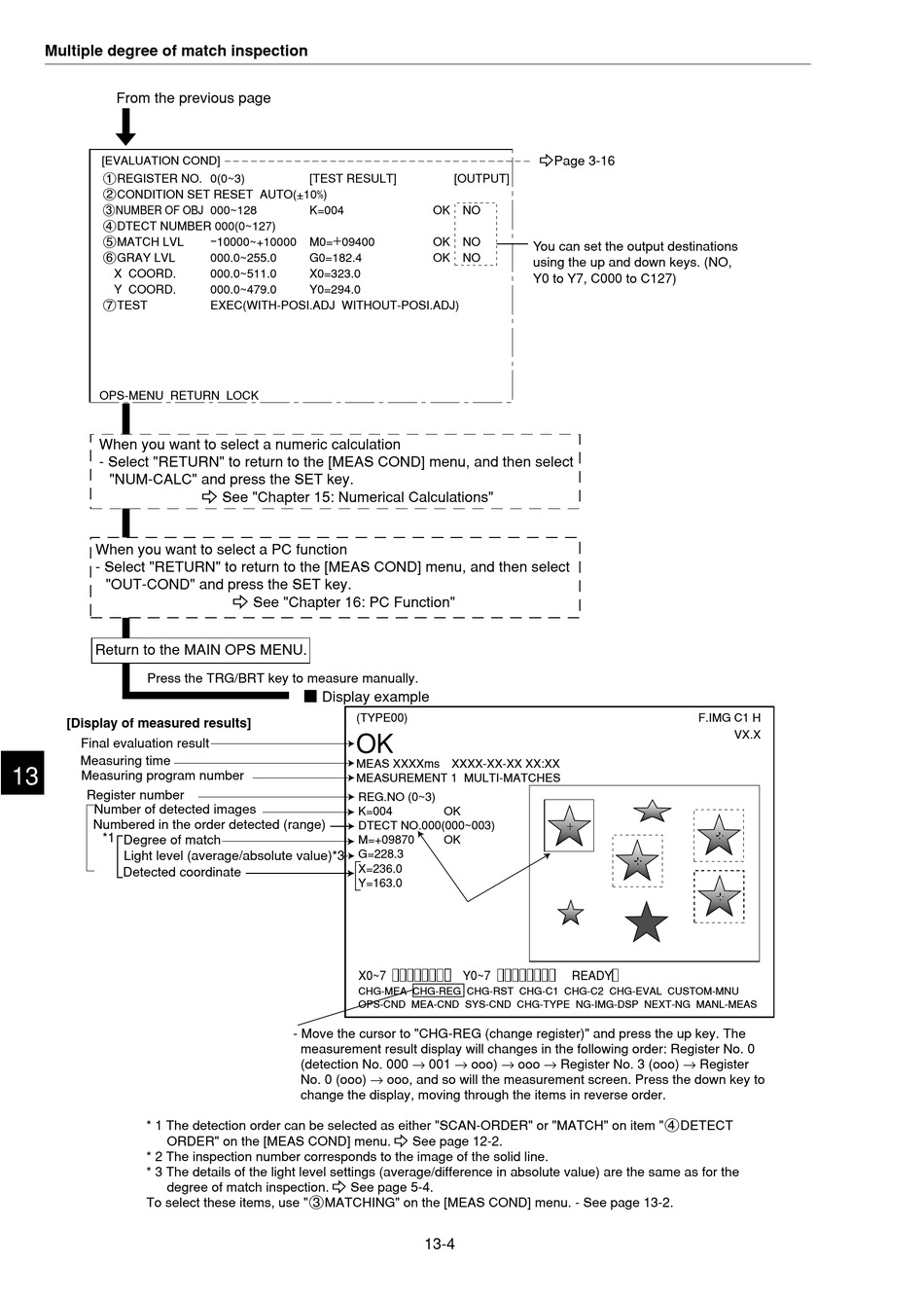

Multiple degree of match inspection
From the previous page
[EVALUATION COND]
1REGISTER NO. 0(0~3)
2CONDITION SET RESET AUTO(+10%)
3NUMBER OF OBJ 000~128
4DTECT NUMBER 000(0~127)
5MATCH LVL
1000 0~+10000
6GRAY LVL
000.0~255.0
X COORD.
000.0~511.0
Y COORD.
000.0~479.0
7TEST
EXEC(WITH-POSI.ADJ WITHOUT-POSI.ADJ)
OPS-MENU RETURN LOCK
When you want to select a numeric calculation
- Select "RETURN" to return to the [MEAS COND] menu, and then select
"NUM-CALC" and press the SET key.
- See "Chapter 15: Numerical Calculations"
When you want to select a PC function
- Select "RETURN" to return to the [MEAS COND] menu, and then select
"OUT-COND" and press the SET key.
Return to the MAIN OPS MENU.
Press the TRG/BRT key to measure manually.
[Display of measured results]
Final evaluation result
Measuring time
Measuring program number
Register number
Number of detected images
Numbered in the order detected (range)
*1 Degree of match
Light level (average/absolute value)*3
Detected coordinate
* 1 The detection order can be selected as either "SCAN-ORDER" or "MATCH" on item "4DETECT
ORDER" on the [MEAS COND] menu. - See page 12-2.
* 2 The inspection number corresponds to the image of the solid line.
* 3 The details of the light level settings (average/difference in absolute value) are the same as for the
degree of match inspection. - See page 5-4.
To select these items, use "3MATCHING" on the [MEAS COND] menu. - See page 13-2.
K=004
M0= 09400
G0=182.4
X0=323.0
Y0=294.0
- See "Chapter 16: PC Function"
(TYPE00)
OK
MEAS XXXXms XXXX-XX-XX XX:XX
MEASUREMENT 1 MULTI-MATCHES
REG.NO (0~3)
K=004
DTECT NO.000(000~003)
M=+09870
G=228.3
X=236.0
Y=163.0
X0~7
CHG-MEA CHG-REG CHG-RST CHG-C1 CHG-C2 CHG-EVAL CUSTOM-MNU
OPS-CND MEA-CND SYS-CND CHG-TYPE NG-IMG-DSP NEXT-NG MANL-MEAS
- Move the cursor to "CHG-REG (change register)" and press the up key. The
measurement result display will changes in the following order: Register No. 0
(detection No. 000 → 001 → ooo) → ooo → Register No. 3 (ooo) → Register
No. 0 (ooo) → ooo, and so will the measurement screen. Press the down key to
change the display, moving through the items in reverse order.
-Page 3-16
[OUTPUT]
OK
NO
OK
NO
You can set the output destinations
OK
NO
using the up and down keys. (NO,
Y0 to Y7, C000 to C127)
OK
OK
Y0~7
READY
13-4
F.IMG C1 H
VX.X
