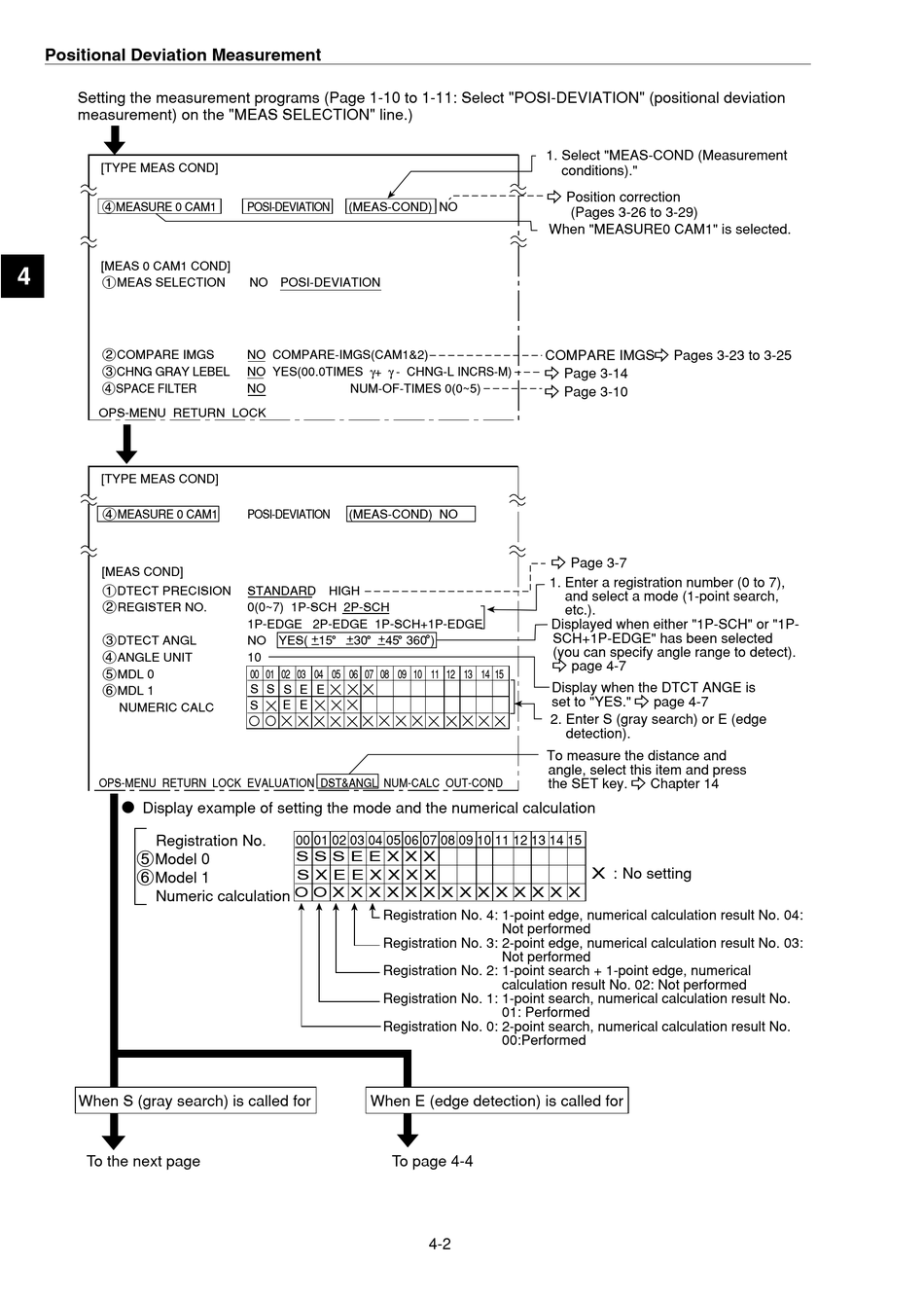

Positional Deviation Measurement
Setting the measurement programs (Page 1-10 to 1-11: Select "POSI-DEVIATION" (positional deviation
measurement) on the "MEAS SELECTION" line.)
[TYPE MEAS COND]
4MEASURE 0 CAM1
[MEAS 0 CAM1 COND]
4
1MEAS SELECTION
2COMPARE IMGS
3CHNG GRAY LEBEL
4SPACE FILTER
OPS-MENU RETURN LOCK
[TYPE MEAS COND]
4 MEASURE 0 CAM1
[MEAS COND]
1 DTECT PRECISION
2REGISTER NO.
3DTECT ANGL
4ANGLE UNIT
5MDL 0
6MDL 1
NUMERIC CALC
OPS-MENU RETURN LOCK EVALUATION DST&ANGL NUM-CALC OUT-COND
Æ Display example of setting the mode and the numerical calculation
Registration No.
5Model 0
6Model 1
Numeric calculation
When S (gray search) is called for
To the next page
POSI-DEVIATION
(MEAS-COND) NO
NO POSI-DEVIATION
NO COMPARE-IMGS(CAM1&2)
NO YES(00.0TIMES γ+ γ - CHNG-L INCRS-M)
NO
NUM-OF-TIMES 0(0~5)
POSI-DEVIATION
(MEAS-COND) NO
STANDARD HIGH
0(0~7) 1P-SCH 2P-SCH
1P-EDGE 2P-EDGE 1P-SCH+1P-EDGE
NO YES( + 15
+ 30 + 45 360 )
10
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
S
S S
E E
E E
S
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
S S S E E X X X
S X E E X X X X
O O X X X X X X X X X X X X X X
Registration No. 4: 1-point edge, numerical calculation result No. 04:
Registration No. 3: 2-point edge, numerical calculation result No. 03:
Registration No. 2: 1-point search + 1-point edge, numerical
Registration No. 1: 1-point search, numerical calculation result No.
Registration No. 0: 2-point search, numerical calculation result No.
When E (edge detection) is called for
To page 4-4
1. Select "MEAS-COND (Measurement
conditions)."
- Position correction
(Pages 3-26 to 3-29)
When "MEASURE0 CAM1" is selected.
COMPARE IMGS- Pages 3-23 to 3-25
- Page 3-14
- Page 3-10
- Page 3-7
1. Enter a registration number (0 to 7),
and select a mode (1-point search,
etc.).
Displayed when either "1P-SCH" or "1P-
SCH+1P-EDGE" has been selected
(you can specify angle range to detect).
- page 4-7
Display when the DTCT ANGE is
set to "YES." - page 4-7
2. Enter S (gray search) or E (edge
detection).
To measure the distance and
angle, select this item and press
the SET key. - Chapter 14
X : No setting
Not performed
Not performed
calculation result No. 02: Not performed
01: Performed
00:Performed
4-2
