Setting Measurement Conditions

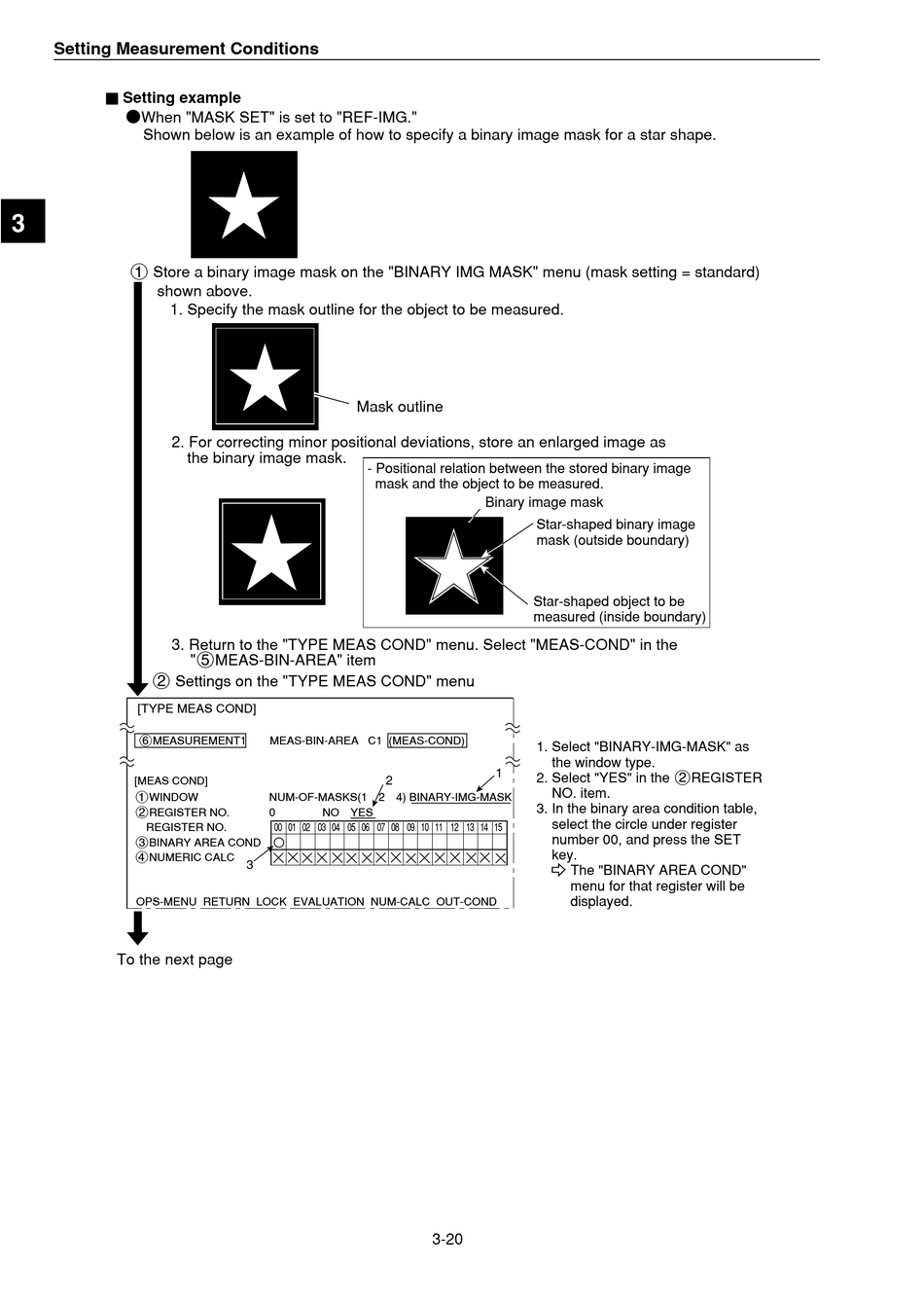

Ë Ë Ë Ë Ë Setting example
When "MASK SET" is set to "REF-IMG."
Shown below is an example of how to specify a binary image mask for a star shape.
3
1 Store a binary image mask on the "BINARY IMG MASK" menu (mask setting = standard)
shown above.
1. Specify the mask outline for the object to be measured.
2. For correcting minor positional deviations, store an enlarged image as
3. Return to the "TYPE MEAS COND" menu. Select "MEAS-COND" in the
2 Settings on the "TYPE MEAS COND" menu
[TYPE MEAS COND]
6MEASUREMENT1
MEAS COND]
1WINDOW
2REGISTER NO.
REGISTER NO.
3BINARY AREA COND
4NUMERIC CALC
OPS-MENU RETURN LOCK EVALUATION NUM-CALC OUT-COND
To the next page
Mask outline
the binary image mask.
"5MEAS-BIN-AREA" item
NUM-OF-MASKS(1 2 4) BINARY-IMG-MASK
0
NO YES
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
3
- Positional relation between the stored binary image
mask and the object to be measured.
Binary image mask
Star-shaped binary image
mask (outside boundary)
Star-shaped object to be
measured (inside boundary)
1. Select "BINARY-IMG-MASK" as
1
2. Select "YES" in the 2REGISTER
2
3. In the binary area condition table,
3-20
the window type.
NO. item.
select the circle under register
number 00, and press the SET
key.
- The "BINARY AREA COND"
menu for that register will be
displayed.
