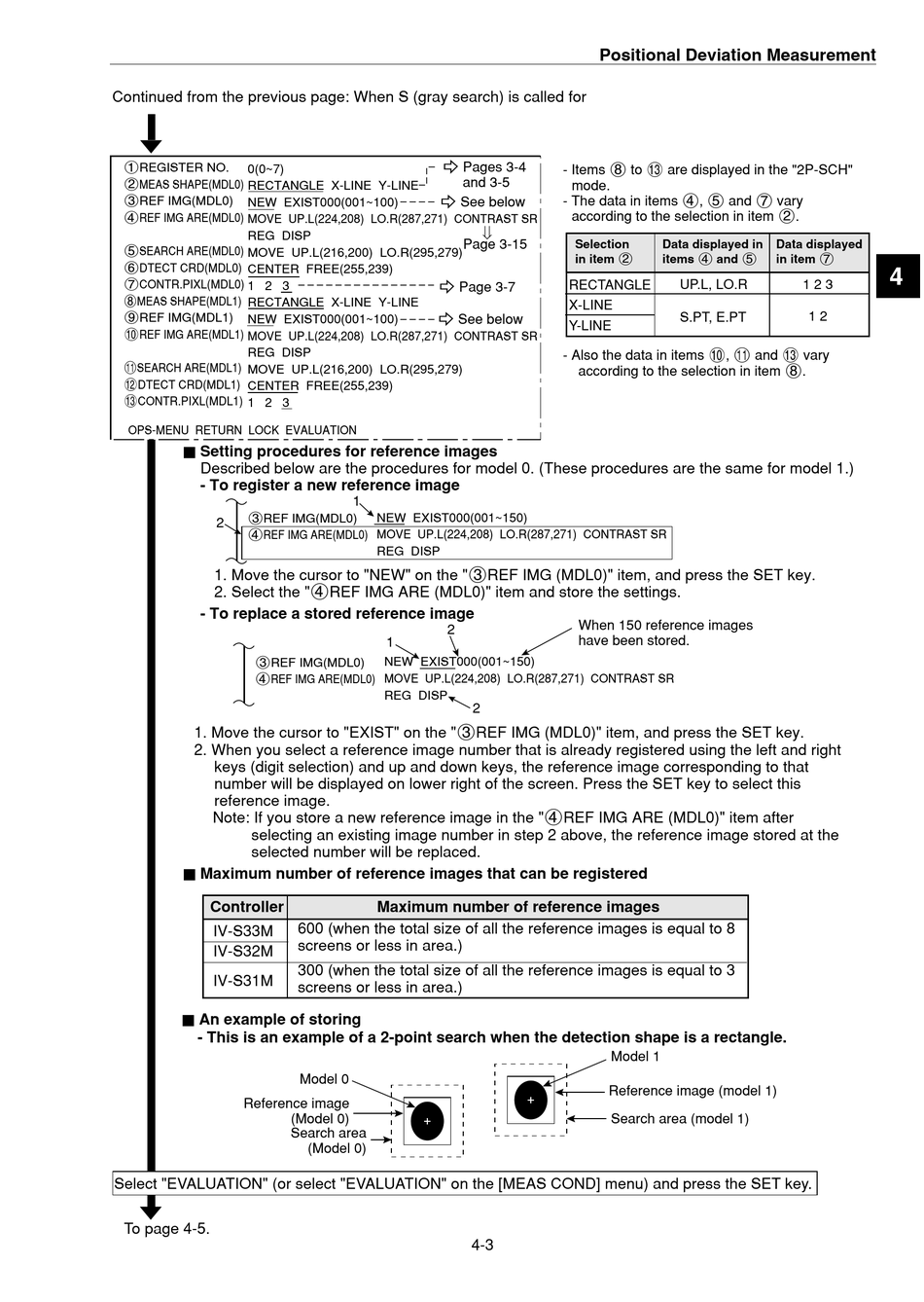

Continued from the previous page: When S (gray search) is called for
1REGISTER NO.
0(0~7)
2MEAS SHAPE(MDL0)
RECTANGLE X-LINE Y-LINE
3REF IMG(MDL0)
NEW EXIST000(001~100)
4REF IMG ARE(MDL0)
MOVE UP.L(224,208) LO.R(287,271) CONTRAST SR
REG DISP
5SEARCH ARE(MDL0)
MOVE UP.L(216,200) LO.R(295,279)
6DTECT CRD(MDL0)
CENTER FREE(255,239)
7CONTR.PIXL(MDL0)
1 2 3
8MEAS SHAPE(MDL1)
RECTANGLE X-LINE Y-LINE
9REF IMG(MDL1)
NEW EXIST000(001~100)
0REF IMG ARE(MDL1)
MOVE UP.L(224,208) LO.R(287,271) CONTRAST SR
REG DISP
qSEARCH ARE(MDL1)
MOVE UP.L(216,200) LO.R(295,279)
wDTECT CRD(MDL1)
CENTER FREE(255,239)
eCONTR.PIXL(MDL1)
1 2 3
OPS-MENU RETURN LOCK EVALUATION
Ë Setting procedures for reference images
Described below are the procedures for model 0. (These procedures are the same for model 1.)
- To register a new reference image
3REF IMG(MDL0)
2
4REF IMG ARE(MDL0)
1. Move the cursor to "NEW" on the "3REF IMG (MDL0)" item, and press the SET key.
2. Select the "4REF IMG ARE (MDL0)" item and store the settings.
- To replace a stored reference image
3REF IMG(MDL0)
4REF IMG ARE(MDL0)
1. Move the cursor to "EXIST" on the "3REF IMG (MDL0)" item, and press the SET key.
2. When you select a reference image number that is already registered using the left and right
keys (digit selection) and up and down keys, the reference image corresponding to that
number will be displayed on lower right of the screen. Press the SET key to select this
reference image.
Note: If you store a new reference image in the "4REF IMG ARE (MDL0)" item after
selecting an existing image number in step 2 above, the reference image stored at the
selected number will be replaced.
Ë Maximum number of reference images that can be registered
Controller
IV-S33M
IV-S32M
IV-S31M
Ë An example of storing
- This is an example of a 2-point search when the detection shape is a rectangle.
Reference image
Select "EVALUATION" (or select "EVALUATION" on the [MEAS COND] menu) and press the SET key.
To page 4-5.
- Pages 3-4
and 3-5
- See below
Page 3-15
- Page 3-7
- See below
1
NEW EXIST000(001~150)
MOVE UP.L(224,208) LO.R(287,271) CONTRAST SR
REG DISP
2
1
NEW EXIST000(001~150)
MOVE UP.L(224,208) LO.R(287,271) CONTRAST SR
REG DISP
Maximum number of reference images
600 (when the total size of all the reference images is equal to 8
screens or less in area.)
300 (when the total size of all the reference images is equal to 3
screens or less in area.)
Model 0
(Model 0)
Search area
(Model 0)
Positional Deviation Measurement
- Items 8 to e are displayed in the "2P-SCH"
mode.
- The data in items 4, 5 and 7 vary
according to the selection in item 2.
Selection
in item 2
RECTANGLE
X-LINE
Y-LINE
- Also the data in items 0, q and e vary
according to the selection in item 8.
When 150 reference images
have been stored.
2
Model 1
Reference image (model 1)
Search area (model 1)
4-3
Data displayed in
Data displayed
items 4 and 5
in item 7
UP.L, LO.R
1 2 3
1 2
S.PT, E.PT
4
