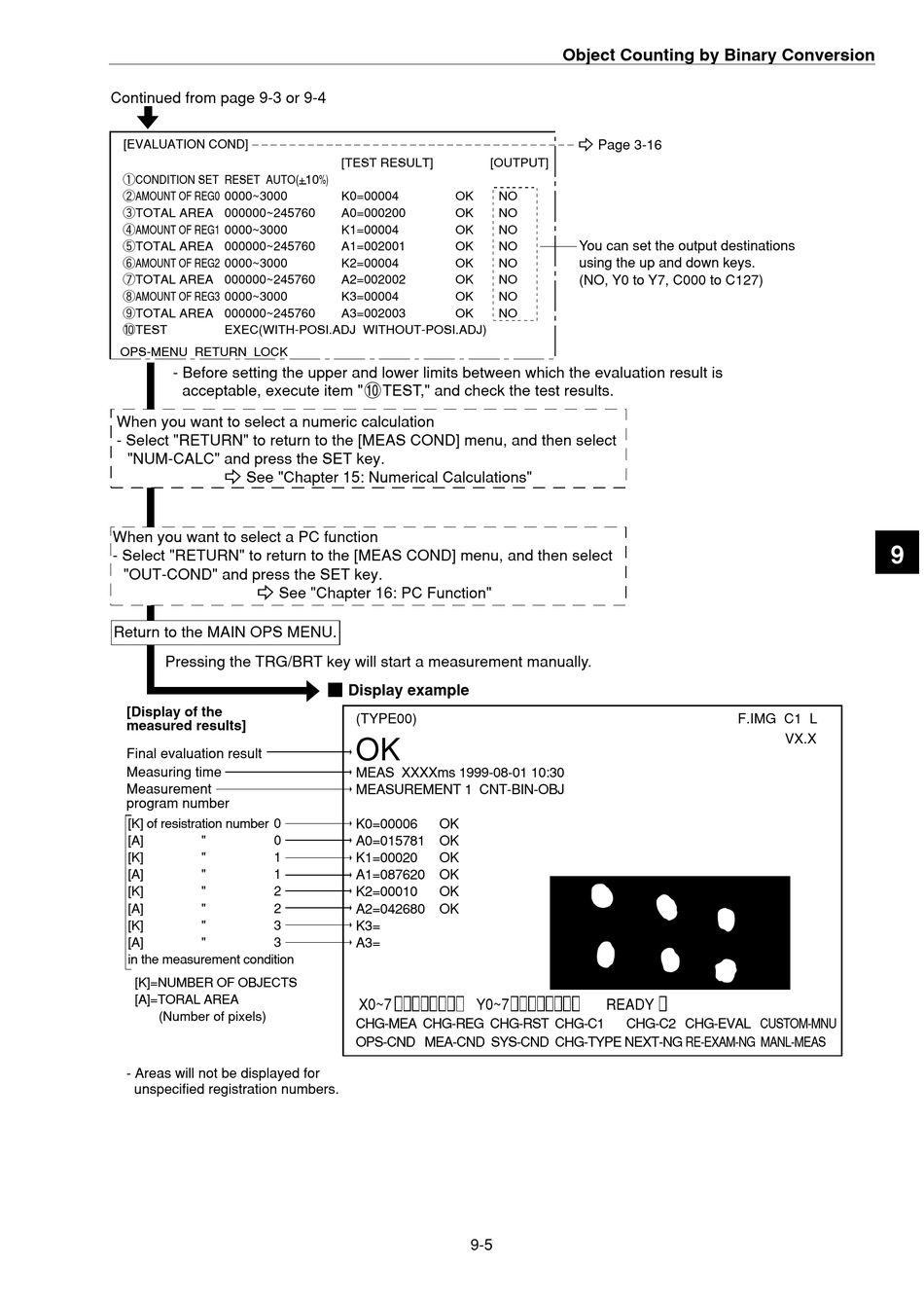

Continued from page 9-3 or 9-4
CONDITION SET RESET AUTO(+10%)
AMOUNT OF REG0 0000~3000
TOTAL AREA 000000~245760
AMOUNT OF REG1 0000~3000
TOTAL AREA 000000~245760
AMOUNT OF REG2 0000~3000
TOTAL AREA 000000~245760
AMOUNT OF REG3 0000~3000
TOTAL AREA 000000~245760
TEST
EXEC(WITH-POSI.ADJ WITHOUT-POSI.ADJ)
OPS-MENU RETURN LOCK
- Before setting the upper and lower limits between which the evaluation result is
acceptable, execute item "0TEST," and check the test results.
When you want to select a numeric calculation
- Select "RETURN" to return to the [MEAS COND] menu, and then select
"NUM-CALC" and press the SET key.
- See "Chapter 15: Numerical Calculations"
When you want to select a PC function
- Select "RETURN" to return to the [MEAS COND] menu, and then select
"OUT-COND" and press the SET key.
- See "Chapter 16: PC Function"
Return to the MAIN OPS MENU.
Pressing the TRG/BRT key will start a measurement manually.
[Display of the
measured results]
Final evaluation result
Measuring time
Measurement
program number
[K] of resistration number 0
[A]
"
0
[K]
"
1
[A]
"
1
[K]
"
2
[A]
"
2
[K]
"
3
[A]
"
3
in the measurement condition
[K]=NUMBER OF OBJECTS
[A]=TORAL AREA
(Number of pixels)
- Areas will not be displayed for
unspecified registration numbers.
[TEST RESULT]
[OUTPUT]
K0=00004
OK
NO
A0=000200
OK
NO
K1=00004
OK
NO
A1=002001
OK
NO
K2=00004
OK
NO
A2=002002
OK
NO
K3=00004
OK
NO
A3=002003
OK
NO
Display example
(TYPE00)
OK
MEAS XXXXms 1999-08-01 10:30
MEASUREMENT 1 CNT-BIN-OBJ
K0=00006
OK
A0=015781 OK
K1=00020
OK
A1=087620 OK
K2=00010
OK
A2=042680 OK
K3=
A3=
X0~7
Y0~7
CHG-MEA CHG-REG CHG-RST CHG-C1
OPS-CND MEA-CND SYS-CND CHG-TYPE NEXT-NG RE-EXAM-NG MANL-MEAS
9-5
Object Counting by Binary Conversion
- Page 3-16
You can set the output destinations
using the up and down keys.
(NO, Y0 to Y7, C000 to C127)
READY
CHG-C2 CHG-EVAL CUSTOM-MNU
