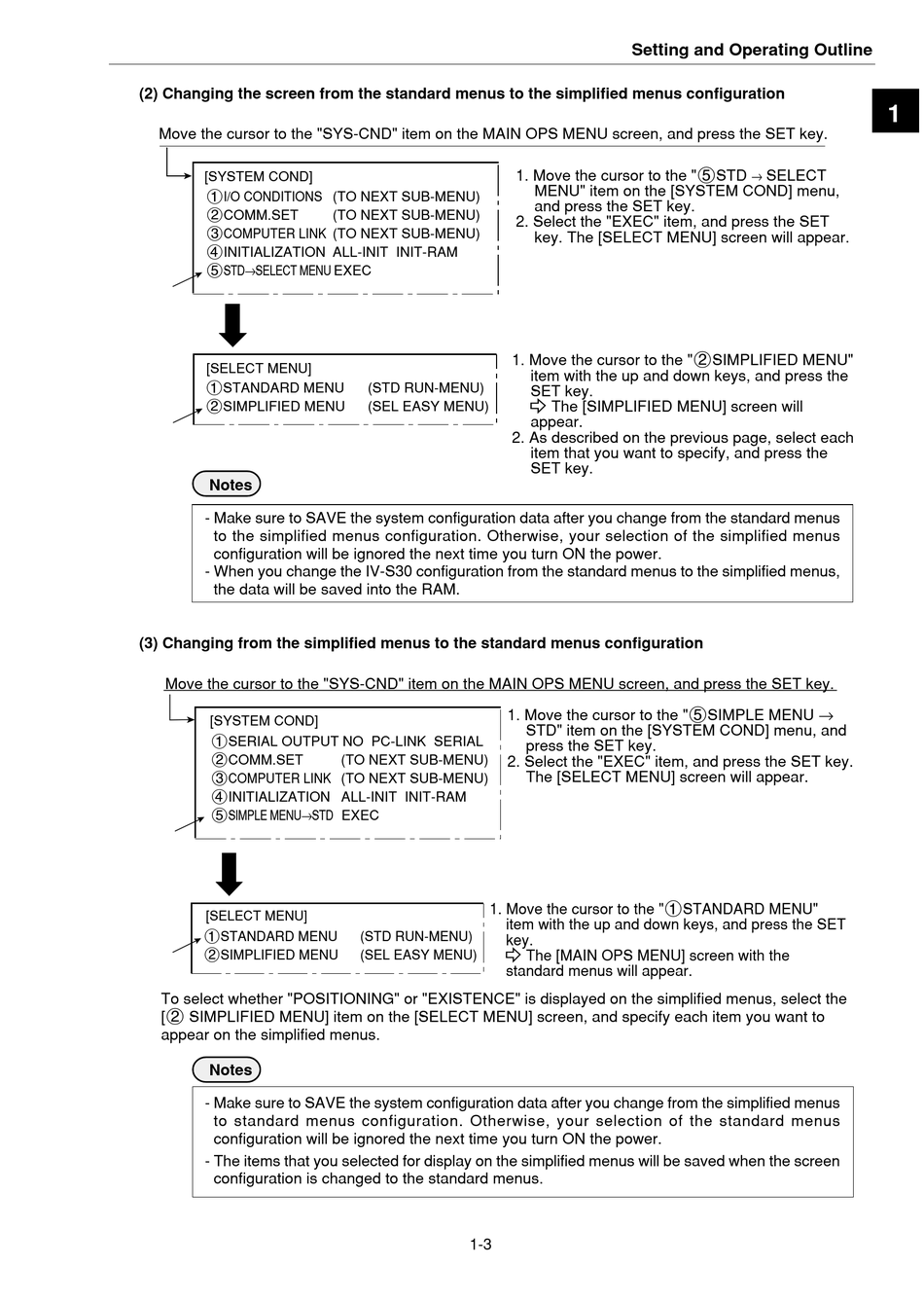

(2) Changing the screen from the standard menus to the simplified menus configuration

Move the cursor to the "SYS-CND" item on the MAIN OPS MENU screen, and press the SET key.
[SYSTEM COND]
1I/O CONDITIONS (TO NEXT SUB-MENU)
2COMM.SET
3COMPUTER LINK (TO NEXT SUB-MENU)
4INITIALIZATION ALL-INIT INIT-RAM
5STD→SELECT MENU
[SELECT MENU]
1STANDARD MENU
2SIMPLIFIED MENU
Notes
- Make sure to SAVE the system configuration data after you change from the standard menus
to the simplified menus configuration. Otherwise, your selection of the simplified menus
configuration will be ignored the next time you turn ON the power.
- When you change the IV-S30 configuration from the standard menus to the simplified menus,
the data will be saved into the RAM.

(3) Changing from the simplified menus to the standard menus configuration

Move the cursor to the "SYS-CND" item on the MAIN OPS MENU screen, and press the SET key.
[SYSTEM COND]
1SERIAL OUTPUT NO PC-LINK SERIAL
2COMM.SET
3COMPUTER LINK (TO NEXT SUB-MENU)
4INITIALIZATION ALL-INIT INIT-RAM
5SIMPLE MENU→STD EXEC
[SELECT MENU]
1STANDARD MENU
2SIMPLIFIED MENU
To select whether "POSITIONING" or "EXISTENCE" is displayed on the simplified menus, select the
[2 SIMPLIFIED MENU] item on the [SELECT MENU] screen, and specify each item you want to
appear on the simplified menus.
Notes
- Make sure to SAVE the system configuration data after you change from the simplified menus
to standard menus configuration. Otherwise, your selection of the standard menus
configuration will be ignored the next time you turn ON the power.
- The items that you selected for display on the simplified menus will be saved when the screen
configuration is changed to the standard menus.
(TO NEXT SUB-MENU)
(STD RUN-MENU)
(SEL EASY MENU)
(TO NEXT SUB-MENU)
1. Move the cursor to the "1STANDARD MENU"
item with the up and down keys, and press the SET
(STD RUN-MENU)
key.
- The [MAIN OPS MENU] screen with the
(SEL EASY MENU)
standard menus will appear.
1-3
Setting and Operating Outline
1. Move the cursor to the "5STD
MENU" item on the [SYSTEM COND] menu,
and press the SET key.
2. Select the "EXEC" item, and press the SET
key. The [SELECT MENU] screen will appear.
1. Move the cursor to the "2SIMPLIFIED MENU"
item with the up and down keys, and press the
SET key.
- The [SIMPLIFIED MENU] screen will
appear.
2. As described on the previous page, select each
item that you want to specify, and press the
SET key.
1. Move the cursor to the "5SIMPLE MENU →
STD" item on the [SYSTEM COND] menu, and
press the SET key.
2. Select the "EXEC" item, and press the SET key.
The [SELECT MENU] screen will appear.
1
SELECT
