Continued from the previous page

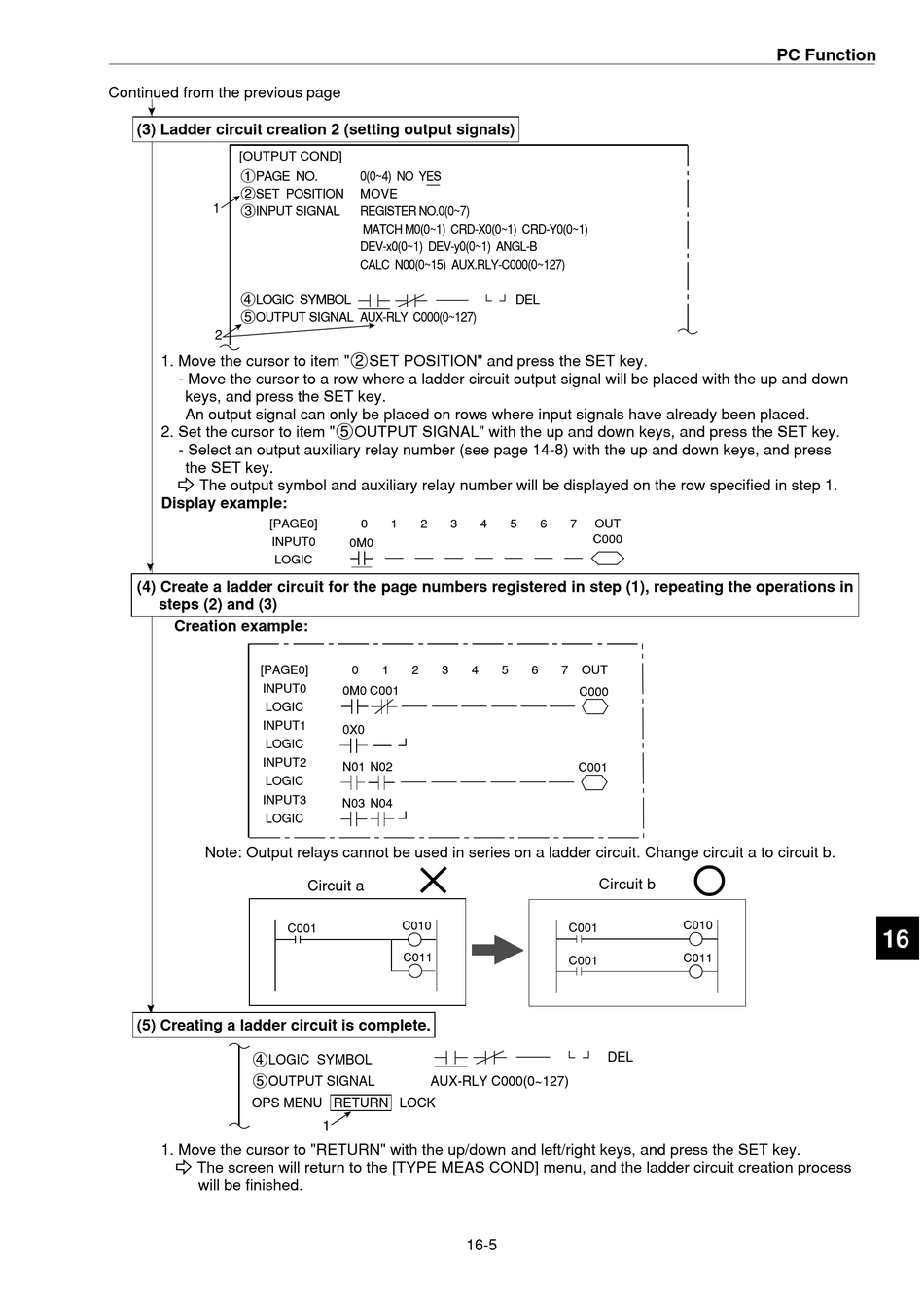

(3) Ladder circuit creation 2 (setting output signals)
[OUTPUT COND]
1PAGE NO.
2SET POSITION
1
3INPUT SIGNAL
4LOGIC SYMBOL
5OUTPUT SIGNAL AUX-RLY C000(0~127)
2
1. Move the cursor to item "2SET POSITION" and press the SET key.
- Move the cursor to a row where a ladder circuit output signal will be placed with the up and down
keys, and press the SET key.
An output signal can only be placed on rows where input signals have already been placed.
2. Set the cursor to item "5OUTPUT SIGNAL" with the up and down keys, and press the SET key.
- Select an output auxiliary relay number (see page 14-8) with the up and down keys, and press
the SET key.
- The output symbol and auxiliary relay number will be displayed on the row specified in step 1.
Display example:
[PAGE0]
INPUT0
LOGIC
(4) Create a ladder circuit for the page numbers registered in step (1), repeating the operations in
steps (2) and (3)
Creation example:
[PAGE0]
INPUT0
LOGIC
INPUT1
LOGIC
INPUT2
LOGIC
INPUT3
LOGIC
Note: Output relays cannot be used in series on a ladder circuit. Change circuit a to circuit b.
(5) Creating a ladder circuit is complete.
4LOGIC SYMBOL
5OUTPUT SIGNAL
OPS MENU RETURN LOCK
1. Move the cursor to "RETURN" with the up/down and left/right keys, and press the SET key.
- The screen will return to the [TYPE MEAS COND] menu, and the ladder circuit creation process
will be finished.
0(0~4) NO YES
MOVE
REGISTER NO.0(0~7)
MATCH M0(0~1) CRD-X0(0~1) CRD-Y0(0~1)
DEV-x0(0~1) DEV-y0(0~1) ANGL-B
CALC N00(0~15) AUX.RLY-C000(0~127)
0
1
2
3
0M0
0
1
2
3
0M0
C001
N01
N02
N03
N04
Circuit a
C010
C001
C011
AUX-RLY C000(0~127)
1
DEL
4
5
6
7
OUT
C000
4
5
6
7
OUT
C000
C001
Circuit b
C001
C001
DEL
16-5
PC Function
C010
C011
16
