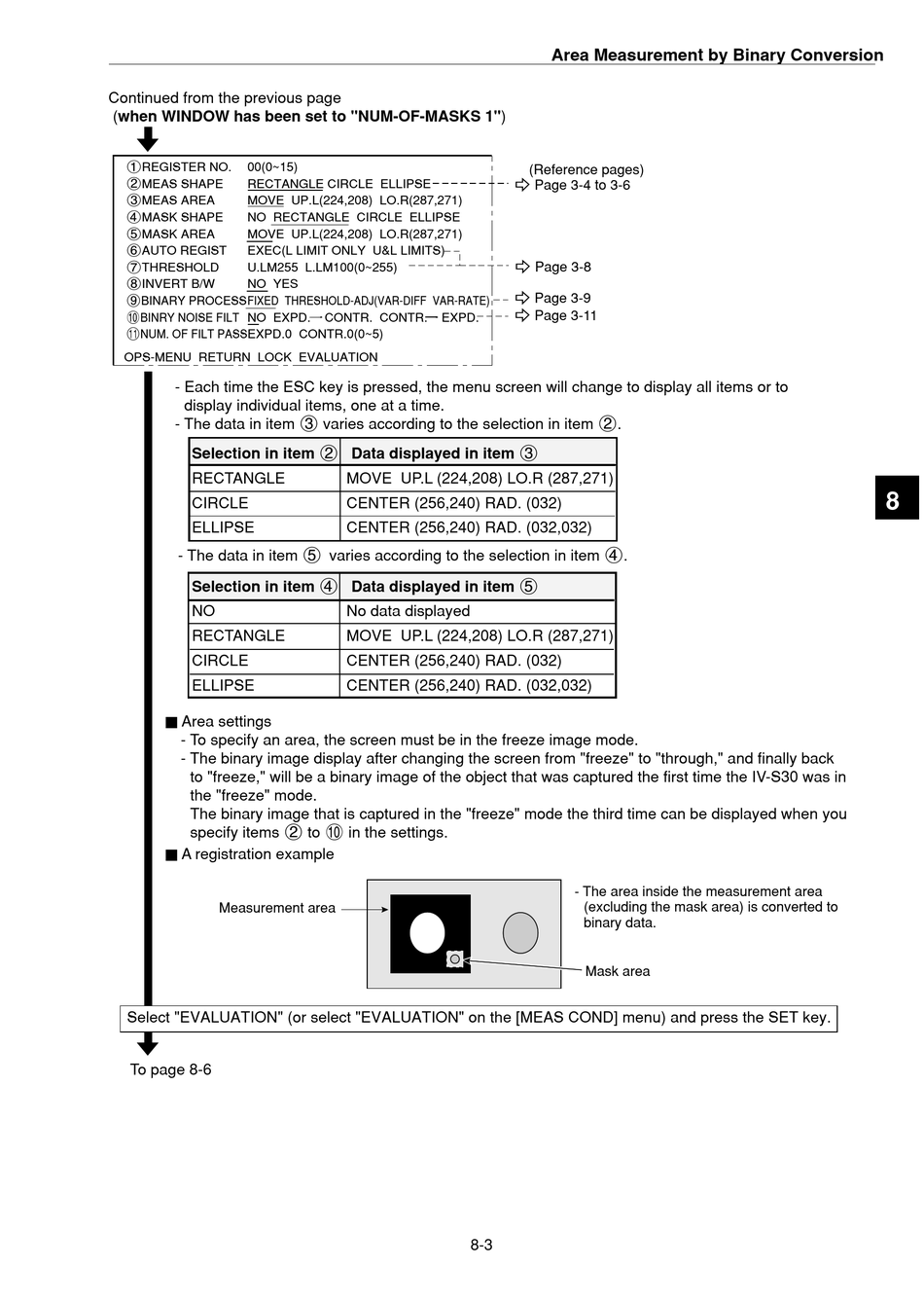

Continued from the previous page
(when WINDOW has been set to "NUM-OF-MASKS 1")
1REGISTER NO.
00(0~15)
2MEAS SHAPE
RECTANGLE CIRCLE ELLIPSE
3MEAS AREA
MOVE UP.L(224,208) LO.R(287,271)
4MASK SHAPE
NO RECTANGLE CIRCLE ELLIPSE
5MASK AREA
MOVE UP.L(224,208) LO.R(287,271)
6AUTO REGIST
EXEC(L LIMIT ONLY U&L LIMITS)
7THRESHOLD
U.LM255 L.LM100(0~255)
8INVERT B/W
9BINARY PROCESS
FIXED THRESHOLD-ADJ(VAR-DIFF VAR-RATE)
0BINRY NOISE FILT
NO EXPD.
qNUM. OF FILT PASS
EXPD.0 CONTR.0(0~5)
OPS-MENU RETURN LOCK EVALUATION
- Each time the ESC key is pressed, the menu screen will change to display all items or to
display individual items, one at a time.
- The data in item 3 varies according to the selection in item 2.
Selection in item 2 Data displayed in item 3
RECTANGLE
CIRCLE
ELLIPSE
- The data in item 5 varies according to the selection in item 4.
Selection in item 4 Data displayed in item 5
NO
RECTANGLE
CIRCLE
ELLIPSE
Ë Area settings
- To specify an area, the screen must be in the freeze image mode.
- The binary image display after changing the screen from "freeze" to "through," and finally back
to "freeze," will be a binary image of the object that was captured the first time the IV-S30 was in
the "freeze" mode.
The binary image that is captured in the "freeze" mode the third time can be displayed when you
specify items 2 to 0 in the settings.
Ë A registration example
Measurement area
Select "EVALUATION" (or select "EVALUATION" on the [MEAS COND] menu) and press the SET key.
To page 8-6
CONTR. CONTR.
EXPD.
MOVE UP.L (224,208) LO.R (287,271)
CENTER (256,240) RAD. (032)
CENTER (256,240) RAD. (032,032)
No data displayed
MOVE UP.L (224,208) LO.R (287,271)
CENTER (256,240) RAD. (032)
CENTER (256,240) RAD. (032,032)
8-3
Area Measurement by Binary Conversion
(Reference pages)
- Page 3-4 to 3-6
- Page 3-8
- Page 3-9
- Page 3-11
- The area inside the measurement area
(excluding the mask area) is converted to
binary data.
Mask area
8
