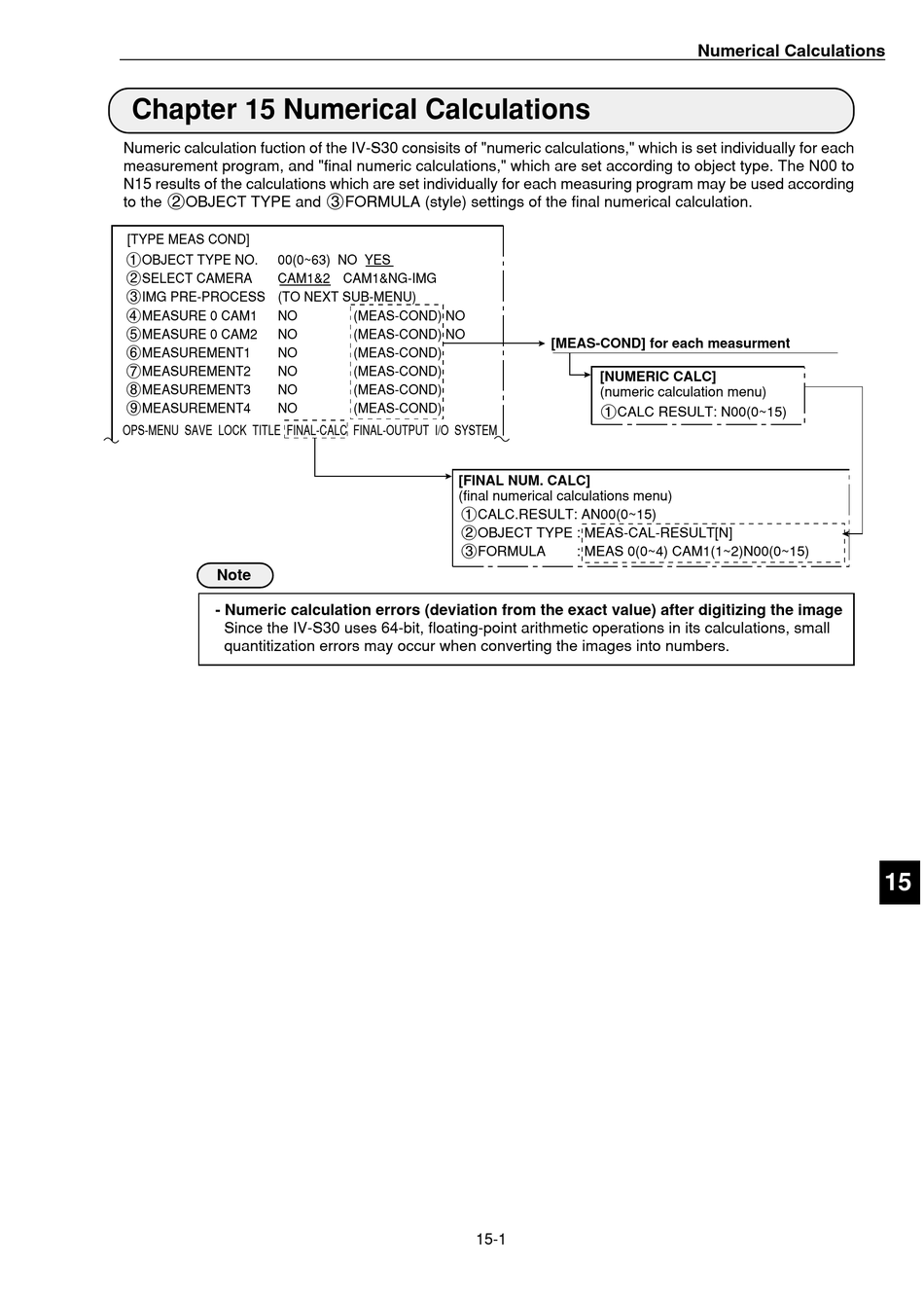

Chapter 15 Numerical Calculations

Numeric calculation fuction of the IV-S30 consisits of "numeric calculations," which is set individually for each
measurement program, and "final numeric calculations," which are set according to object type. The N00 to
N15 results of the calculations which are set individually for each measuring program may be used according
to the 2OBJECT TYPE and 3FORMULA (style) settings of the final numerical calculation.
[TYPE MEAS COND]
1OBJECT TYPE NO.
00(0~63) NO YES
2SELECT CAMERA
CAM1&2 CAM1&NG-IMG
3IMG PRE-PROCESS (TO NEXT SUB-MENU)
4MEASURE 0 CAM1
NO
5MEASURE 0 CAM2
NO
6MEASUREMENT1
NO
7MEASUREMENT2
NO
8MEASUREMENT3
NO
9MEASUREMENT4
NO
OPS-MENU SAVE LOCK TITLE FINAL-CALC FINAL-OUTPUT I/O SYSTEM
Note
- Numeric calculation errors (deviation from the exact value) after digitizing the image
Since the IV-S30 uses 64-bit, floating-point arithmetic operations in its calculations, small
quantitization errors may occur when converting the images into numbers.
(MEAS-COND) NO
(MEAS-COND) NO
(MEAS-COND)
(MEAS-COND)
(MEAS-COND)
(MEAS-COND)
[FINAL NUM. CALC]
(final numerical calculations menu)
1CALC.RESULT: AN00(0~15)
2OBJECT TYPE : MEAS-CAL-RESULT[N]
3FORMULA
15-1
Numerical Calculations
[MEAS-COND] for each measurment
