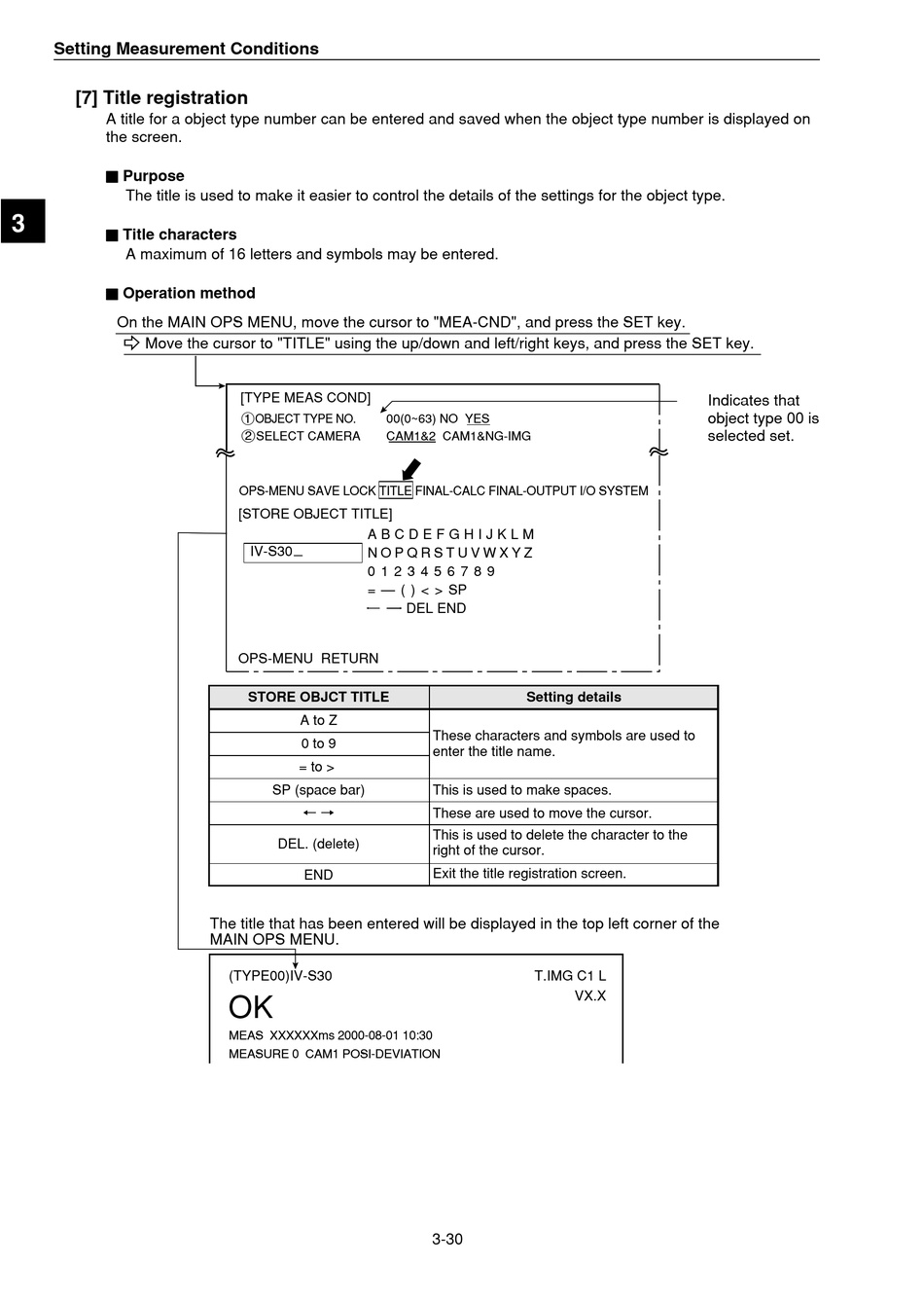

[7] Title registration

A title for a object type number can be entered and saved when the object type number is displayed on
the screen.
Ë Ë Ë Ë Ë Purpose
The title is used to make it easier to control the details of the settings for the object type.
3
Ë Ë Ë Ë Ë Title characters
A maximum of 16 letters and symbols may be entered.
Ë Ë Ë Ë Ë Operation method
On the MAIN OPS MENU, move the cursor to "MEA-CND", and press the SET key.
- Move the cursor to "TITLE" using the up/down and left/right keys, and press the SET key.
[TYPE MEAS COND]
1OBJECT TYPE NO.
2SELECT CAMERA
OPS-MENU SAVE LOCK TITLE FINAL-CALC FINAL-OUTPUT I/O SYSTEM
[STORE OBJECT TITLE]
A B C D E F G H I J K L M
IV-S30
N O P Q R S T U V W X Y Z
0 1 2 3 4 5 6 7 8 9
= — ( ) < > SP
OPS-MENU RETURN
STORE OBJCT TITLE
A to Z
0 to 9
= to >
SP (space bar)
DEL. (delete)
END
The title that has been entered will be displayed in the top left corner of the
MAIN OPS MENU.
(TYPE00)IV-S30
OK
MEAS XXXXXXms 2000-08-01 10:30
MEASURE 0 CAM1 POSI-DEVIATION
00(0~63) NO YES
CAM1&2 CAM1&NG-IMG
DEL END
Setting details
These characters and symbols are used to
enter the title name.
This is used to make spaces.
These are used to move the cursor.
This is used to delete the character to the
right of the cursor.
Exit the title registration screen.
T.IMG C1 L
3-30
Indicates that
object type 00 is
selected set.
VX.X
