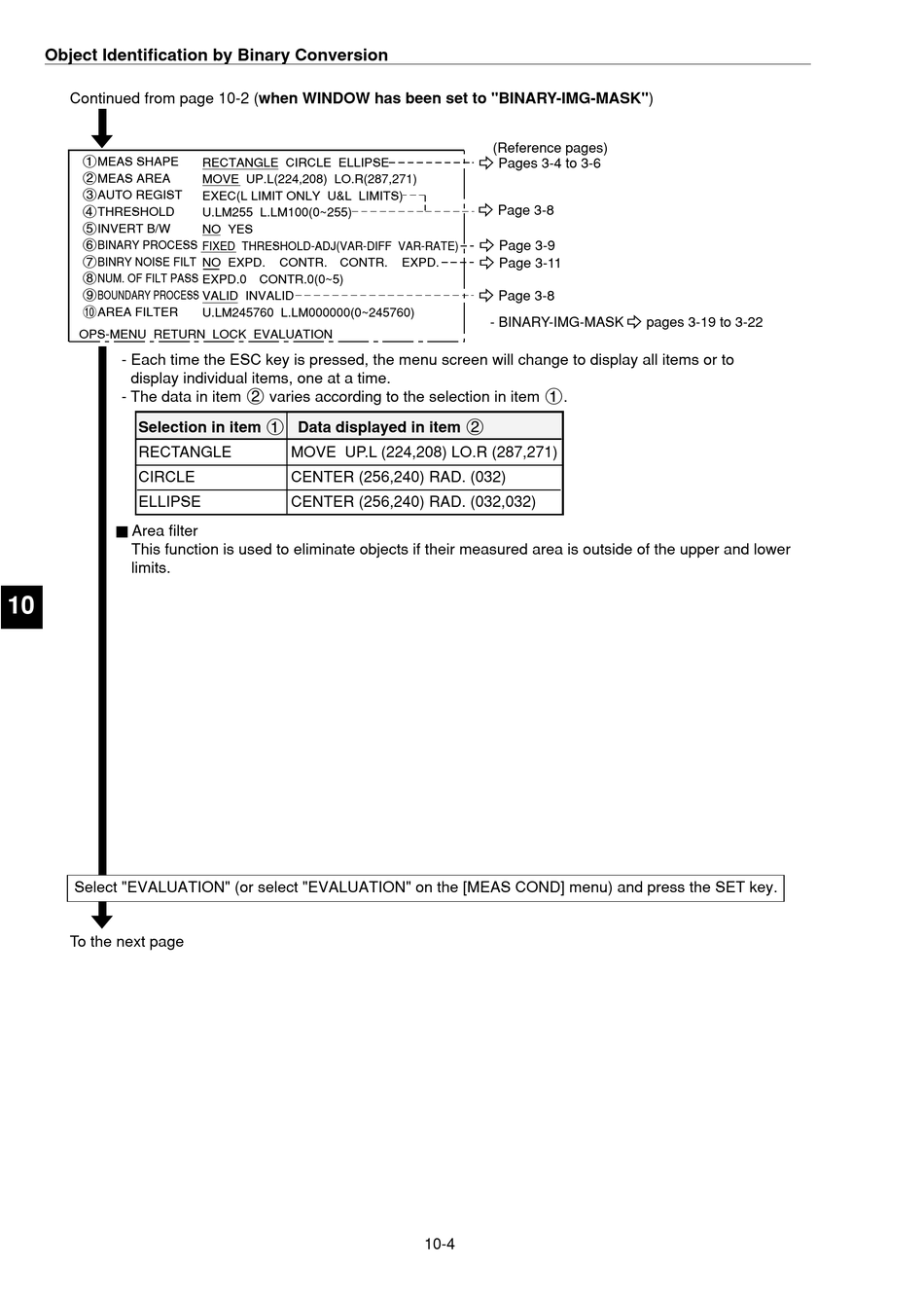

Object Identification by Binary Conversion
Continued from page 10-2 (when WINDOW has been set to "BINARY-IMG-MASK")
1MEAS SHAPE
2MEAS AREA
3AUTO REGIST
4THRESHOLD
5INVERT B/W
6BINARY PROCESS
7BINRY NOISE FILT
8NUM. OF FILT PASS
9BOUNDARY PROCESS
0AREA FILTER
OPS-MENU RETURN LOCK EVALUATION
- Each time the ESC key is pressed, the menu screen will change to display all items or to
display individual items, one at a time.
- The data in item 2 varies according to the selection in item 1.
Selection in item 1 Data displayed in item 2
RECTANGLE
CIRCLE
ELLIPSE
Ë Area filter
This function is used to eliminate objects if their measured area is outside of the upper and lower
limits.
10
Select "EVALUATION" (or select "EVALUATION" on the [MEAS COND] menu) and press the SET key.
To the next page
RECTANGLE CIRCLE ELLIPSE
MOVE UP.L(224,208) LO.R(287,271)
EXEC(L LIMIT ONLY U&L LIMITS)
U.LM255 L.LM100(0~255)
NO YES
FIXED THRESHOLD-ADJ(VAR-DIFF VAR-RATE)
NO EXPD.
CONTR. CONTR.
EXPD.0 CONTR.0(0~5)
VALID INVALID
U.LM245760 L.LM000000(0~245760)
MOVE UP.L (224,208) LO.R (287,271)
CENTER (256,240) RAD. (032)
CENTER (256,240) RAD. (032,032)
(Reference pages)
- Pages 3-4 to 3-6
- Page 3-8
- Page 3-9
- Page 3-11
EXPD.
- Page 3-8
- BINARY-IMG-MASK - pages 3-19 to 3-22
10-4
