Sharp IV-S30 User Manual page 149

Compact image sensor camera function and operation
Hide thumbs

Advertisement

Table of Contents
From page 12-3, previous page

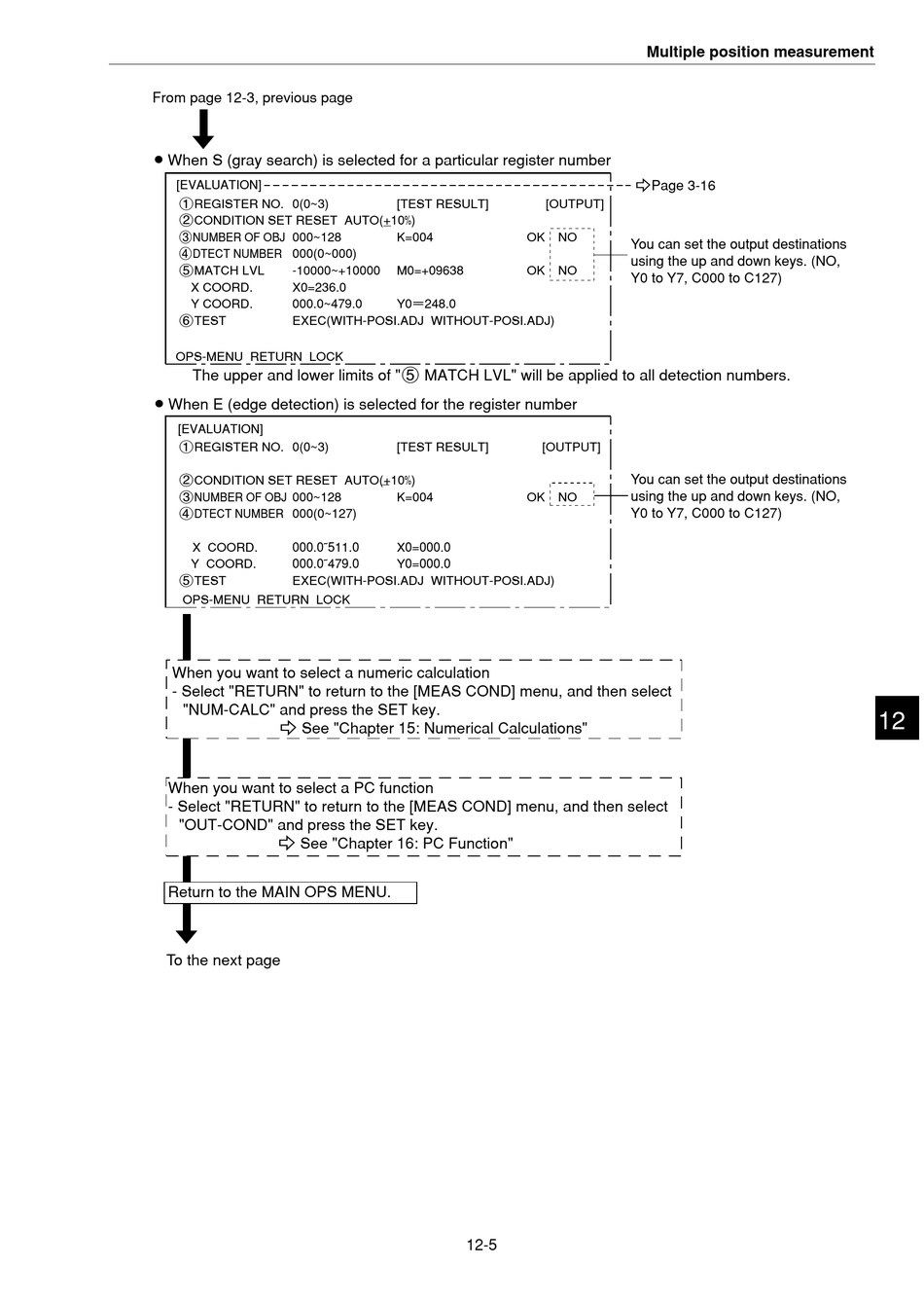

» When S (gray search) is selected for a particular register number
[EVALUATION]
1REGISTER NO. 0(0~3)
2CONDITION SET RESET AUTO(+10%)
3NUMBER OF OBJ 000~128
4DTECT NUMBER 000(0~000)
5MATCH LVL
- 1000 0~+10000
X COORD.
X0=236.0
Y COORD.
000.0~479.0
6TEST
EXEC(WITH-POSI.ADJ WITHOUT-POSI.ADJ)
OPS-MENU RETURN LOCK
The upper and lower limits of "5 MATCH LVL" will be applied to all detection numbers.
» When E (edge detection) is selected for the register number
[EVALUATION]
1REGISTER NO. 0(0~3)
2CONDITION SET RESET AUTO(+10%)
3NUMBER OF OBJ 000~128
4DTECT NUMBER 000(0~127)
5TEST
EXEC(WITH-POSI.ADJ WITHOUT-POSI.ADJ)
OPS-MENU RETURN LOCK
When you want to select a numeric calculation
- Select "RETURN" to return to the [MEAS COND] menu, and then select
"NUM-CALC" and press the SET key.
- See "Chapter 15: Numerical Calculations"
When you want to select a PC function
- Select "RETURN" to return to the [MEAS COND] menu, and then select
"OUT-COND" and press the SET key.
- See "Chapter 16: PC Function"
Return to the MAIN OPS MENU.
To the next page
[TEST RESULT]
[OUTPUT]
K=004
OK
NO
M0=+09638
OK
NO
Y0 248.0
[TEST RESULT]
[OUTPUT]
K=004
OK
NO
=
=
12-5
Multiple position measurement
-Page 3-16
You can set the output destinations
using the up and down keys. (NO,
Y0 to Y7, C000 to C127)
You can set the output destinations
using the up and down keys. (NO,
Y0 to Y7, C000 to C127)
