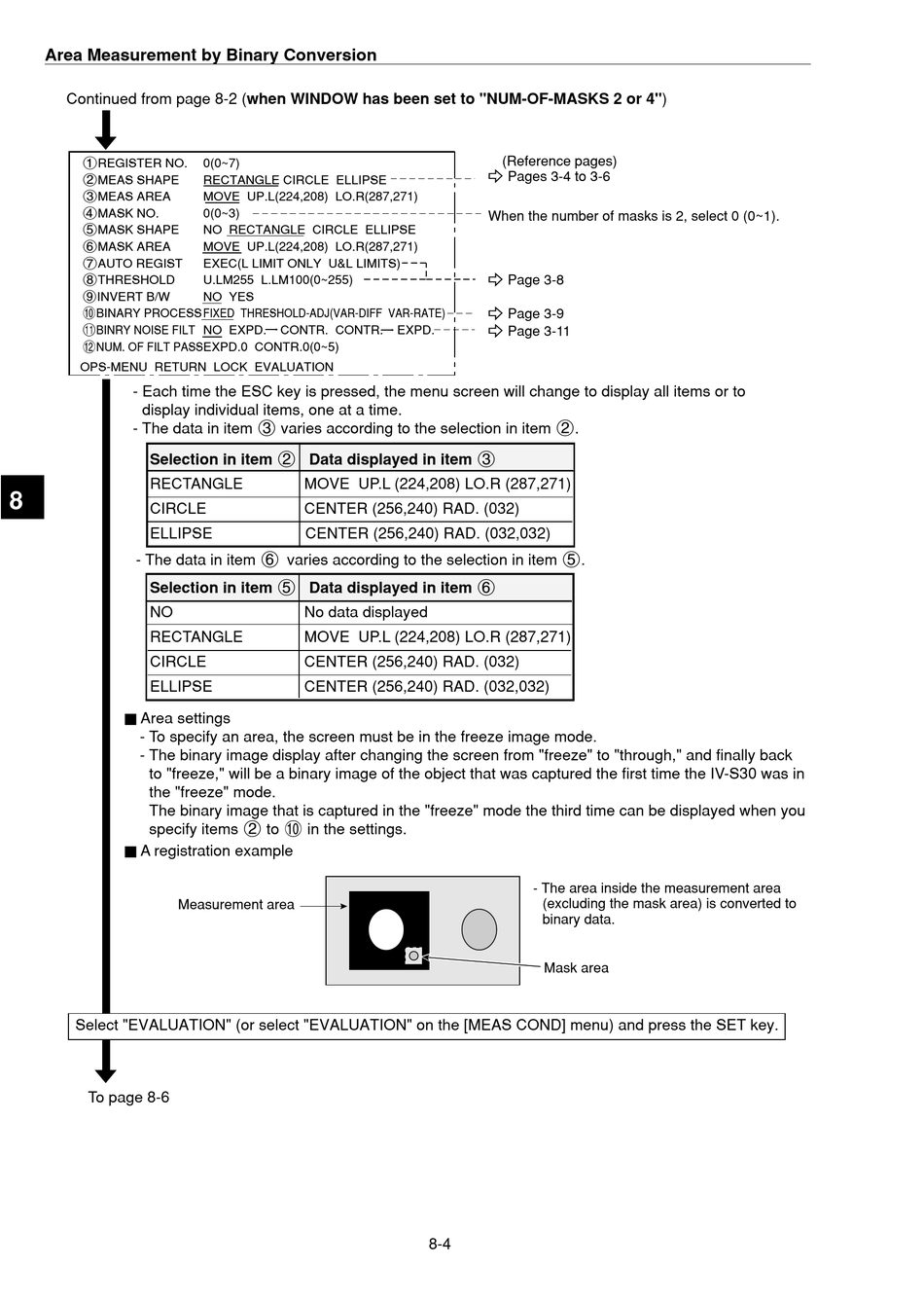

Area Measurement by Binary Conversion
Continued from page 8-2 (when WINDOW has been set to "NUM-OF-MASKS 2 or 4")
1REGISTER NO.
2MEAS SHAPE
3MEAS AREA
4MASK NO.
5MASK SHAPE
6MASK AREA
7AUTO REGIST
8THRESHOLD
9INVERT B/W
0BINARY PROCESS
qBINRY NOISE FILT
wNUM. OF FILT PASS
OPS-MENU RETURN LOCK EVALUATION
- Each time the ESC key is pressed, the menu screen will change to display all items or to
display individual items, one at a time.
- The data in item 3 varies according to the selection in item 2.
Selection in item 2 Data displayed in item 3
RECTANGLE
8
CIRCLE
ELLIPSE
- The data in item 6 varies according to the selection in item 5.
Selection in item 5 Data displayed in item 6
NO
RECTANGLE
CIRCLE
ELLIPSE
Ë Area settings
- To specify an area, the screen must be in the freeze image mode.
- The binary image display after changing the screen from "freeze" to "through," and finally back
to "freeze," will be a binary image of the object that was captured the first time the IV-S30 was in
the "freeze" mode.
The binary image that is captured in the "freeze" mode the third time can be displayed when you
specify items 2 to 0 in the settings.
Ë A registration example
Measurement area
Select "EVALUATION" (or select "EVALUATION" on the [MEAS COND] menu) and press the SET key.
To page 8-6
0(0~7)
RECTANGLE CIRCLE ELLIPSE
MOVE UP.L(224,208) LO.R(287,271)
0(0~3)
NO RECTANGLE CIRCLE ELLIPSE
MOVE UP.L(224,208) LO.R(287,271)
EXEC(L LIMIT ONLY U&L LIMITS)
U.LM255 L.LM100(0~255)
NO YES
FIXED THRESHOLD-ADJ(VAR-DIFF VAR-RATE)
NO EXPD.
CONTR. CONTR.
EXPD.0 CONTR.0(0~5)
MOVE UP.L (224,208) LO.R (287,271)
CENTER (256,240) RAD. (032)
CENTER (256,240) RAD. (032,032)
No data displayed
MOVE UP.L (224,208) LO.R (287,271)
CENTER (256,240) RAD. (032)
CENTER (256,240) RAD. (032,032)
(Reference pages)
- Pages 3-4 to 3-6
When the number of masks is 2, select 0 (0~1).
- Page 3-8
- Page 3-9
- Page 3-11
EXPD.
- The area inside the measurement area
(excluding the mask area) is converted to
binary data.
Mask area
8-4
