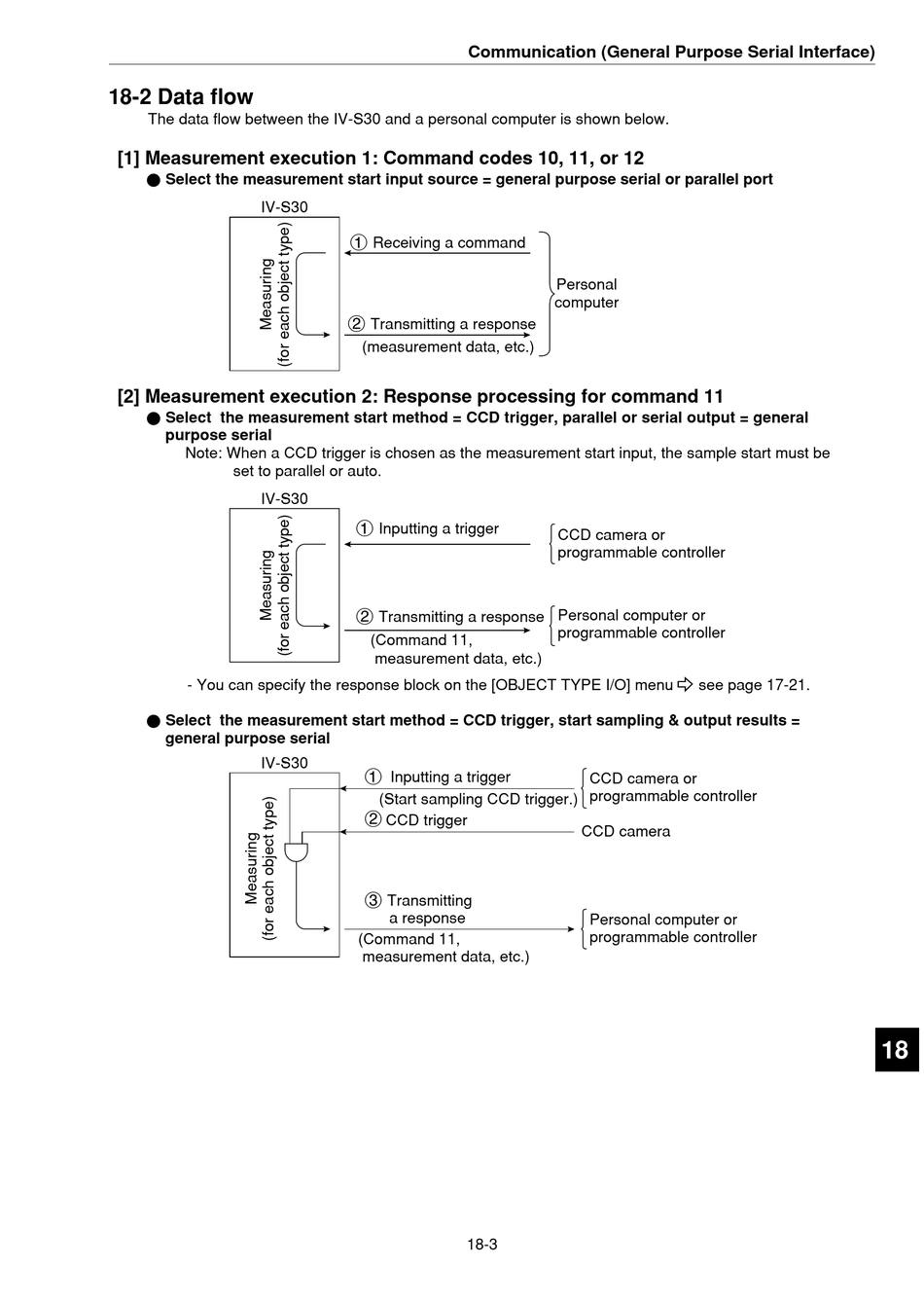

18-2 Data flow

The data flow between the IV-S30 and a personal computer is shown below.

[1] Measurement execution 1: Command codes 10, 11, or 12

æ
Select the measurement start input source = general purpose serial or parallel port
IV-S30

[2] Measurement execution 2: Response processing for command 11

æ
Select the measurement start method = CCD trigger, parallel or serial output = general
purpose serial
Note: When a CCD trigger is chosen as the measurement start input, the sample start must be
set to parallel or auto.
IV-S30
- You can specify the response block on the [OBJECT TYPE I/O] menu - see page 17-21.
æ
Select the measurement start method = CCD trigger, start sampling & output results =
general purpose serial
IV-S30
Communication (General Purpose Serial Interface)
1 Receiving a command
2 Transmitting a response
(measurement data, etc.)
1 Inputting a trigger
2 Transmitting a response
(Command 11,
measurement data, etc.)
1 Inputting a trigger
(Start sampling CCD trigger.)
2 CCD trigger
3 Transmitting
a response
(Command 11,
measurement data, etc.)
18-3
Personal
computer
CCD camera or
programmable controller
Personal computer or
programmable controller
CCD camera or
programmable controller
CCD camera
Personal computer or
programmable controller
18
