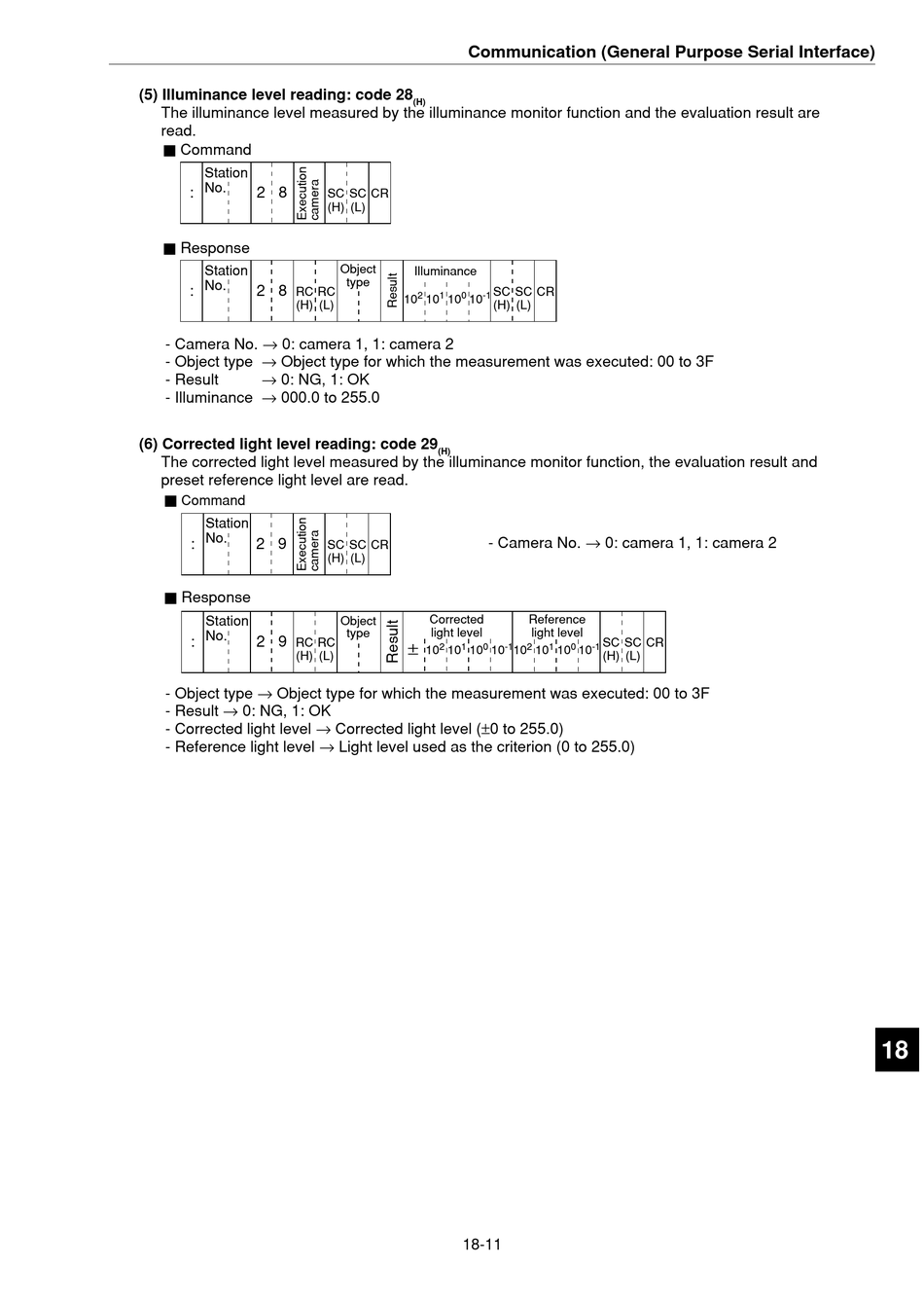

(5) Illuminance level reading: code 28
The illuminance level measured by the illuminance monitor function and the evaluation result are
read.
Ë Command
Station
No.
:
2 8
Ë Response
Station
No.
:
2 8
RC
(H)
- Camera No. → 0: camera 1, 1: camera 2
- Object type → Object type for which the measurement was executed: 00 to 3F
→ 0: NG, 1: OK
- Result
- Illuminance → 000.0 to 255.0
(6) Corrected light level reading: code 29
The corrected light level measured by the illuminance monitor function, the evaluation result and
preset reference light level are read.
Ë
Command
Station
No.
:
2 9
Ë Response
Station
No.
:
2 9
RC
(H)
- Object type → Object type for which the measurement was executed: 00 to 3F
- Result → 0: NG, 1: OK
- Corrected light level → Corrected light level (±0 to 255.0)
- Reference light level → Light level used as the criterion (0 to 255.0)
Communication (General Purpose Serial Interface)
(H)
SC
SC
CR
(H)
(L)
Object
Illuminance
type
RC
2
1
0
-1
10
10
10
10
(L)
(H)
- Camera No. → 0: camera 1, 1: camera 2
SC
SC
CR
(H)
(L)
Corrected
Object
light level
type
RC
2
1
0
10
10
10
(L)
18-11
SC
SC
CR
(H)
(L)
Reference
light level
SC
SC
CR
-1
2
1
0
-1
10
10
10
10
10
(H)
(L)
18
