Multiple position measurement

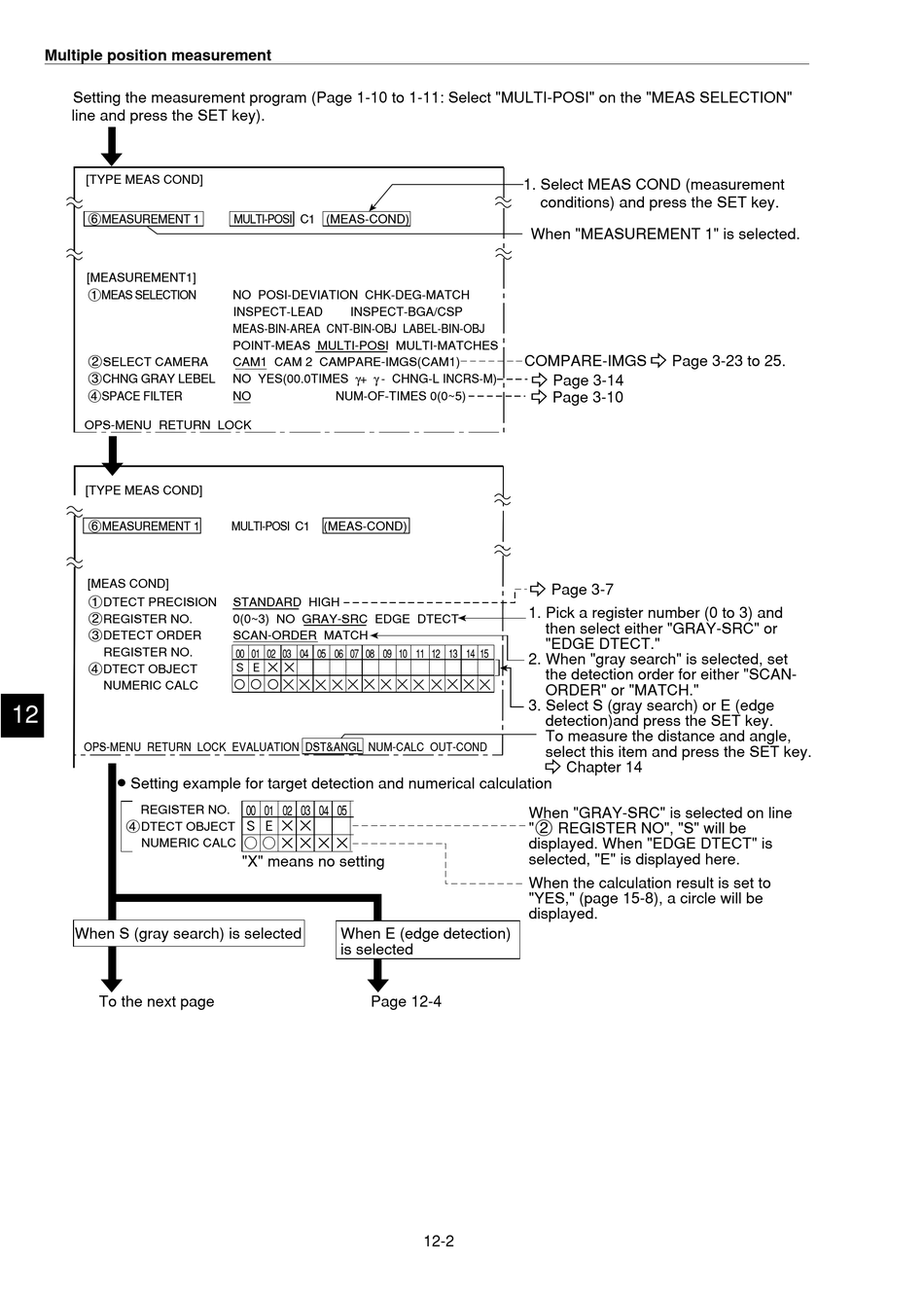

Setting the measurement program (Page 1-10 to 1-11: Select "MULTI-POSI" on the "MEAS SELECTION"
line and press the SET key).
[TYPE MEAS COND]
6MEASUREMENT 1
[MEASUREMENT1]
1MEAS SELECTION
2SELECT CAMERA
3CHNG GRAY LEBEL
4SPACE FILTER
OPS-MENU RETURN LOCK
[TYPE MEAS COND]
6MEASUREMENT 1
[MEAS COND]
1DTECT PRECISION
2REGISTER NO.
3DETECT ORDER
REGISTER NO.
4DTECT OBJECT
NUMERIC CALC
OPS-MENU RETURN LOCK EVALUATION DST&ANGL NUM-CALC OUT-COND
» Setting example for target detection and numerical calculation
REGISTER NO.
4DTECT OBJECT
NUMERIC CALC
When S (gray search) is selected
To the next page
MULTI-POSI C1 (MEAS-COND)
NO POSI-DEVIATION CHK-DEG-MATCH
INSPECT-LEAD
INSPECT-BGA/CSP
MEAS-BIN-AREA CNT-BIN-OBJ LABEL-BIN-OBJ
POINT-MEAS MULTI-POSI MULTI-MATCHES
CAM1 CAM 2 CAMPARE-IMGS(CAM1)
NO YES(00.0TIMES γ+ γ - CHNG-L INCRS-M)
NO
NUM-OF-TIMES 0(0~5)
MULTI-POSI C1
(MEAS-COND)
STANDARD HIGH
0(0~3) NO GRAY-SRC EDGE DTECT
SCAN-ORDER MATCH
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
"X" means no setting
When E (edge detection)
is selected
Page 12-4
1. Select MEAS COND (measurement
conditions) and press the SET key.
When "MEASUREMENT 1" is selected.
COMPARE-IMGS - Page 3-23 to 25.
- Page 3-14
- Page 3-10
- Page 3-7
1. Pick a register number (0 to 3) and
then select either "GRAY-SRC" or
"EDGE DTECT."
2. When "gray search" is selected, set
the detection order for either "SCAN-
ORDER" or "MATCH."
3. Select S (gray search) or E (edge
detection)and press the SET key.
To measure the distance and angle,
select this item and press the SET key.
- Chapter 14
When "GRAY-SRC" is selected on line
"2 REGISTER NO", "S" will be
displayed. When "EDGE DTECT" is
selected, "E" is displayed here.
When the calculation result is set to
"YES," (page 15-8), a circle will be
displayed.
