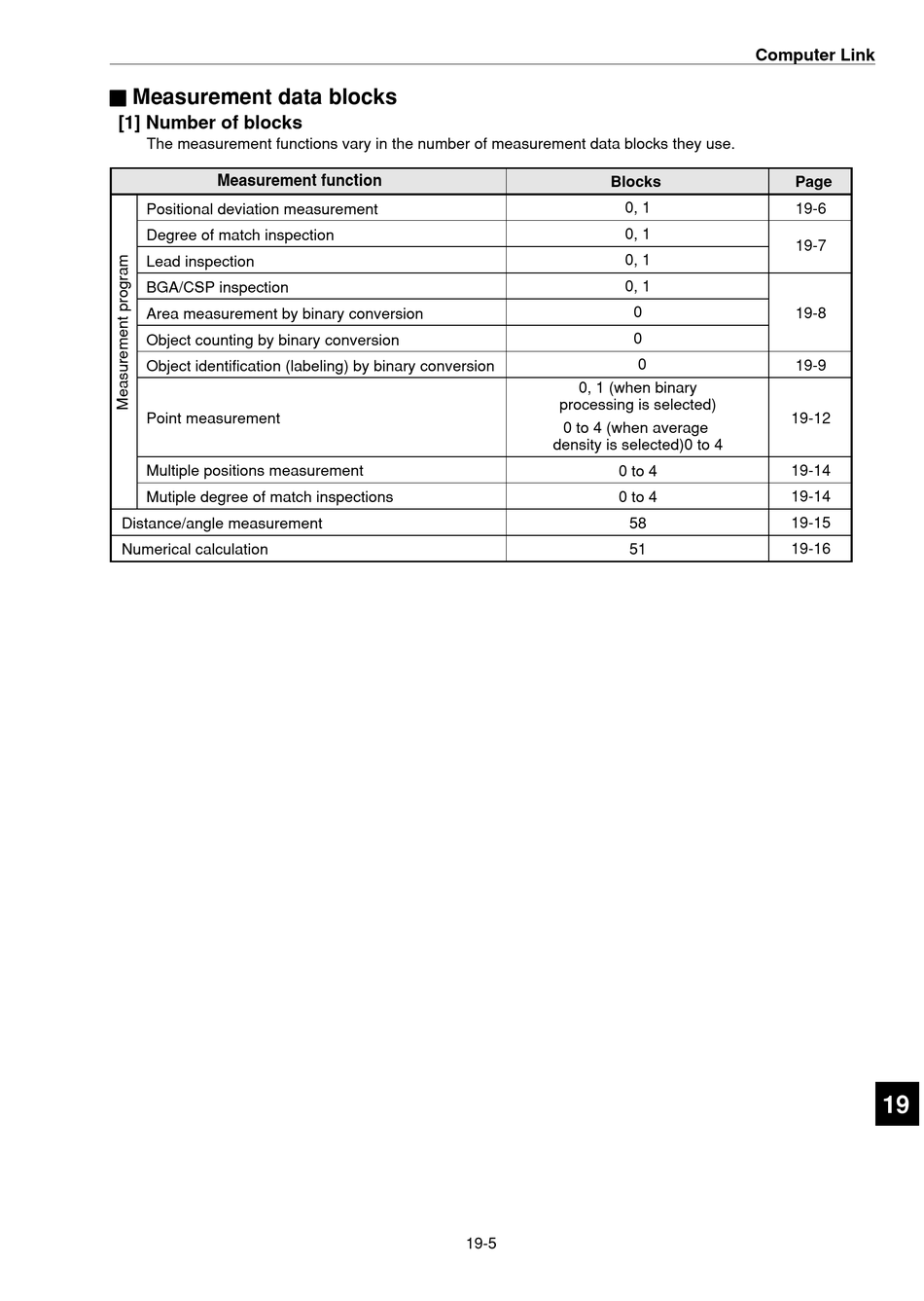

Ë Ë Ë Ë Ë Measurement data blocks

[1] Number of blocks

The measurement functions vary in the number of measurement data blocks they use.
Measurement function
Positional deviation measurement
Degree of match inspection
Lead inspection
BGA/CSP inspection
Area measurement by binary conversion
Object counting by binary conversion
Object identification (labeling) by binary conversion
Point measurement
Multiple positions measurement
Mutiple degree of match inspections
Distance/angle measurement
Numerical calculation
Blocks
0, 1
0, 1
0, 1
0, 1
0
0
0
0, 1 (when binary
processing is selected)
0 to 4 (when average
density is selected)0 to 4
0 to 4
0 to 4
58
51
19-5
Computer Link
Page
19-6
19-7
19-8
19-9
19-12
19-14
19-14
19-15
19-16
19
