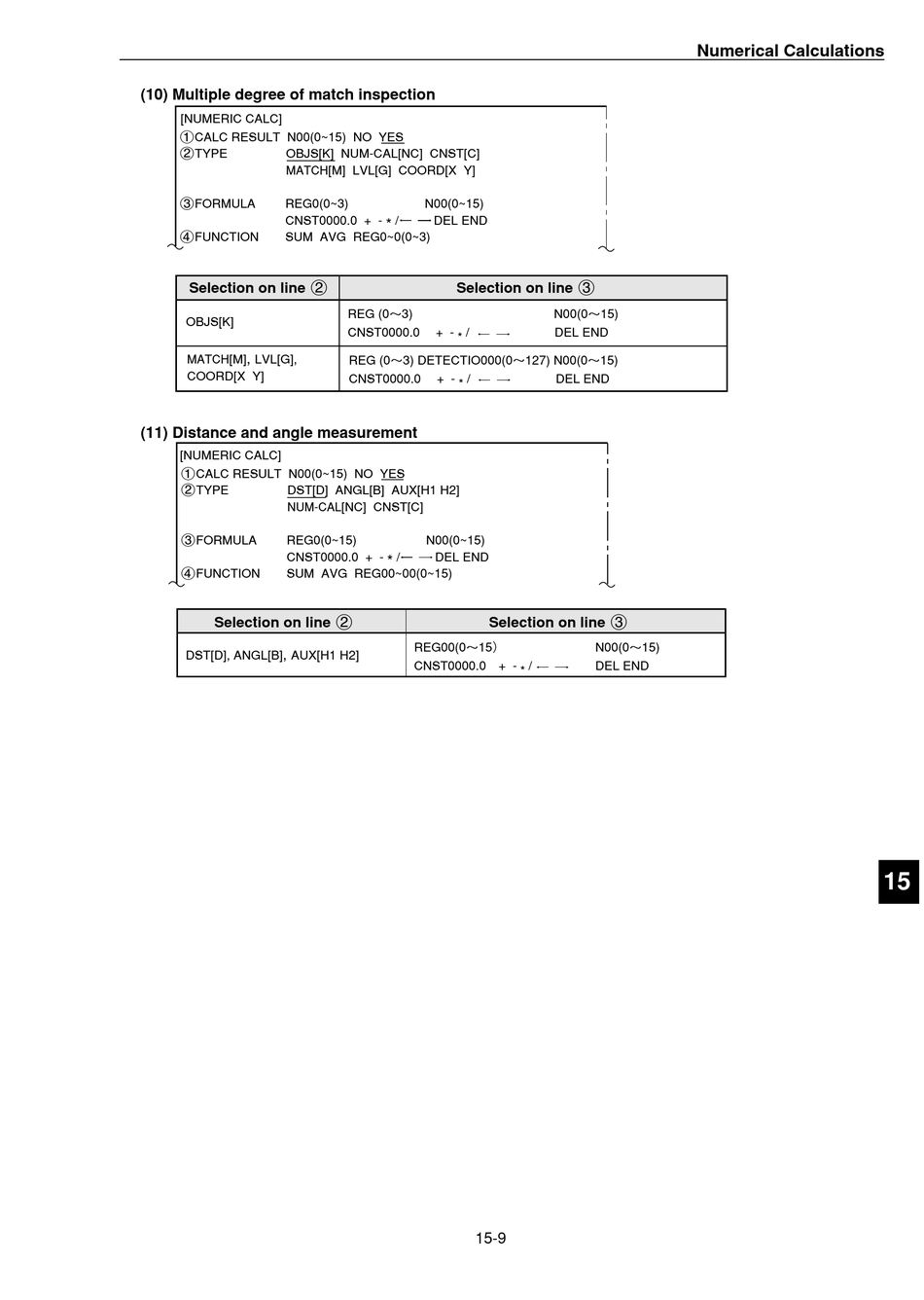

(10) Multiple degree of match inspection
[NUMERIC CALC]
1CALC RESULT N00(0~15) NO YES
2TYPE
OBJS[K] NUM-CAL[NC] CNST[C]
MATCH[M] LVL[G] COORD[X Y]
3FORMULA
REG0(0~3)
CNST0000.0 + -
4FUNCTION
SUM AVG REG0~0(0~3)
Selection on line 2
OBJS[K]
MATCH[M] LVL[G],
COORD[X Y]
(11) Distance and angle measurement
[NUMERIC CALC]
1CALC RESULT N00(0~15) NO YES
2TYPE
DST[D] ANGL[B] AUX[H1 H2]
NUM-CAL[NC] CNST[C]
3FORMULA
REG0(0~15)
CNST0000.0 + -
4FUNCTION
SUM AVG REG00~00(0~15)
Selection on line 2
DST[D], ANGL[B] AUX[H1 H2]
N00(0~15)
/
DEL END
*
Selection on line 3
REG (0 3)
CNST0000.0
+ - * /
REG (0 3) DETECTIO000(0 127 N00(0 15)
CNST0000.0
+ - * /
N00(0~15)
/
DEL END
*
Selection on line 3
REG00(0 15
CNST0000.0 + - * /
15-9
Numerical Calculations
N00(0 15)
DEL END
DEL END
N00(0 15)
DEL END
15
