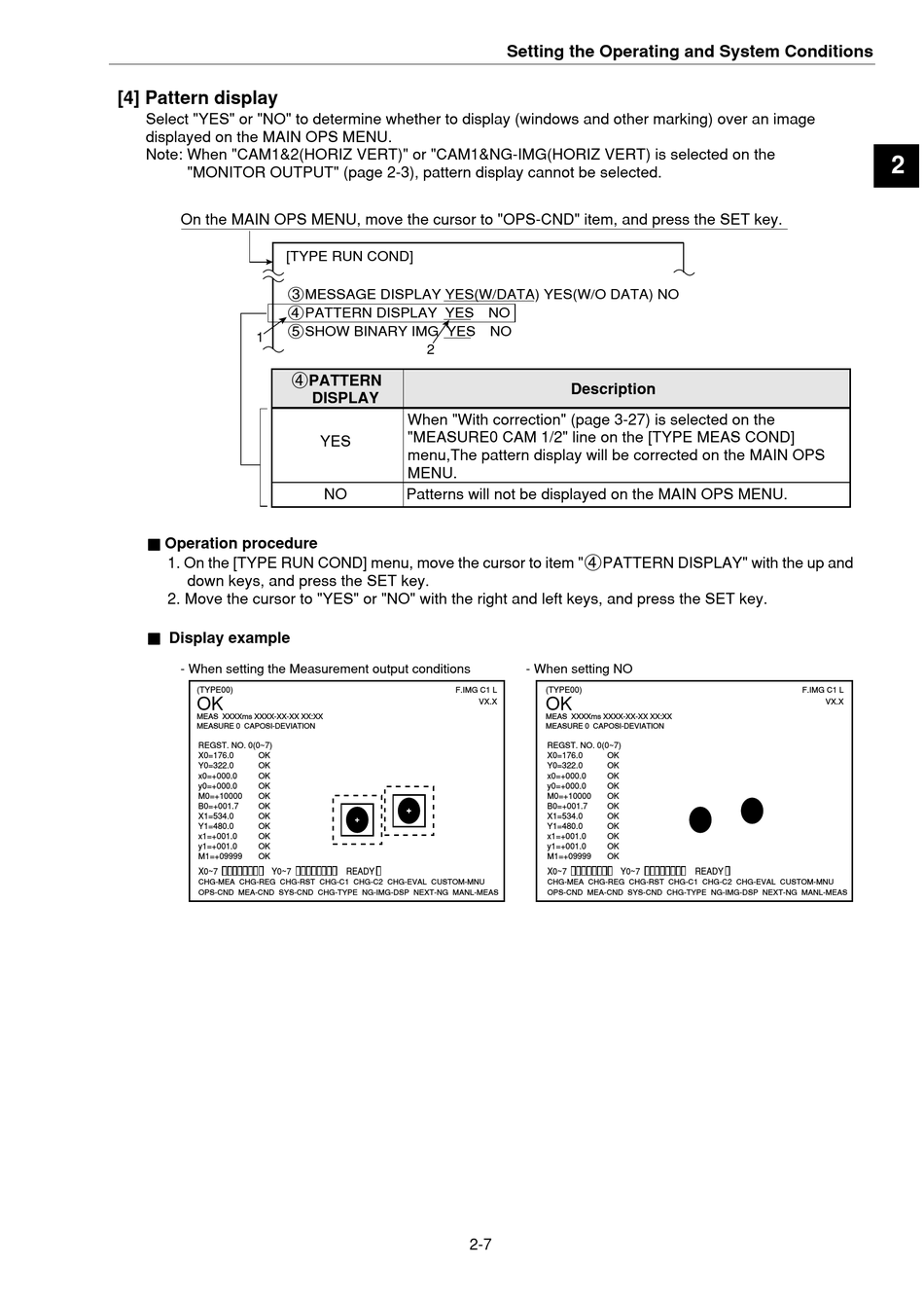

[4] Pattern display

Select "YES" or "NO" to determine whether to display (windows and other marking) over an image
displayed on the MAIN OPS MENU.
Note: When "CAM1&2(HORIZ VERT)" or "CAM1&NG-IMG(HORIZ VERT) is selected on the
"MONITOR OUTPUT" (page 2-3), pattern display cannot be selected.
On the MAIN OPS MENU, move the cursor to "OPS-CND" item, and press the SET key.
[TYPE RUN COND]
3MESSAGE DISPLAY YES(W/DATA) YES(W/O DATA) NO
4PATTERN DISPLAY YES NO
5SHOW BINARY IMG YES NO
1
4PATTERN
Ë Ë Ë Ë Ë Operation procedure
1. On the [TYPE RUN COND] menu, move the cursor to item "4PATTERN DISPLAY" with the up and
down keys, and press the SET key.
2. Move the cursor to "YES" or "NO" with the right and left keys, and press the SET key.
Ë Ë Ë Ë Ë Display example
(TYPE00)
OK
MEAS XXXXms XXXX-XX-XX XX:XX
MEASURE 0 CAPOSI-DEVIATION
REGST. NO. 0(0~7)
X0=176.0
OK
Y0=322.0
OK
x0=+000.0
OK
y0=+000.0
OK
M0=+10000
OK
B0=+001.7
OK
X1=534.0
OK
Y1=480.0
OK
x1=+001.0
OK
y1=+001.0
OK
M1=+09999
OK
X0~7
Y0~7
CHG-MEA CHG-REG CHG-RST CHG-C1 CHG-C2 CHG-EVAL CUSTOM-MNU
OPS-CND MEA-CND SYS-CND CHG-TYPE NG-IMG-DSP NEXT-NG MANL-MEAS
2
DISPLAY
When "With correction" (page 3-27) is selected on the
"MEASURE0 CAM 1/2" line on the [TYPE MEAS COND]
YES
menu,The pattern display will be corrected on the MAIN OPS
MENU.
NO
Patterns will not be displayed on the MAIN OPS MENU.
F.IMG C1 L
VX.X
READY
2-7
Setting the Operating and System Conditions
Description
(TYPE00)
OK
MEAS XXXXms XXXX-XX-XX XX:XX
MEASURE 0 CAPOSI-DEVIATION
REGST. NO. 0(0~7)
X0=176.0
OK
Y0=322.0
OK
x0=+000.0
OK
y0=+000.0
OK
M0=+10000
OK
B0=+001.7
OK
X1=534.0
OK
Y1=480.0
OK
x1=+001.0
OK
y1=+001.0
OK
M1=+09999
OK
X0~7
Y0~7
CHG-MEA CHG-REG CHG-RST CHG-C1 CHG-C2 CHG-EVAL CUSTOM-MNU
OPS-CND MEA-CND SYS-CND CHG-TYPE NG-IMG-DSP NEXT-NG MANL-MEAS
F.IMG C1 L
VX.X
READY
2
