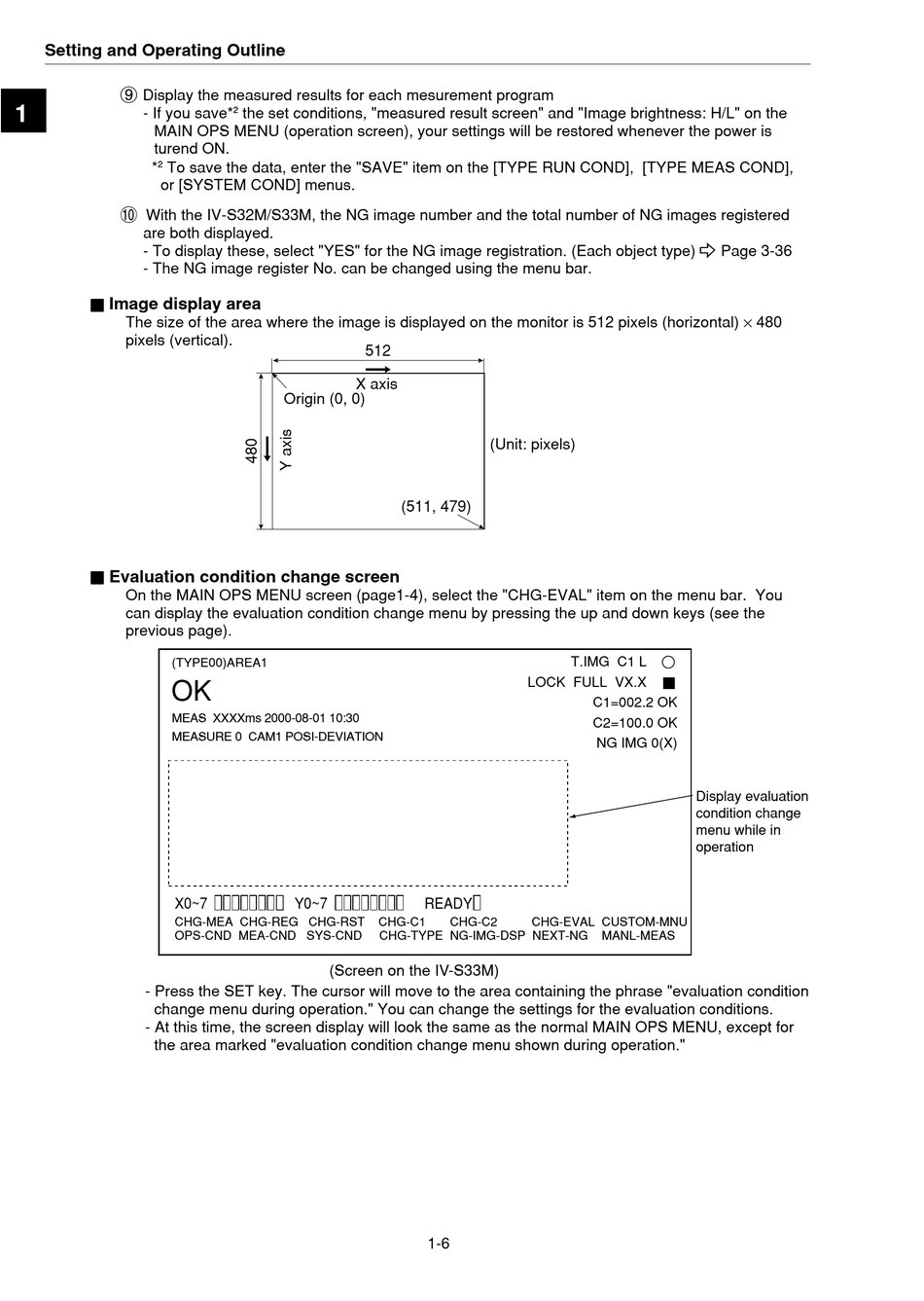

Setting and Operating Outline
9 Display the measured results for each mesurement program
1
- If you save*
MAIN OPS MENU (operation screen), your settings will be restored whenever the power is
turend ON.
*
2
To save the data, enter the "SAVE" item on the [TYPE RUN COND], [TYPE MEAS COND],
or [SYSTEM COND] menus.
0 With the IV-S32M/S33M, the NG image number and the total number of NG images registered
are both displayed.
- To display these, select "YES" for the NG image registration. (Each object type) - Page 3-36
- The NG image register No. can be changed using the menu bar.
Ë Ë Ë Ë Ë Image display area
The size of the area where the image is displayed on the monitor is 512 pixels (horizontal) × 480
pixels (vertical).
Ë Ë Ë Ë Ë Evaluation condition change screen
On the MAIN OPS MENU screen (page1-4), select the "CHG-EVAL" item on the menu bar. You
can display the evaluation condition change menu by pressing the up and down keys (see the
previous page).
(TYPE00)AREA1
OK
MEAS XXXXms 2000-08-01 10:30
MEASURE 0 CAM1 POSI-DEVIATION
X0~7
CHG-MEA CHG-REG CHG-RST
OPS-CND MEA-CND SYS-CND
- Press the SET key. The cursor will move to the area containing the phrase "evaluation condition
change menu during operation." You can change the settings for the evaluation conditions.
- At this time, the screen display will look the same as the normal MAIN OPS MENU, except for
the area marked "evaluation condition change menu shown during operation."
2
the set conditions, "measured result screen" and "Image brightness: H/L" on the
512
X axis
Origin (0, 0)
(511, 479)
Y0~7
CHG-C1
CHG-TYPE NG-IMG-DSP NEXT-NG
(Screen on the IV-S33M)
(Unit: pixels)
T.IMG C1 L
LOCK FULL VX.X
C1=002.2 OK
C2=100.0 OK
NG IMG 0(X)
READY
CHG-C2
CHG-EVAL CUSTOM-MNU
1-6
Display evaluation
condition change
menu while in
operation
MANL-MEAS
