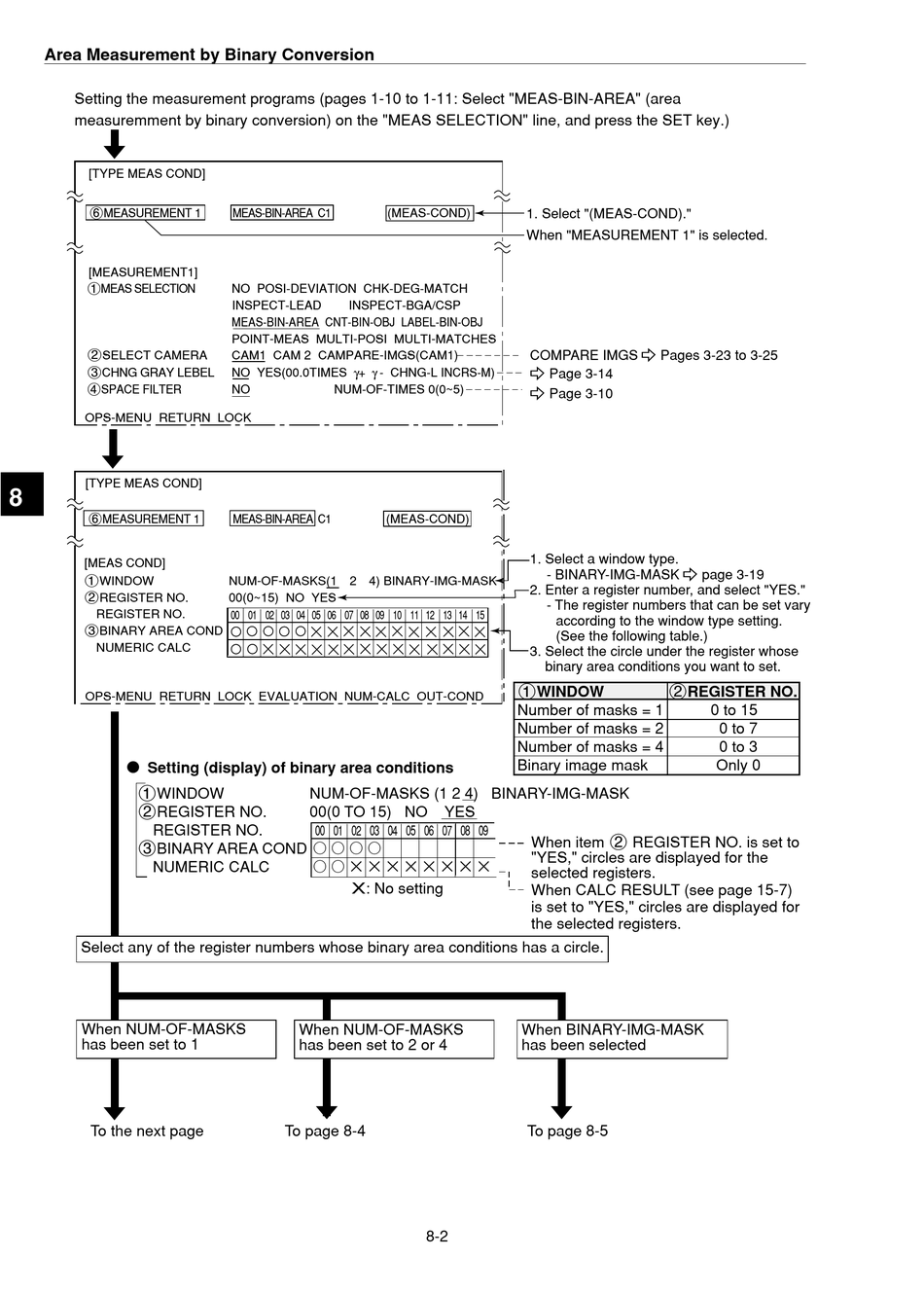

Area Measurement by Binary Conversion
Setting the measurement programs (pages 1-10 to 1-11: Select "MEAS-BIN-AREA" (area
measuremment by binary conversion) on the "MEAS SELECTION" line, and press the SET key.)
[TYPE MEAS COND]
6MEASUREMENT 1
[MEASUREMENT1]
1MEAS SELECTION
2SELECT CAMERA
3CHNG GRAY LEBEL
4SPACE FILTER
OPS-MENU RETURN LOCK
[TYPE MEAS COND]
8
6MEASUREMENT 1
[MEAS COND]
1WINDOW
2
3
NUMERIC CALC
OPS-MENU RETURN LOCK EVALUATION NUM-CALC OUT-COND
Æ Setting (display) of binary area conditions
1WINDOW
2REGISTER NO.
REGISTER NO.
3BINARY AREA COND
NUMERIC CALC
Select any of the register numbers whose binary area conditions has a circle.
When NUM-OF-MASKS
has been set to 1
To the next page
MEAS-BIN-AREA C1
(MEAS-COND)
NO POSI-DEVIATION CHK-DEG-MATCH
INSPECT-LEAD
INSPECT-BGA/CSP
MEAS-BIN-AREA CNT-BIN-OBJ LABEL-BIN-OBJ
POINT-MEAS MULTI-POSI MULTI-MATCHES
CAM1 CAM 2 CAMPARE-IMGS(CAM1)
NO YES(00.0TIMES γ+ γ - CHNG-L INCRS-M)
NO
NUM-OF-TIMES 0(0~5)
MEAS-BIN-AREA C1
(MEAS-COND)
00(0~15) NO YES
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
NUM-OF-MASKS (1 2 4) BINARY-IMG-MASK
00(0 TO 15) NO
X: No setting
When NUM-OF-MASKS
has been set to 2 or 4
To page 8-4
1. Select "(MEAS-COND)."
When "MEASUREMENT 1" is selected.
COMPARE IMGS - Pages 3-23 to 3-25
- Page 3-14
- Page 3-10
1. Select a window type.
- BINARY-IMG-MASK - page 3-19
2. Enter a register number, and select "YES."
- The register numbers that can be set vary
according to the window type setting.
(See the following table.)
3. Select the circle under the register whose
binary area conditions you want to set.
1WINDOW
Number of masks = 1
Number of masks = 2
Number of masks = 4
Binary image mask
YES
When item 2 REGISTER NO. is set to
"YES," circles are displayed for the
selected registers.
When CALC RESULT (see page 15-7)
is set to "YES," circles are displayed for
the selected registers.
When BINARY-IMG-MASK
has been selected
To page 8-5
8-2
2REGISTER NO.
0 to 15
0 to 7
0 to 3
Only 0
