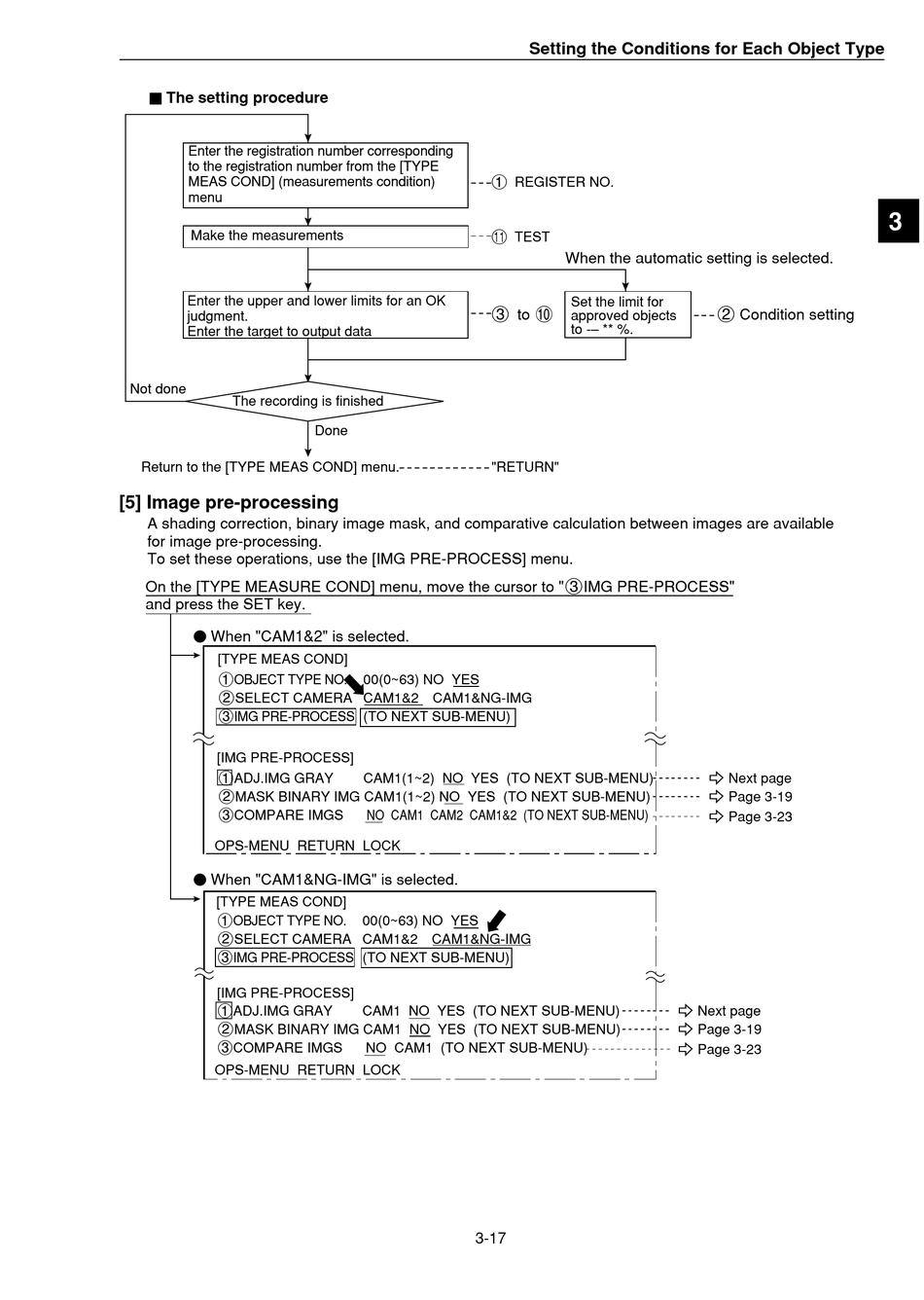

Ë Ë Ë Ë Ë The setting procedure
Enter the registration number corresponding
to the registration number from the [TYPE
MEAS COND] (measurements condition)
menu
Make the measurements
Enter the upper and lower limits for an OK
judgment.
Enter the target to output data
Not done
The recording is finished
Return to the [TYPE MEAS COND] menu.

[5] Image pre-processing

A shading correction, binary image mask, and comparative calculation between images are available
for image pre-processing.
To set these operations, use the [IMG PRE-PROCESS] menu.
On the [TYPE MEASURE COND] menu, move the cursor to "3IMG PRE-PROCESS"
and press the SET key.
When "CAM1&2" is selected.
[TYPE MEAS COND]
1OBJECT TYPE NO.
2SELECT CAMERA CAM1&2 CAM1&NG-IMG
3IMG PRE-PROCESS (TO NEXT SUB-MENU)
[IMG PRE-PROCESS]
1ADJ.IMG GRAY
2
3 OMPARE IMGS
OPS-MENU RETURN LOCK
When "CAM1&NG-IMG" is selected.
[TYPE MEAS COND]
1OBJECT TYPE NO.
2SELECT CAMERA CAM1&2 CAM1&NG-IMG
3IMG PRE-PROCESS (TO NEXT SUB-MENU)
[IMG PRE-PROCESS]
1ADJ.IMG GRAY
2
3 OMPARE IMGS
OPS-MENU RETURN LOCK
Done
00(0~63) NO YES
CAM1(1~2) NO YES (TO NEXT SUB-MENU)
CAM1(1~2) NO YES (TO NEXT SUB-MENU)
NO CAM1 CAM2 CAM1&2 (TO NEXT SUB-MENU)
00(0~63) NO YES
CAM1 NO YES (TO NEXT SUB-MENU)
CAM1 NO YES (TO NEXT SUB-MENU)
NO CAM1 (TO NEXT SUB-MENU)
3-17
Setting the Conditions for Each Object Type
1 REGISTER NO.
q TEST
When the automatic setting is selected.
Set the limit for
3 to 0
approved objects
to -– ** %.
2 Condition setting
- Next page
- Page 3-19
- Page 3-23
- Next page
- Page 3-19
- Page 3-23
3
