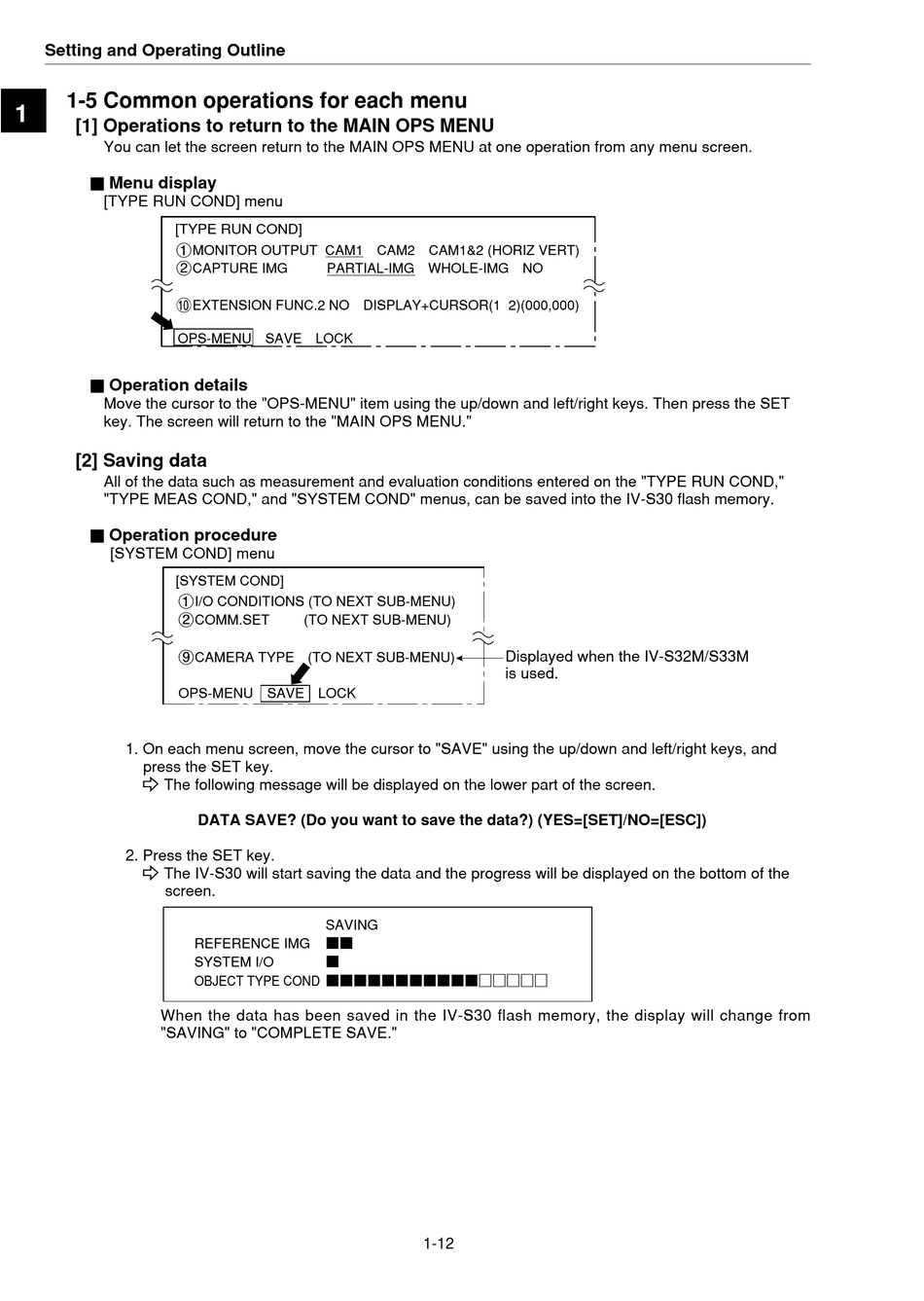

Setting and Operating Outline

1-5 Common operations for each menu

1

[1] Operations to return to the MAIN OPS MENU

You can let the screen return to the MAIN OPS MENU at one operation from any menu screen.
Ë Ë Ë Ë Ë Menu display
[TYPE RUN COND] menu
[TYPE RUN COND]
1MONITOR OUTPUT CAM1 CAM2 CAM1&2 (HORIZ VERT)
2CAPTURE IMG
0EXTENSION FUNC.2 NO DISPLAY+CURSOR(1 2)(000,000)
OPS-MENU SAVE LOCK
Ë Ë Ë Ë Ë Operation details
Move the cursor to the "OPS-MENU" item using the up/down and left/right keys. Then press the SET
key. The screen will return to the "MAIN OPS MENU."

[2] Saving data

All of the data such as measurement and evaluation conditions entered on the "TYPE RUN COND,"
"TYPE MEAS COND," and "SYSTEM COND" menus, can be saved into the IV-S30 flash memory.
Ë Ë Ë Ë Ë Operation procedure
[SYSTEM COND] menu
[SYSTEM COND]
1I/O CONDITIONS (TO NEXT SUB-MENU)
2COMM.SET
9CAMERA TYPE (TO NEXT SUB-MENU)
OPS-MENU SAVE LOCK
1. On each menu screen, move the cursor to "SAVE" using the up/down and left/right keys, and
press the SET key.
- The following message will be displayed on the lower part of the screen.
2. Press the SET key.
- The IV-S30 will start saving the data and the progress will be displayed on the bottom of the
screen.
When the data has been saved in the IV-S30 flash memory, the display will change from
"SAVING" to "COMPLETE SAVE."
PARTIAL-IMG WHOLE-IMG NO
(TO NEXT SUB-MENU)
DATA SAVE? (Do you want to save the data?) (YES=[SET]/NO=[ESC])
REFERENCE IMG
SYSTEM I/O
OBJECT TYPE COND
Displayed when the IV-S32M/S33M
is used.
1-12
