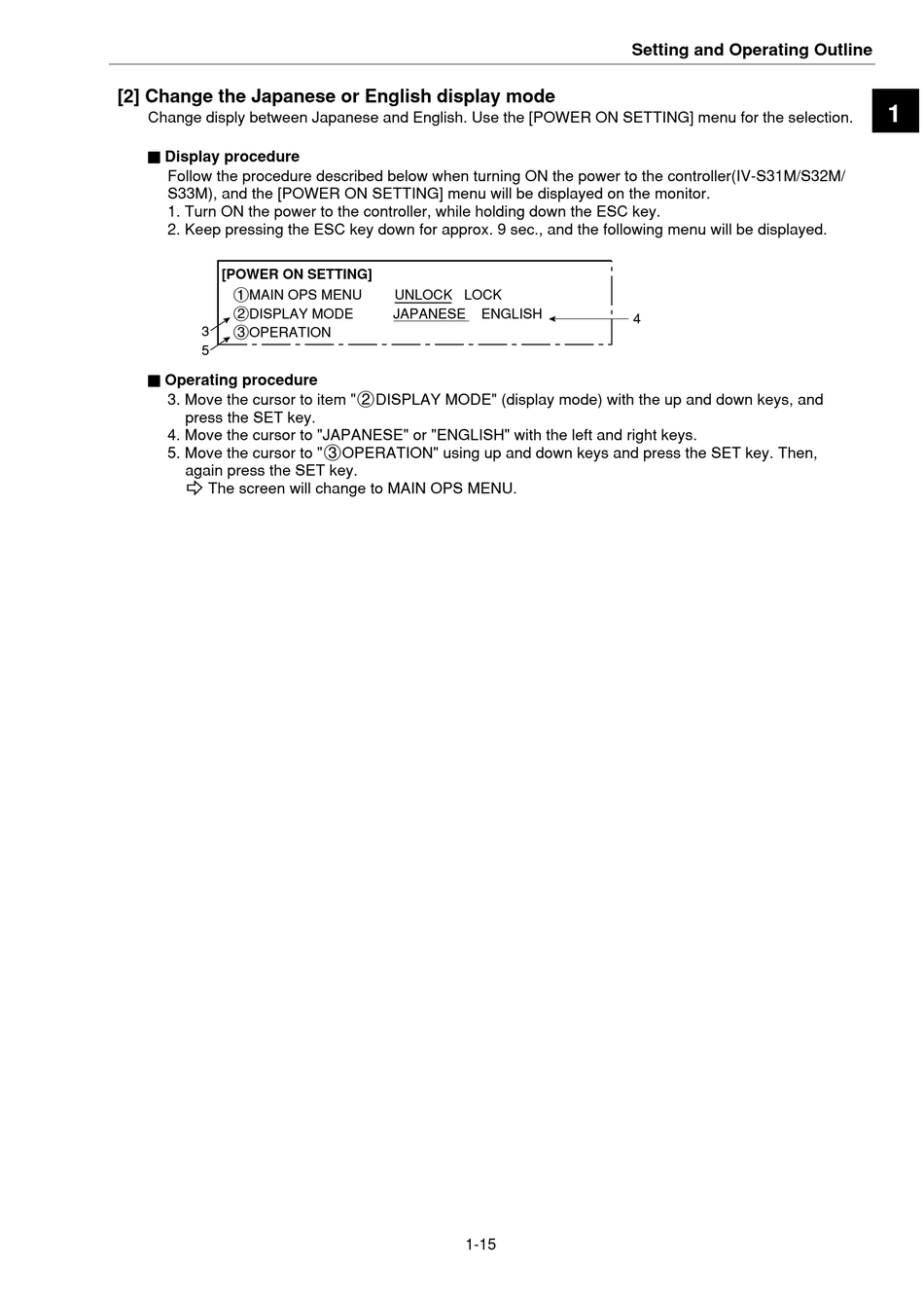

Change the Japanese or English display mode
Change disply between Japanese and English. Use the [POWER ON SETTING] menu for the selection.
Ë Ë Ë Ë Ë Display procedure
Follow the procedure described below when turning ON the power to the controller(IV-S31M/S32M/
S33M), and the [POWER ON SETTING] menu will be displayed on the monitor.
1. Turn ON the power to the controller, while holding down the ESC key.
2. Keep pressing the ESC key down for approx. 9 sec., and the following menu will be displayed.
[POWER ON SETTING]
1MAIN OPS MENU
Ë Ë Ë Ë Ë Operating procedure
3. Move the cursor to item "2DISPLAY MODE" (display mode) with the up and down keys, and
press the SET key.
4. Move the cursor to "JAPANESE" or "ENGLISH" with the left and right keys.
5. Move the cursor to "3OPERATION" using up and down keys and press the SET key. Then,
again press the SET key.
- The screen will change to MAIN OPS MENU.
