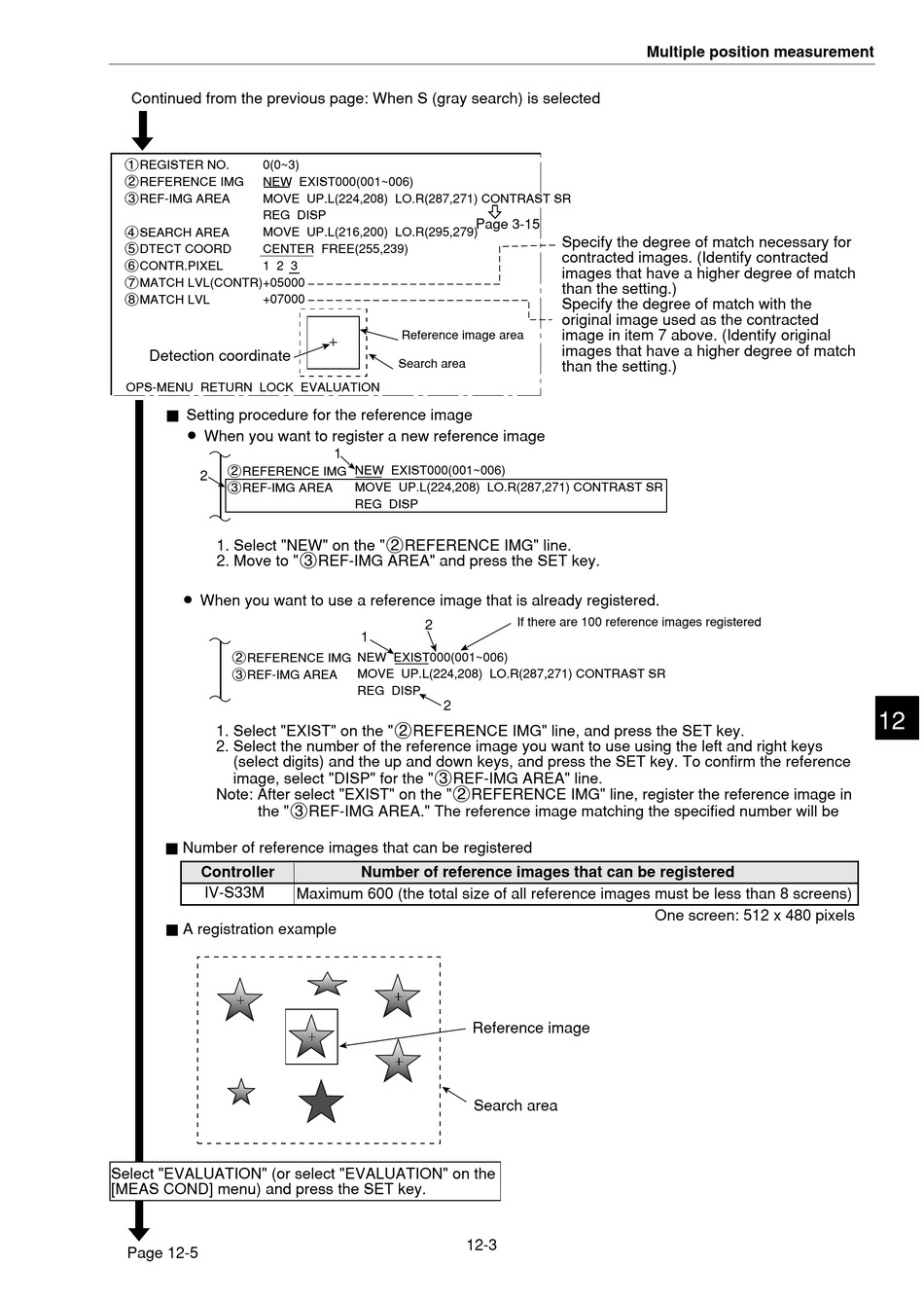

Continued from the previous page: When S (gray search) is selected
1REGISTER NO.
0(0~3)
2REFERENCE IMG
NEW EXIST000(001~006)
3REF-IMG AREA
MOVE UP.L(224,208) LO.R(287,271) CONTRAST SR
REG DISP
4SEARCH AREA
MOVE UP.L(216,200) LO.R(295,279)
5DTECT COORD
CENTER FREE(255,239)
6CONTR.PIXEL
1 2 3
7MATCH LVL(CONTR)
+05000
8MATCH LVL
+07000
Detection coordinate
OPS-MENU RETURN LOCK EVALUATION
Ë Setting procedure for the reference image
» When you want to register a new reference image
2REFERENCE IMG
2
3REF-IMG AREA
1. Select "NEW" on the "2REFERENCE IMG" line.
2. Move to "3REF-IMG AREA" and press the SET key.
» When you want to use a reference image that is already registered.
2REFERENCE IMG
3REF-IMG AREA
1. Select "EXIST" on the "2REFERENCE IMG" line, and press the SET key.
2. Select the number of the reference image you want to use using the left and right keys
(select digits) and the up and down keys, and press the SET key. To confirm the reference
image, select "DISP" for the "3REF-IMG AREA" line.
Note: After select "EXIST" on the "2REFERENCE IMG" line, register the reference image in
the "3REF-IMG AREA." The reference image matching the specified number will be
Ë Number of reference images that can be registered
Controller
IV-S33M
Ë A registration example
Select "EVALUATION" (or select "EVALUATION" on the
[MEAS COND] menu) and press the SET key.
Page 12-5
Reference image area
Search area
1
NEW EXIST000(001~006)
MOVE UP.L(224,208) LO.R(287,271) CONTRAST SR
REG DISP
2
1
NEW EXIST000(001~006)
MOVE UP.L(224,208) LO.R(287,271) CONTRAST SR
REG DISP
2
Number of reference images that can be registered
Maximum 600 (the total size of all reference images must be less than 8 screens)
12-3
Page 3-15
Specify the degree of match necessary for
contracted images. (Identify contracted
images that have a higher degree of match
than the setting.)
Specify the degree of match with the
original image used as the contracted
image in item 7 above. (Identify original
images that have a higher degree of match
than the setting.)
If there are 100 reference images registered
Reference image
Search area
Multiple position measurement
One screen: 512 x 480 pixels
