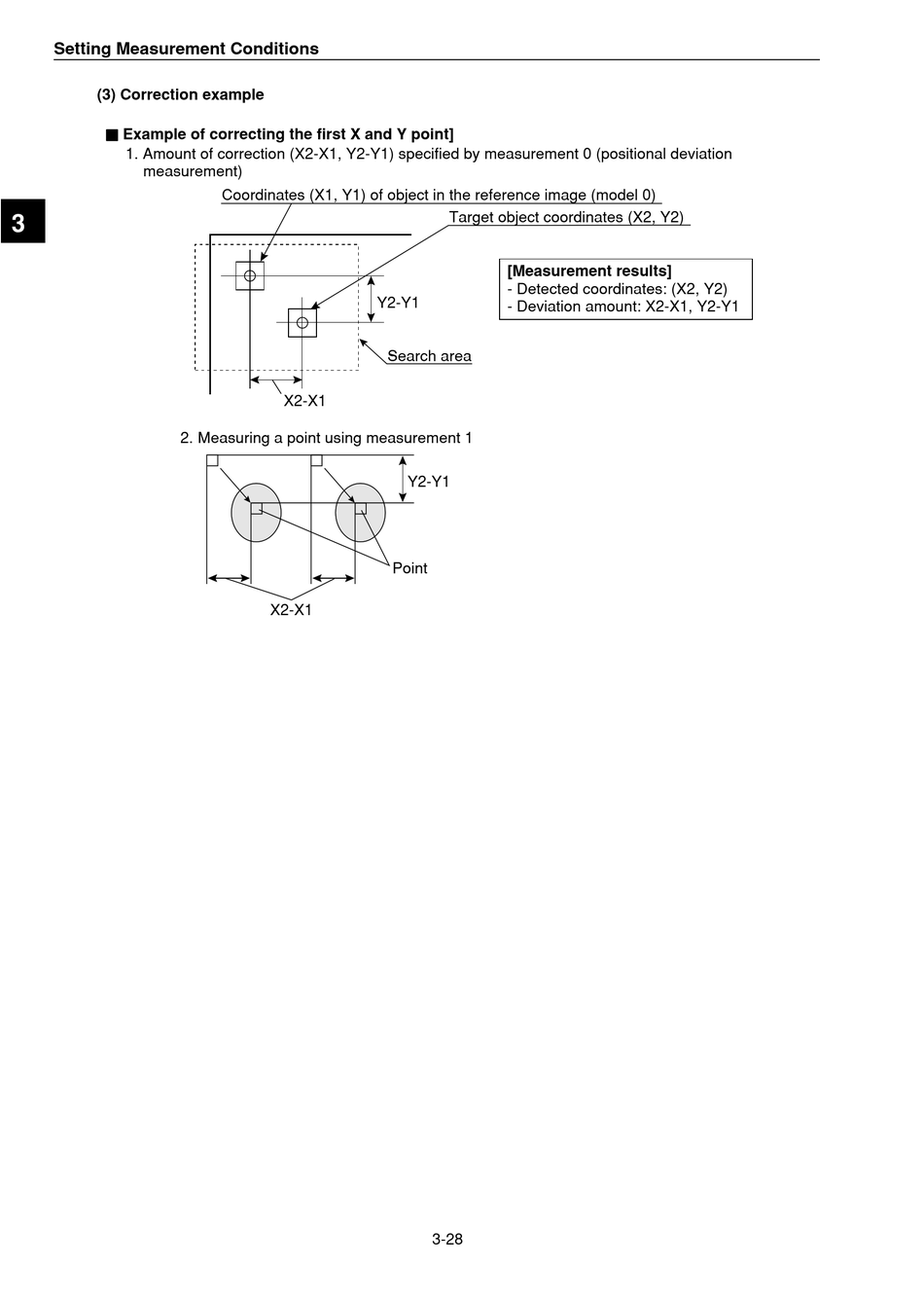

(3) Correction example

Ë Ë Ë Ë Ë Example of correcting the first X and Y point]
1. Amount of correction (X2-X1, Y2-Y1) specified by measurement 0 (positional deviation
measurement)
Coordinates (X1, Y1) of object in the reference image (model 0)
Target object coordinates (X2, Y2)
3
[Measurement results]
- Detected coordinates: (X2, Y2)
Y2-Y1
- Deviation amount: X2-X1, Y2-Y1
Search area
X2-X1
2. Measuring a point using measurement 1
Y2-Y1
Point
X2-X1
3-28
