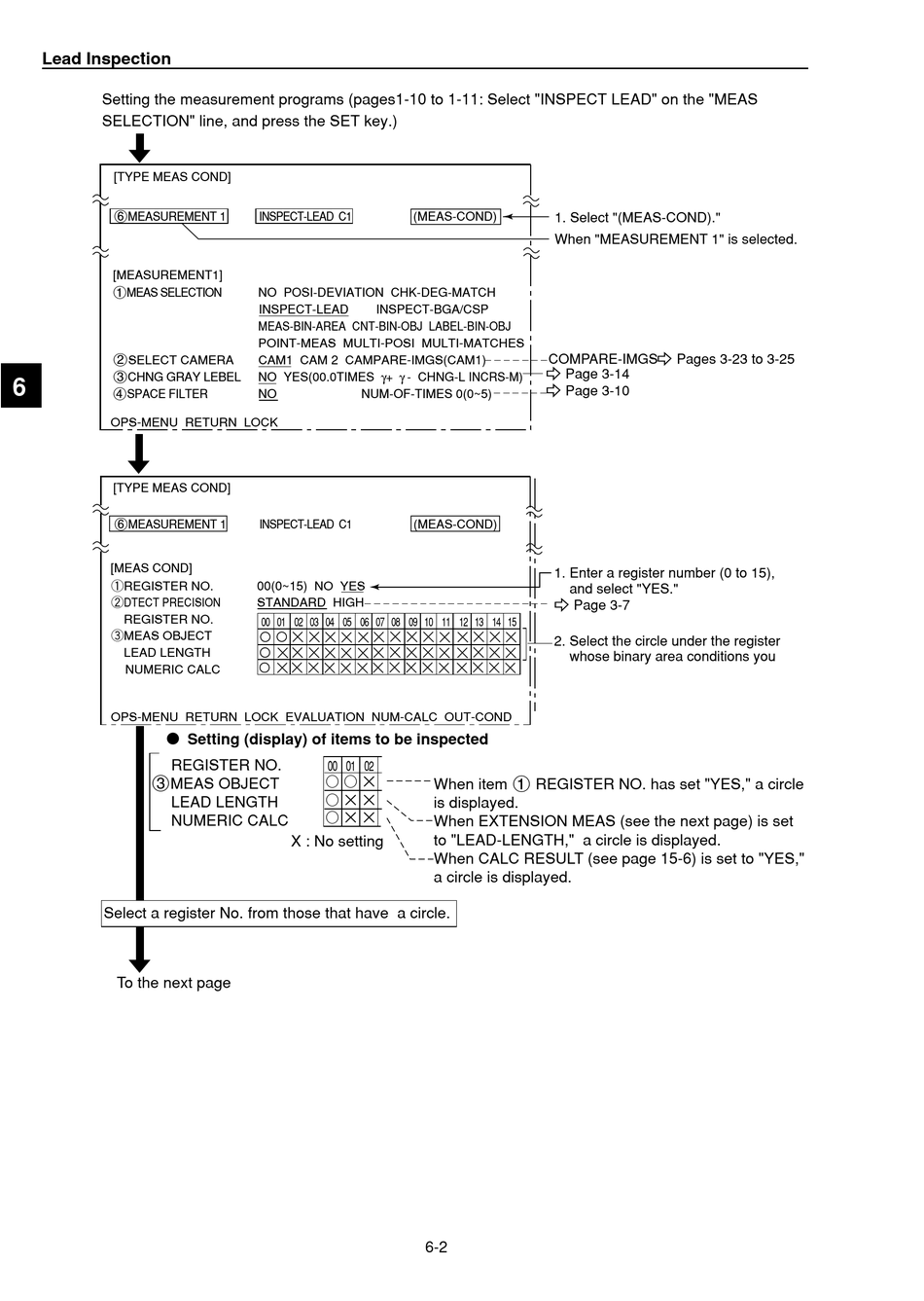

Lead Inspection
Setting the measurement programs (pages1-10 to 1-11: Select "INSPECT LEAD" on the "MEAS
SELECTION" line, and press the SET key.)
[TYPE MEAS COND]
6MEASUREMENT 1
[MEASUREMENT1]
1MEAS SELECTION
2SELECT CAMERA
3CHNG GRAY LEBEL
6
4SPACE FILTER
OPS-MENU RETURN LOCK
[TYPE MEAS COND]
6MEASUREMENT 1
[MEAS COND]
REGISTER NO.
DTECT PRECISION
REGISTER NO.
MEAS OBJECT
LEAD LENGTH
NUMERIC CALC
OPS-MENU RETURN LOCK EVALUATION NUM-CALC OUT-COND
Æ Setting (display) of items to be inspected
REGISTER NO.
3MEAS OBJECT
LEAD LENGTH
NUMERIC CALC
Select a register No. from those that have a circle.
To the next page
INSPECT-LEAD C1
(MEAS-COND)
NO POSI-DEVIATION CHK-DEG-MATCH
INSPECT-LEAD
INSPECT-BGA/CSP
MEAS-BIN-AREA CNT-BIN-OBJ LABEL-BIN-OBJ
POINT-MEAS MULTI-POSI MULTI-MATCHES
CAM1 CAM 2 CAMPARE-IMGS(CAM1)
NO YES(00.0TIMES γ+ γ - CHNG-L INCRS-M)
NO
NUM-OF-TIMES 0(0~5)
INSPECT-LEAD C1
(MEAS-COND)
00(0~15) NO YES
STANDARD HIGH
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
X : No setting
6-2
1. Select "(MEAS-COND)."
When "MEASUREMENT 1" is selected.
COMPARE-IMGS- Pages 3-23 to 3-25
- Page 3-14
- Page 3-10
1. Enter a register number (0 to 15),
and select "YES."
- Page 3-7
2. Select the circle under the register
whose binary area conditions you
When item 1 REGISTER NO. has set "YES," a circle
is displayed.
When EXTENSION MEAS (see the next page) is set
to "LEAD-LENGTH," a circle is displayed.
When CALC RESULT (see page 15-6) is set to "YES,"
a circle is displayed.
