Pressing the TRG/BRT key will start a measurement manually.

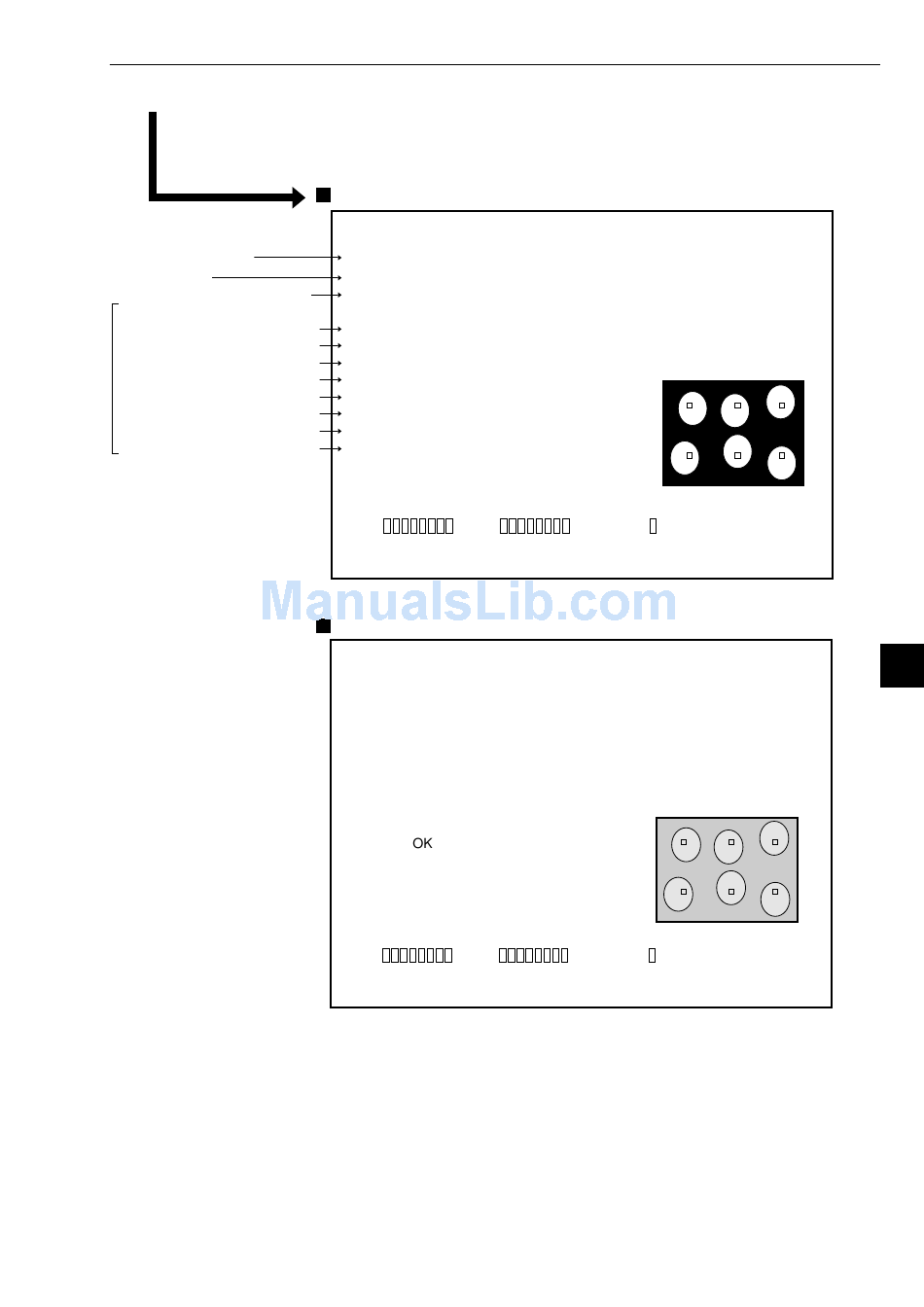

[Display of the
measured results]
Final evaluation result
Measuring time
Measurement program number
Evaluation of the correct black or white
color detected at registration No.000
"
"
"
"
"
"
"
- Areas will not be displayed for
unspecified registration numbers.
When MODE has been set to BINARY
(TYPE00)
OK
MEAS XXXXms 1999-08-01 10:30
MEASUREMENT 1 POINT-MEAS
P000=WHITE OK
001
P001=WHITE OK
002
P002=WHITE OK
003
P003=WHITE OK
004
P004=WHITE OK
005
P005=
006
P006=
007
P007=
X0~7
Y0~7
CHG-MEA CHG-REG CHG-RST CHG-C1
OPS-CND MEA-CND SYS-CND CHG-TYPE NEXT-NG RE-EXAM-NG MANL-MEAS
When MODE has been set to AVG-GRAYS
(TYPE00)
OK
MEAS XXXXms 1999-08-01 10:30
MEASUREMENT 1 POINT-MEAS
P000=115 OK
P001=120 OK
P002=114 OK
P003=118 OK
P004=116 OK
P005=115
P006=
P007=
X0~7
Y0~7
CHG-MEA CHG-REG CHG-RST CHG-C1
OPS-CND MEA-CND SYS-CND CHG-TYPE NEXT-NG RE-EXAM-NG MANL-MEAS
Existence Inspection by Point Measurement
READY
CHG-C2 CHG-EVAL CUSTOM-MNU
READY
CHG-C2 CHG-EVAL CUSTOM-MNU
11-5
F.IMG C1 L
VX.X
F.IMG C1 L
11
VX.X
