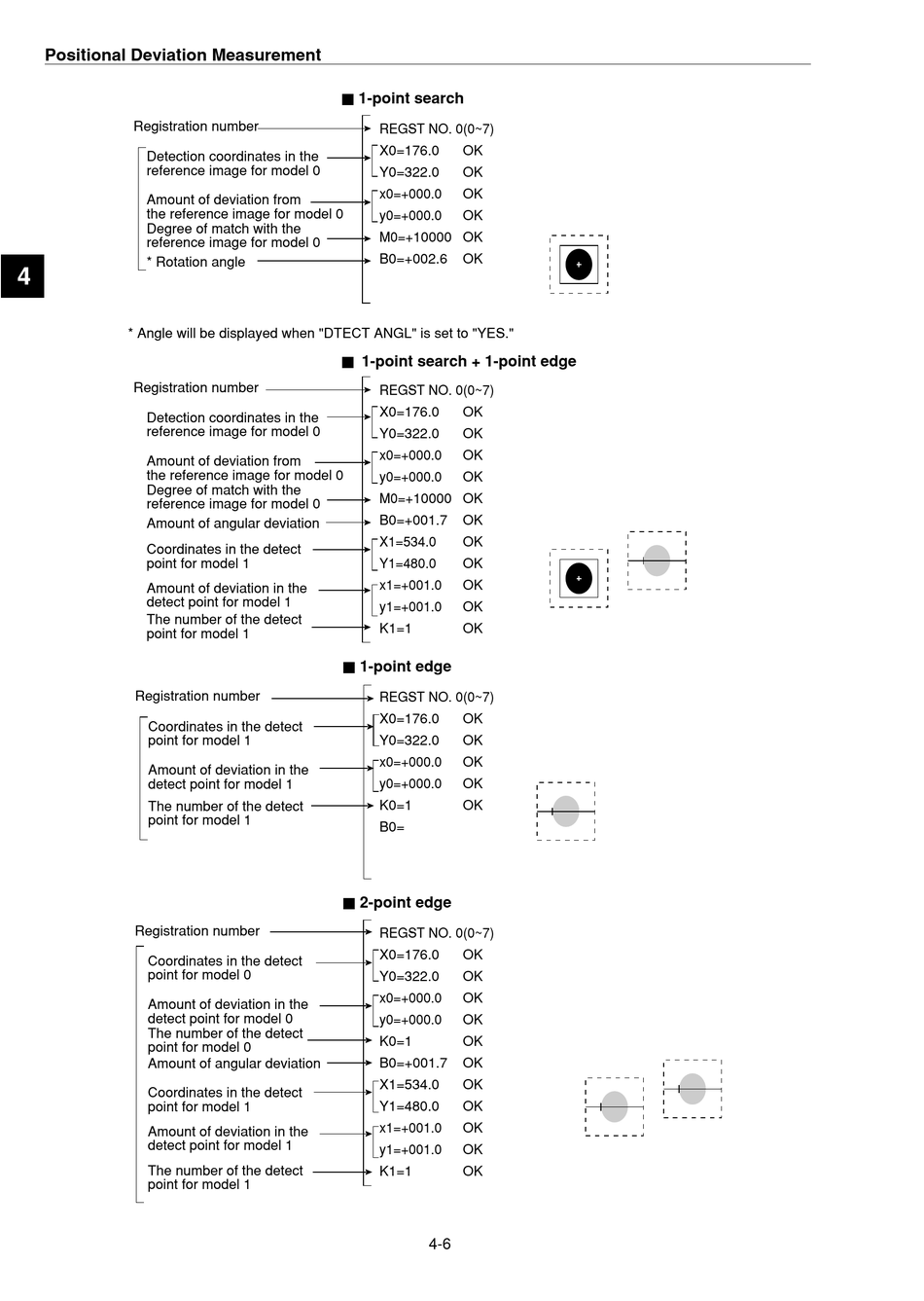

Positional Deviation Measurement
Registration number
Detection coordinates in the
reference image for model 0
Amount of deviation from
the reference image for model 0
Degree of match with the
reference image for model 0
* Rotation angle
4
* Angle will be displayed when "DTECT ANGL" is set to "YES."
Registration number
Detection coordinates in the
reference image for model 0
Amount of deviation from
the reference image for model 0
Degree of match with the
reference image for model 0
Amount of angular deviation
Coordinates in the detect
point for model 1
Amount of deviation in the
detect point for model 1
The number of the detect
point for model 1
Registration number
Coordinates in the detect
point for model 1
Amount of deviation in the
detect point for model 1
The number of the detect
point for model 1
Registration number
Coordinates in the detect
point for model 0
Amount of deviation in the
detect point for model 0
The number of the detect
point for model 0
Amount of angular deviation
Coordinates in the detect
point for model 1
Amount of deviation in the
detect point for model 1
The number of the detect
point for model 1
Ë 1-point search
REGST NO. 0(0~7)
X0=176.0
OK
Y0=322.0
OK
x0=+000.0
OK
y0=+000.0
OK
M0=+10000 OK
B0=+002.6
OK
Ë 1-point search + 1-point edge
REGST NO. 0(0~7)
X0=176.0
OK
Y0=322.0
OK
x0=+000.0
OK
y0=+000.0
OK
M0=+10000 OK
B0=+001.7
OK
X1=534.0
OK
Y1=480.0
OK
x1=+001.0
OK
y1=+001.0
OK
K1=1
OK
Ë 1-point edge
REGST NO. 0(0~7)
X0=176.0
OK
Y0=322.0
OK
x0=+000.0
OK
y0=+000.0
OK
K0=1
OK
B0=
Ë 2-point edge
REGST NO. 0(0~7)
X0=176.0
OK
Y0=322.0
OK
x0=+000.0
OK
y0=+000.0
OK
K0=1
OK
B0=+001.7
OK
X1=534.0
OK
Y1=480.0
OK
x1=+001.0
OK
y1=+001.0
OK
K1=1
OK
4-6
