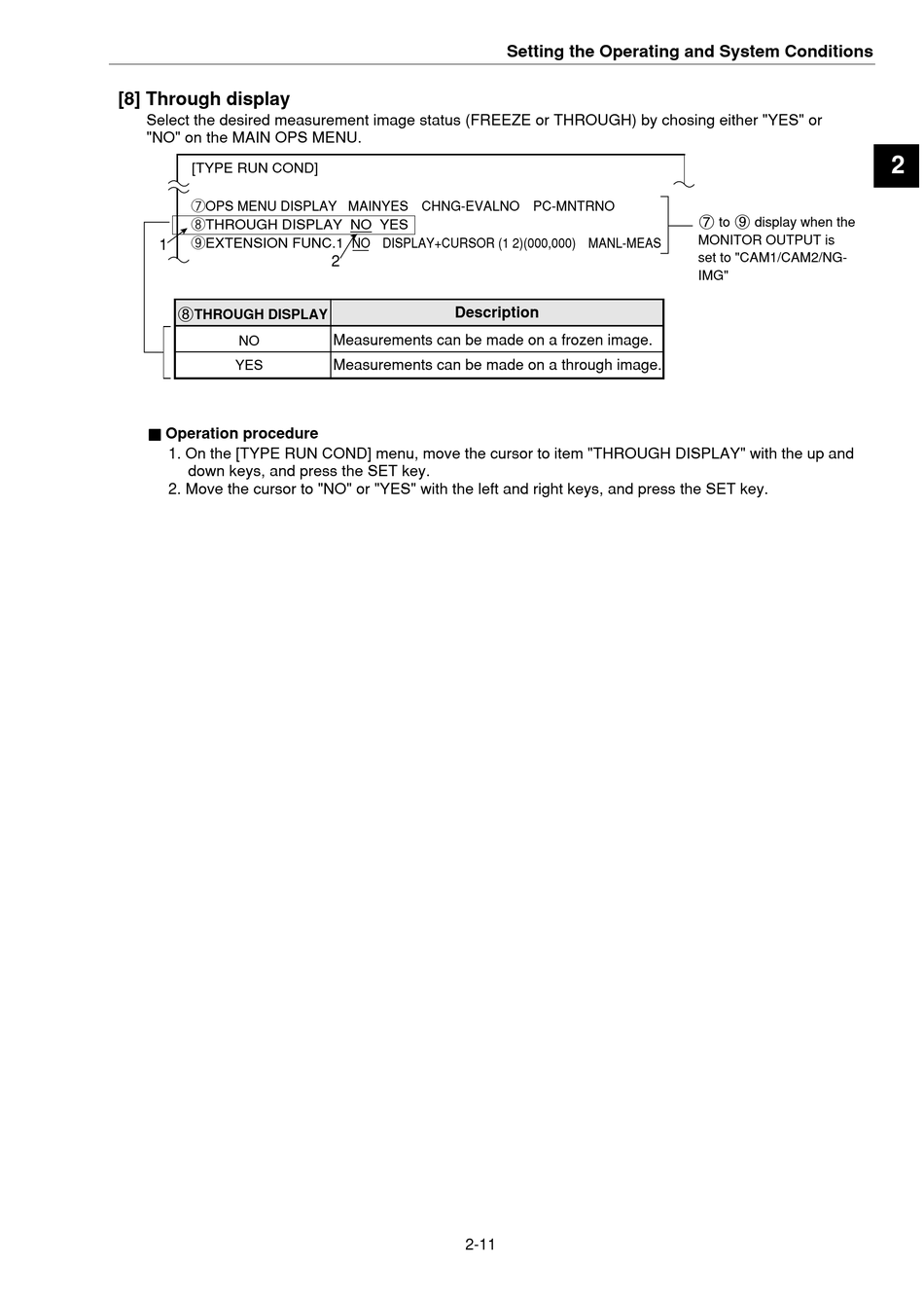

[8] Through display

Select the desired measurement image status (FREEZE or THROUGH) by chosing either "YES" or
"NO" on the MAIN OPS MENU.
[TYPE RUN COND]
OPS MENU DISPLAY MAINYES CHNG-EVALNO PC-MNTRNO
THROUGH DISPLAY NO YES
EXTENSION FUNC.1 NO DISPLAY+CURSOR (1 2)(000,000) MANL-MEAS
1
8THROUGH DISPLAY
NO
YES
Ë Ë Ë Ë Ë Operation procedure
1. On the [TYPE RUN COND] menu, move the cursor to item "THROUGH DISPLAY" with the up and
down keys, and press the SET key.
2. Move the cursor to "NO" or "YES" with the left and right keys, and press the SET key.
2
Description
Measurements can be made on a frozen image.
Measurements can be made on a through image.
2-11
Setting the Operating and System Conditions
7
9
2
