Inserting The Memory Card - AT&T MERLIN LEGEND Release 3.0 System Programming Manual

Memory Card
Inserting the Card
To insert the card, hold the card with the AT&T logo facing up and the arrow
pointing toward the slot. See Figure 4–5 for the proper way to insert the memory
card into the slot on the processor module.

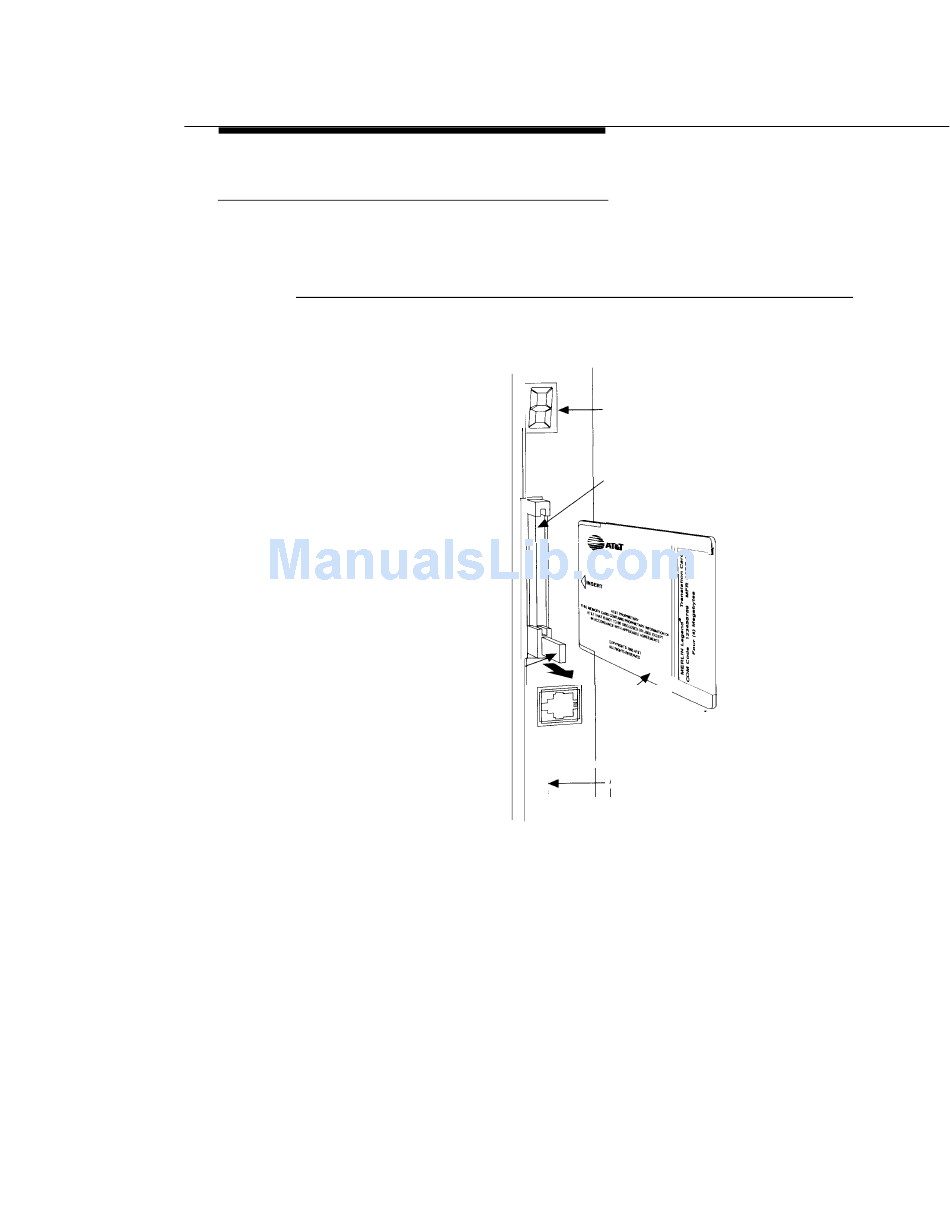

Figure

Inserting the Memory Card

4-5.
PROCESSOR
MODULE
Error/Status Code
Display
PCMCIA
Interface Slot
Push in
to remove
Memory
Card M e m o r y
Card
o
Alarm Status
LED
Programming Procedures
4–301
