System Programming Console
When entering labels or filenames, the letters A through F are displayed on the
MLX-20L console screen. Additional letters can be entered by using line buttons
1 to 20 to represent letters G through Z. These letters are also displayed on the
top line of the console overlay.
Line 1

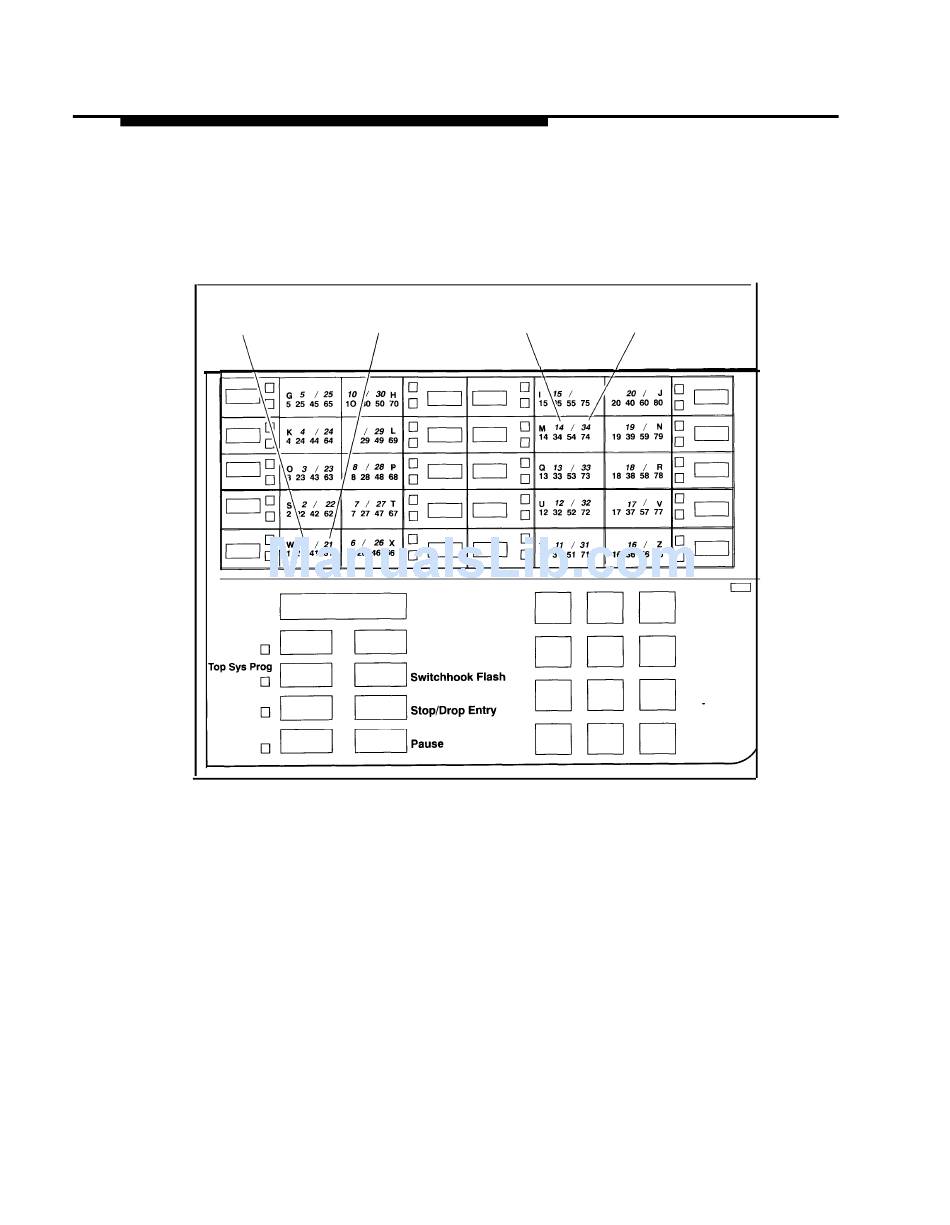

Figure 1–3. Console Overlay
When programming lines/trunks you can select a block of 20 lines/trunks as
shown on the screen below, and toggle the green or red LED associated with
each line button on the console to program each line/trunk. The bottom line of
numbers next to each line button on the console overlay represents the twenty
lines/trunks associated with each line button. See Figure 1–3 above.
1-8
Programming Basics
Line 14
Line 21
Line 34
I
