4. Select Run Utility. The Utility Results screen displays, showing a list of
5. Email this information to SpectraGuard Technical Support (see
C
ALIBRATING THE
If the touch points on the library's touch screen do not properly align with
the user interface graphics, perform the following procedure to recalibrate
the position of the touch points.
1. From the toolbar menu, select Maintenance > Tools. The Maintenance
2. Select Utilities. The Utilities screen displays.
3. Select Calibrate Touch Screen. The touch screen displays a series of
4. When the calibration routine is complete, the Utilities screen
December 2008
the firmware levels for all installed components.

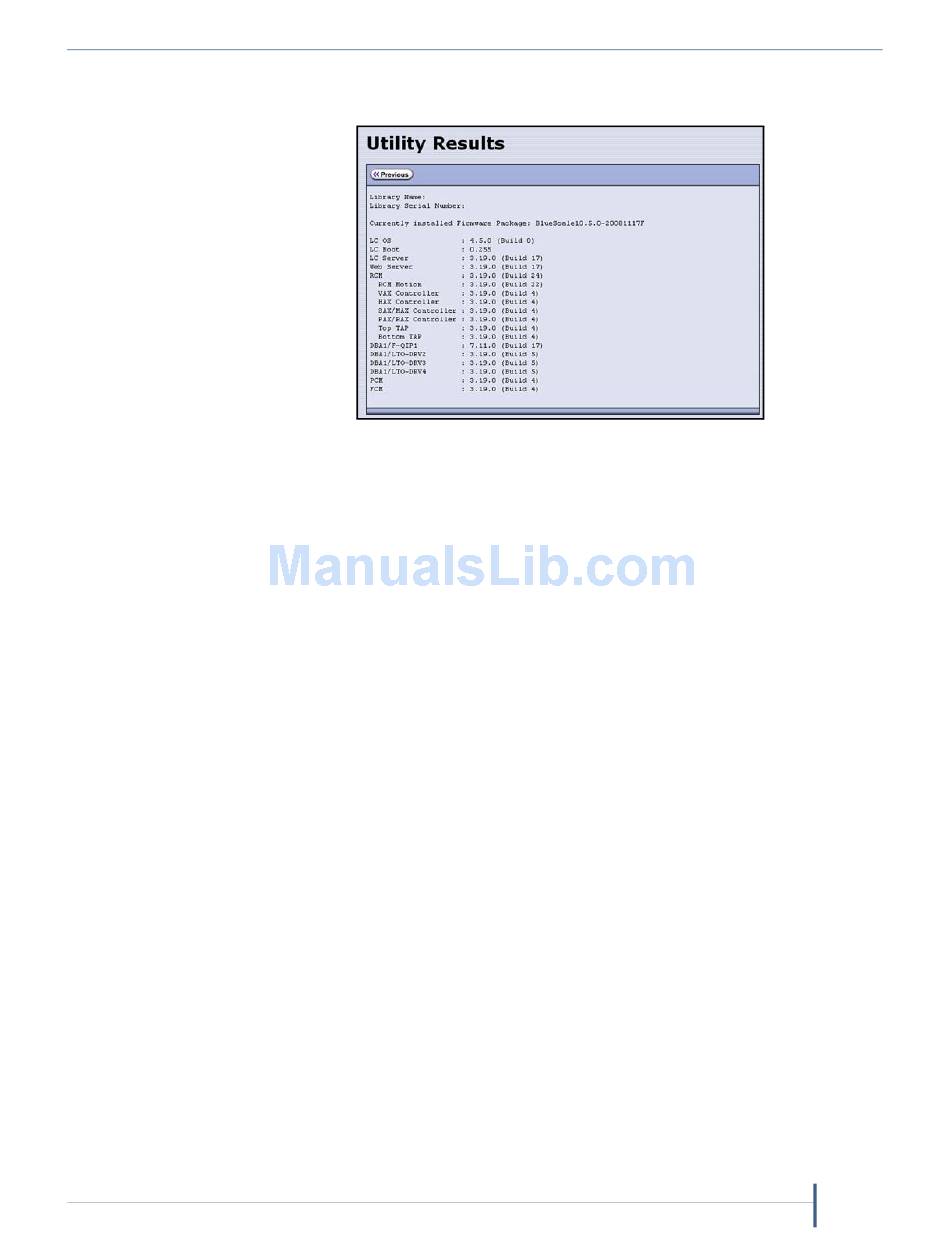

Figure 163 The Firmware Levels Utility Results
screen.
Contacting Spectra Logic on page
T S
OUCH CREEN
Note: This procedure is not necessary or helpful unless recommended
by SpectraGuard Technical Support.
Note: You must perform this procedure while standing in front of the
touch screen.
Tools screen displays
calibration target points. Touch each point as it displays with either
your finger or a stylus to recalibrate the touch points on the screen.
Note: Touch each point at a straight-on angle as close to the center of
the target as possible.
redisplays.
5) for advanced troubleshooting.
(Figure 161 on page 248).
T200, T380, and T680 Libraries

Calibrating the Touch Screen

249
