Spectra Logic T-Series Spectra T200 User Manual page 155

5. If desired, select Use iSNS.
6. If you did not select CHAP authentication, skip to
7. Enter the Remote Device Name and Remote Secret. The remote name
8. If you want to use bi-directional (dual) CHAP, enter the Local Device
December 2008
If you choose to use iSNS, enter the iSNS IP Address and the iSNS Port.
iSNS IP addresses must be a valid Class A, B or C address and the iSNS
Port setting must be integer between 1 and 65535. See
page 154 for information about using iSNS.
If you chose to use CHAP authentication, select Next. The Exporting
CHAP Settings screen displays.

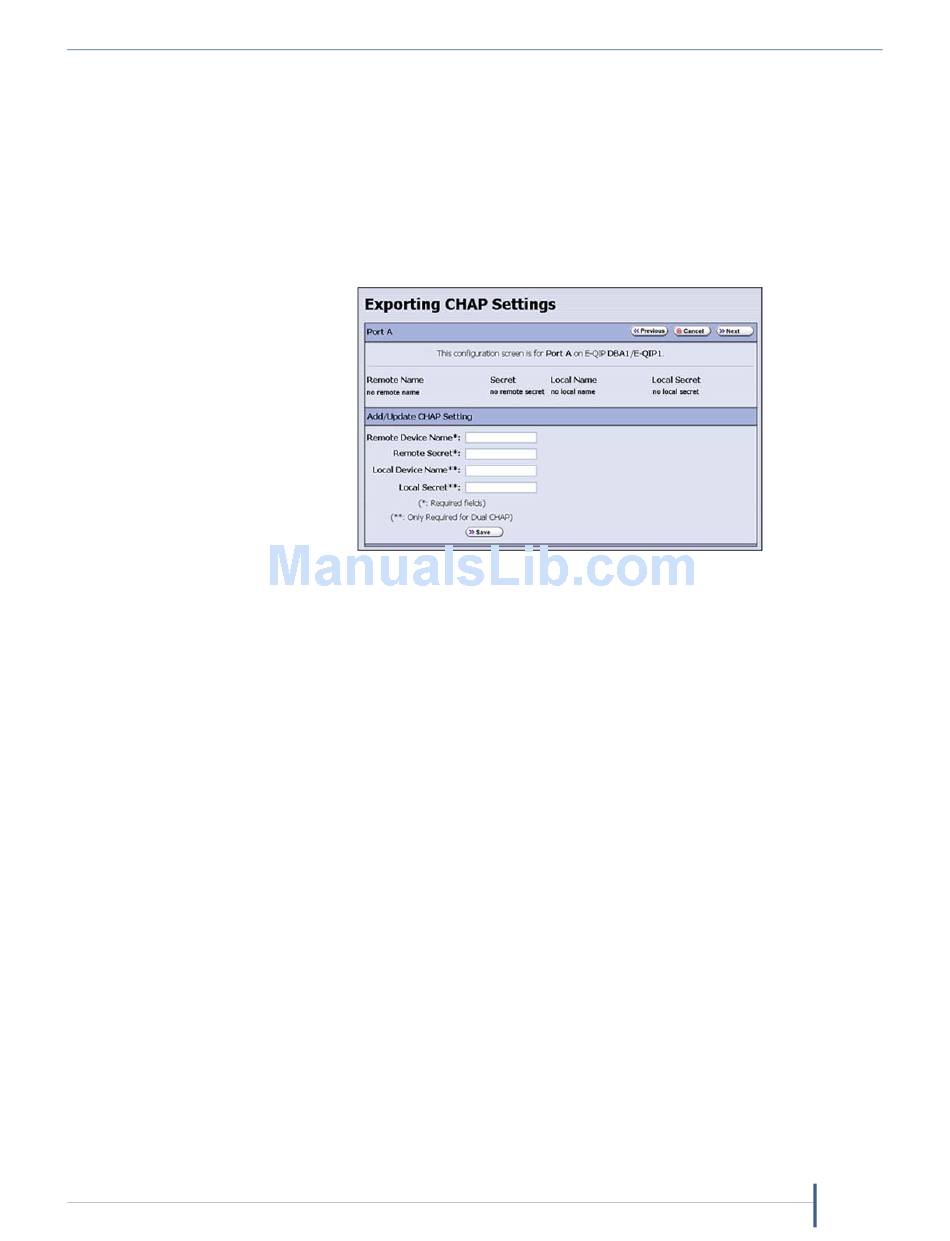

Figure 88 The Exporting CHAP Settings screen.
and secret (password) are used by the iSCSI initiator when it
authenticates the QIP port.
The name must be less than 255 alphanumeric (plus hyphen, period,
and colon) characters, and the secret must be less than 101 characters.
Note: Some iSCSI initiators have their own imposed limits on the
number of characters used for the Name and Secret.
Name and Local Secret. The local name and secret (password) are used
by the QIP when it authenticates the iSCSI initiator.
Note: You only need to enable dual CHAP if the iSCSI initiator requires
bi-directional CHAP authentication. If the iSCSI initiator is
configured to use uni-directional CHAP, then only uni-
directional CHAP is used, even if the QIP port is configured
with dual CHAP.
Note:
You must either enter values for both the Local Device Name and
Local Secret or leave both blank.
The name must be less than 255 alphanumeric (plus hyphen, period,
and colon) characters, and the secret must be less than 101 characters.
Some iSCSI initiators have their own imposed limits on the number of
characters used for the Name and Secret.
Creating a New Data Partition
Using iSNS. on
Step 12 on page
T200, T380, and T680 Libraries
156.
155
