Chapter 1 — Library Overview

Rear Panel Components

Figure 4

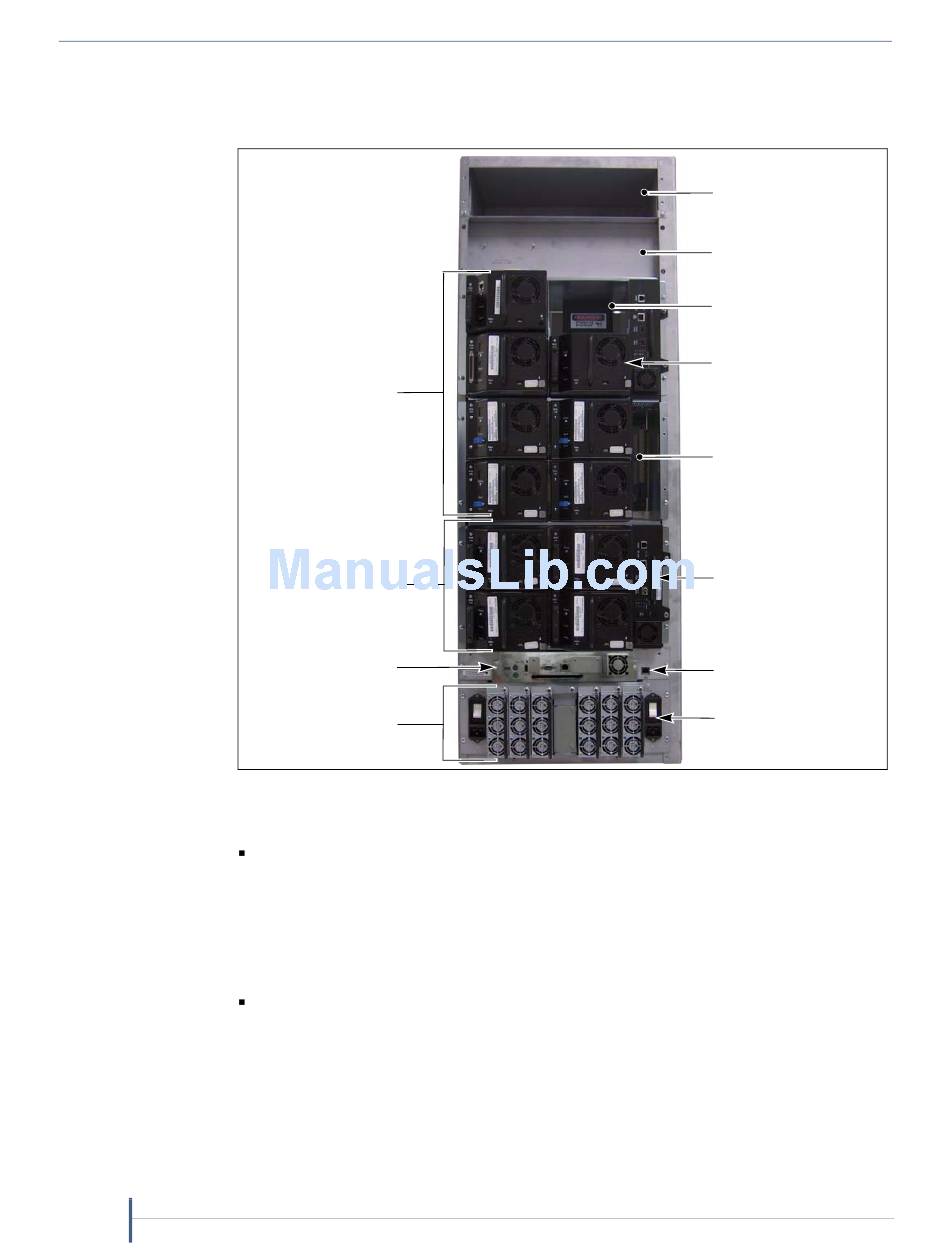

Figure 4 Library rear components (T380 2N redundant power supply option
shown).
28
User Guide
shows the rear panel components of the library.
Flex bays (for DBAs
or chambers)
Drive Bay Assembly
(DBA)
Library Control
Module (LCM)
Power supply
modules
Flex bays. Depending on requirements, flex bays let you increase the
number of drives or amount of media installed in the library. Flex bays
can accommodate additional drive bay assemblies (DBAs) for increased
performance or shelves for increased storage capacity. Two shelves
occupy the same physical space as a single DBA. Each shelf has three
chambers for media storage.
Drive Bay Assemblies (DBA). Modular drive bay assemblies house the
drives and controllers installed in the library. Each DBA accommodates
up to four full-height tape drives or four RXT drives and provides the
electrical and internal interface connections for the drives. The DBA
also includes a controller bay to the right of the drives. The controller
bay accommodates one QIP or bus expansion module. Use of a QIP or
bus expansion module is optional, depending on how the drives in the
DBA connect to the network.
Tool storage
Chambers (3)
(behind cover)
Empty drive bay
(cover removed)
Drive
Empty controller bay
(cover removed)
QIP or bus
expansion module
BlueScale Vision
camera connector
Main AC power cord
connector and switch
