4. Remove some or all of the chamber shelves in the front of the library to

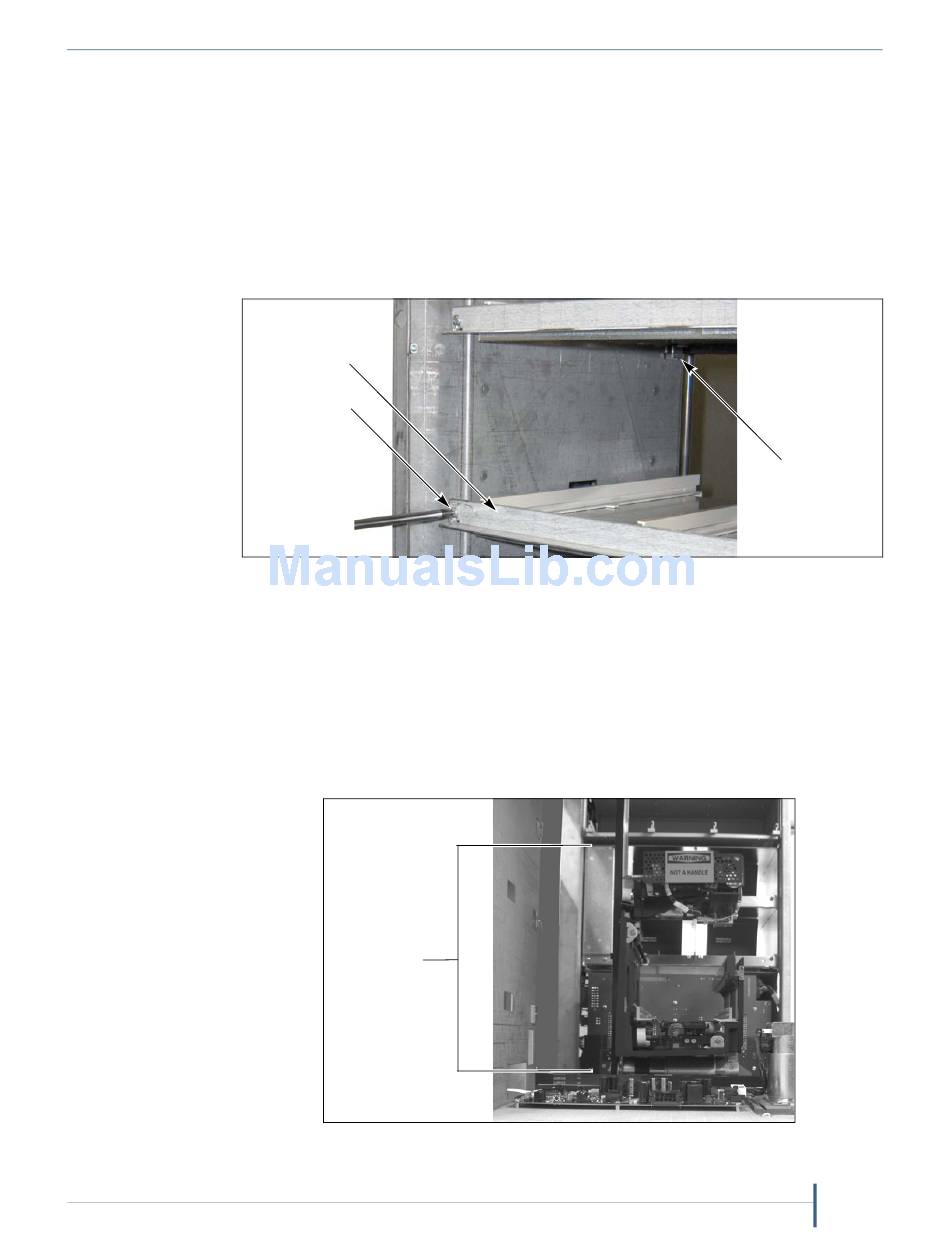

Figure 174 Removing the shelf retaining bar.
December 2008
provide clear access to the interior.
a. Use a #2 Phillips screwdriver to loosen, but not remove, the two
screws securing the shelf retaining bar to the chassis (shown in
Figure 174).
Note: The screw on the right side of the retaining bar is accessed
through the circular cutout in the chassis.
Note: The shelves behind the fan assembly do not have retaining bars.
Retaining bar
Screw
b. Lift retaining bar up off the screws and set it aside.
c. Grasp the front edge of the shelf with both hands and pull it toward
you to disengage the shelf from the slots in the front of the chassis
and the rear mounting tabs. Angle the left side of the shelf slightly
upward and slide the shelf out of the chassis. Set the shelf aside.
d. Repeat Step a through
that you can reach into the library and access the transporter.
Transporter
Figure 175 The interior of the library with chamber shelves
removed (front view).
Access the Library Interior to Check for Blockages
Step c to remove the remaining shelves so
T200, T380, and T680 Libraries
Mounting tab
