2. Reinstall the shelf retaining bar and tighten the screws.
3. Reinstall the fan assembly.
December 2008
Note: The shelves located behind the fan assembly do not use retaining
bars.
Note: Do not insert any media you removed from the chambers at this
point. You will reimported the media after you power on the
library and test the new transporter.
Retaining bar
Screw

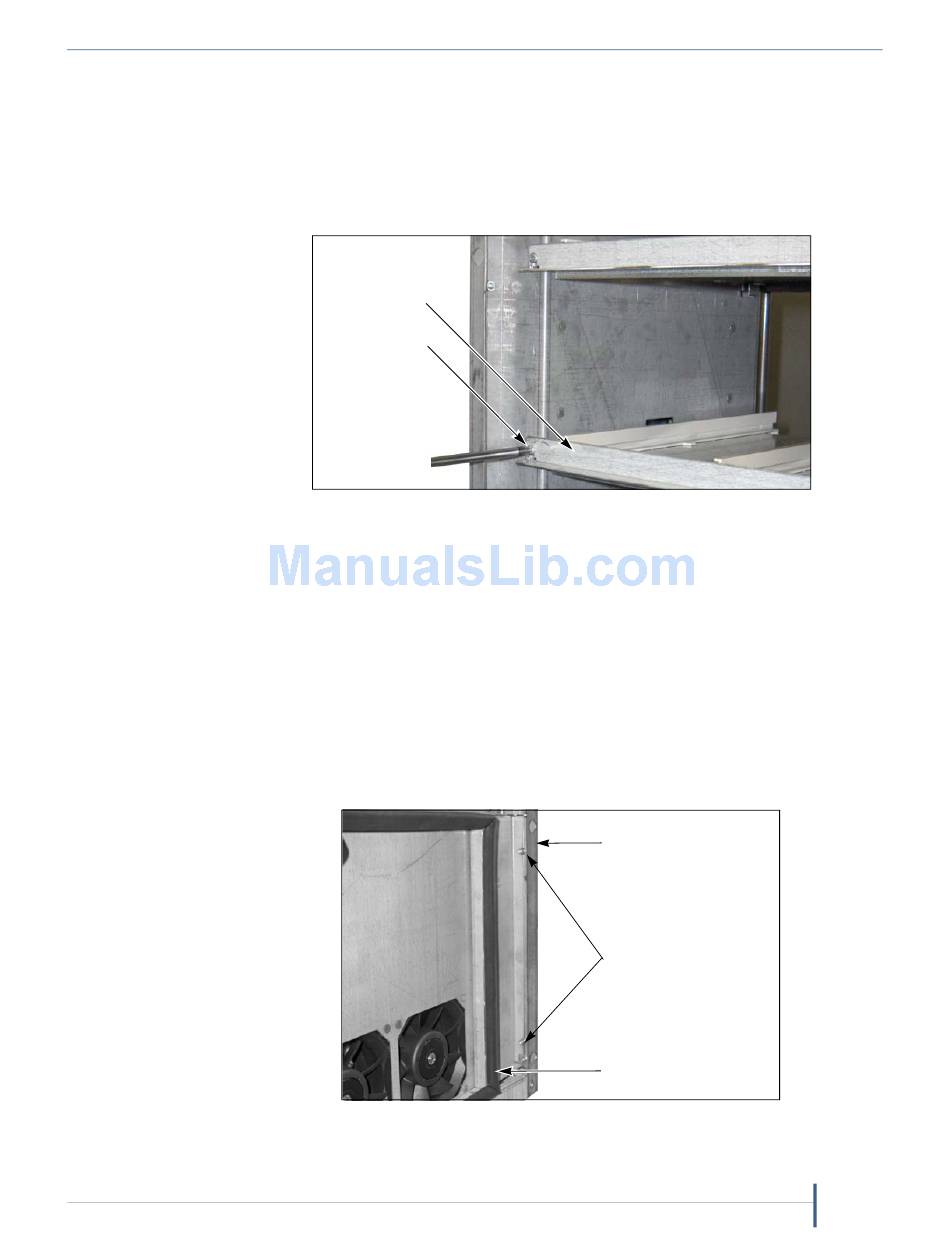

Figure 179 Reinstalling the chamber shelf retaining bar.
Note:
Do not replace any magazines or RXT media packs you removed
from the shelves. Instead, reimport the using your backup
software after you have restarted the library and tested the new
transporter.
a. Orient the fan assembly with the gasket material toward the outside
and the knurled nut to the left.
b. Angle the right edge of the assembly behind the front right edge of
the chassis so that the notches in the edge of the assembly fit over
the PEM nuts on the chassis.
Figure 180 Position the fan assembly in the front of
the chassis.
Access the Library Interior to Check for Blockages
Front edge of chassis
PEM nuts
Gasket material
T200, T380, and T680 Libraries
