Figure 20
Notice that a SCSI terminator installed on the bus expansion module
supplies termination for the SCSI bus.
Drive 3
Drive 1
Internal SCSI bus
External LVD SCSI cable
Wide SCSI connector (bus expansion module)
Internal SCSI connector (DBA to drive)
SCSI terminator

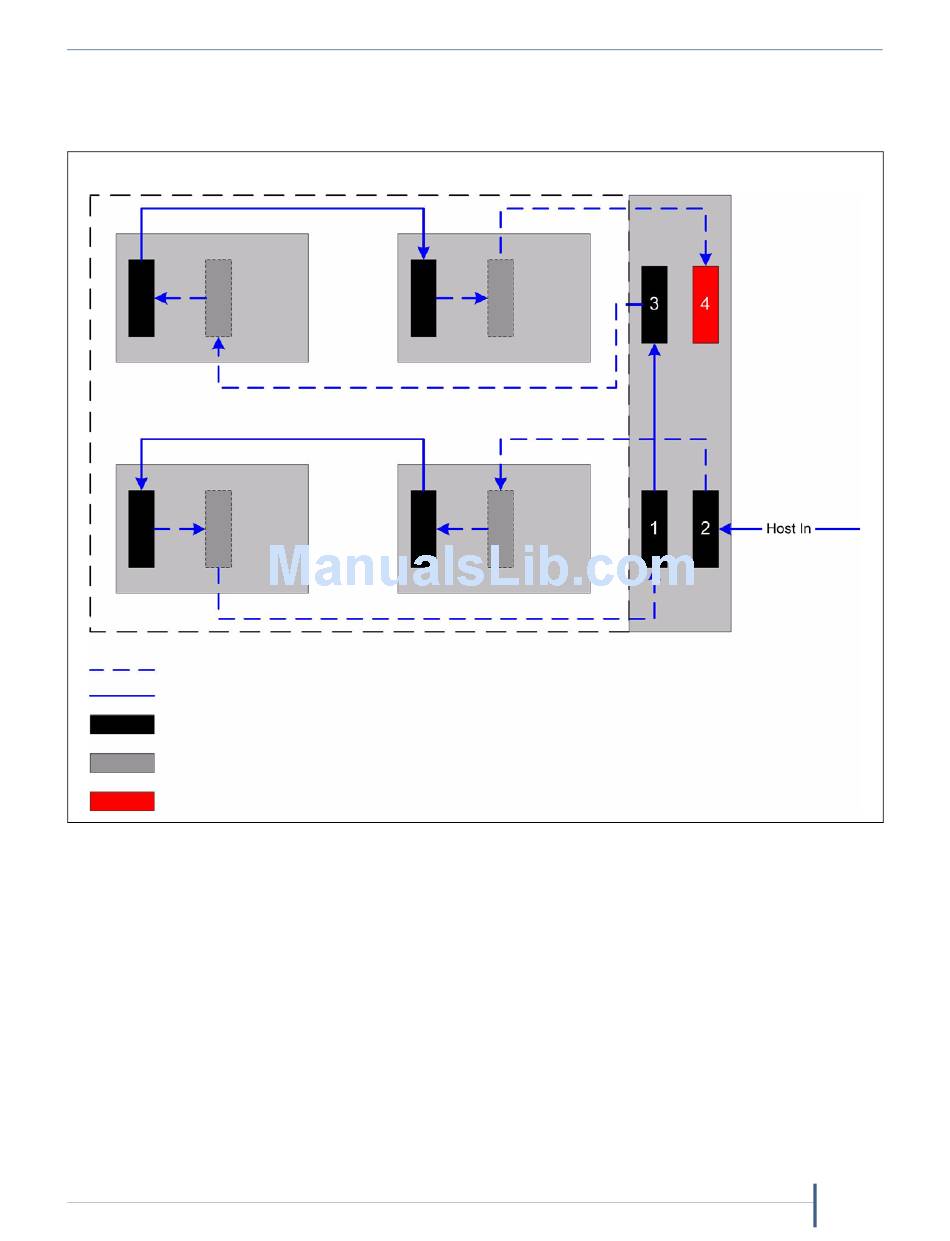

Figure 20 Daisy-chaining multiple direct-attach SCSI drives on a single SCSI bus.
December 2008
shows connecting all four drives in a DBA to a single SCSI bus.
Drive Bay Assembly
Drive 4
Drive 2
Bus expansion
module
T200, T380, and T680 Libraries
Network Connectivity
49
