FusionModule5000 Smart Modular Data Center
Installation Guide (Single-Row Aisle Containment with
2000 mm High Cabinets, ECC800)


Procedure
Step 1 Determine the mounting holes for the rack environment unit in the cabinet based on the
engineering layout diagram and install floating nuts.
Step 2 Secure the rack environment unit to the cabinet by tightening the M6 screws on the left and
right mounting ears clockwise, as shown in

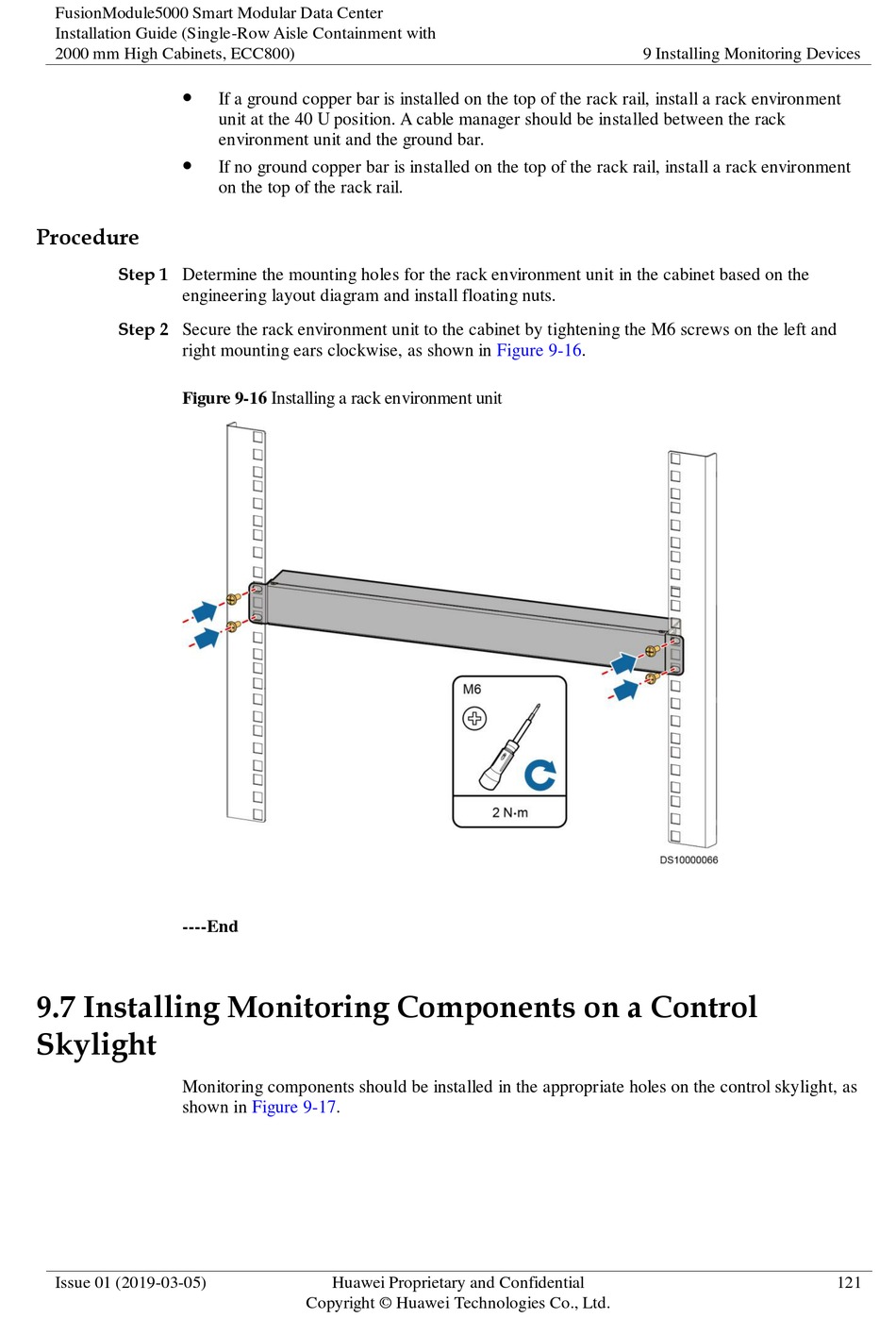

Figure 9-16 Installing a rack environment unit
----End
9.7 Installing Monitoring Components on a Control
Skylight
Monitoring components should be installed in the appropriate holes on the control skylight, as
shown in
Issue 01 (2019-03-05)
If a ground copper bar is installed on the top of the rack rail, install a rack environment
unit at the 40 U position. A cable manager should be installed between the rack
environment unit and the ground bar.
If no ground copper bar is installed on the top of the rack rail, install a rack environment
on the top of the rack rail.
Figure 9-17.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9 Installing Monitoring Devices
Figure 9-16.
121
