1.4 Site Requirements (Power Supply and Distribution
Cabinet)
Equipment Room Height Requirement
The net height of an equipment room must not be lower than 2600 mm in the case of a single-
row aisle containment.
The maximum height of the module is the height when the skylight is open. The maximum
height is not exceeded if the camera support or fire extinguisher support is installed.
The clearance for fire extinguishing nozzles is subject to specific fire extinguishing
requirements and is not considered in this section.

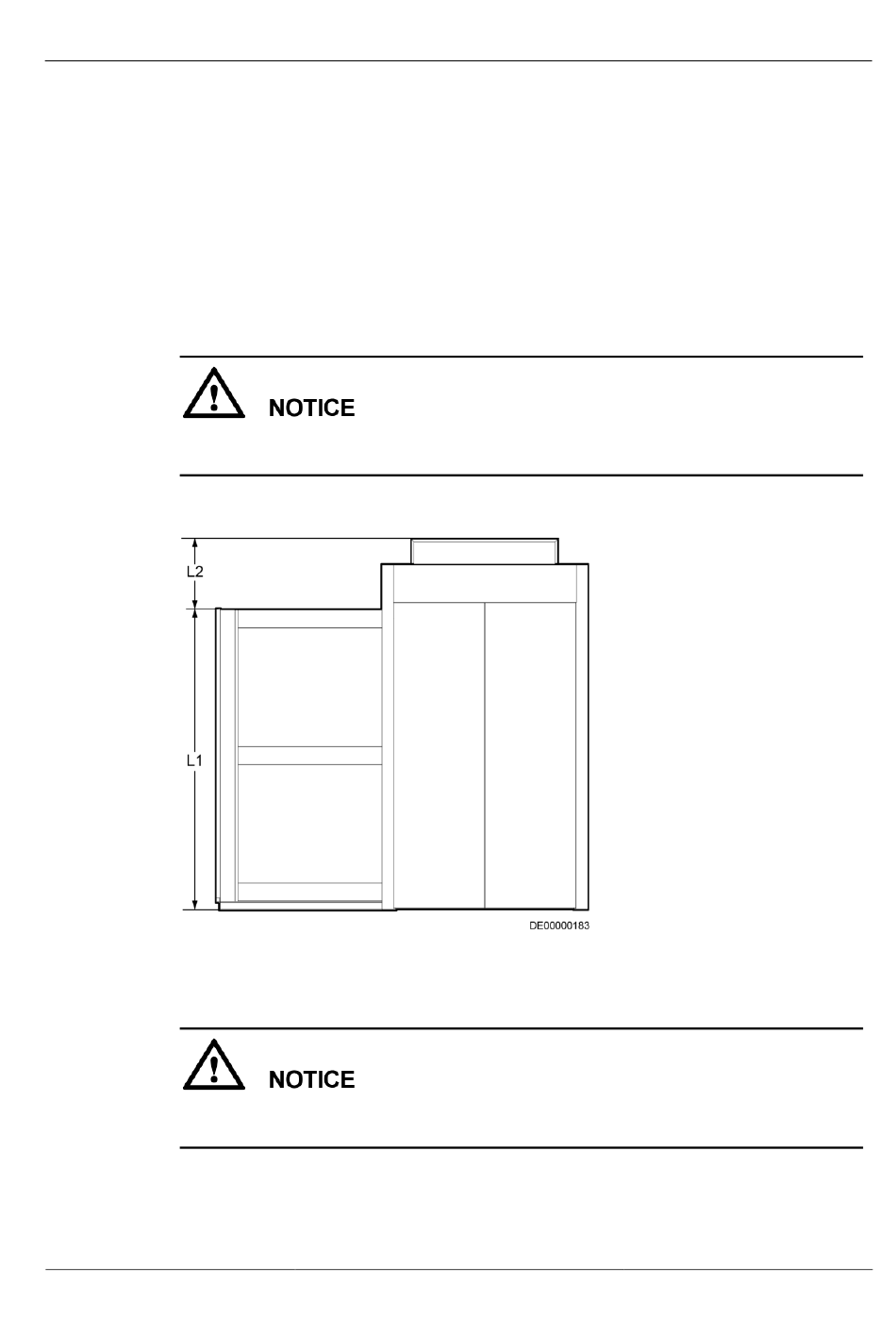

Figure 1-3 Smart module height
Cabinet height L1: 2000 mm
When the base is configured, the equipment room net height equals the equipment room net
height (without base) plus the base height.
Issue 01 (2019-03-05)
Figure 1-3
shows the height of each component in the smart module.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Open-skylight height L2: 550 mm
