INVT Goodrive35 Series Operation Manual page 82

Goodrive35 Series Closed-loop Vector Control VFD
Functio
Name
n code
Terminals control
P05.13
running mode
Detailed instruction of parameters
communication, and the communication address is
0x200A.

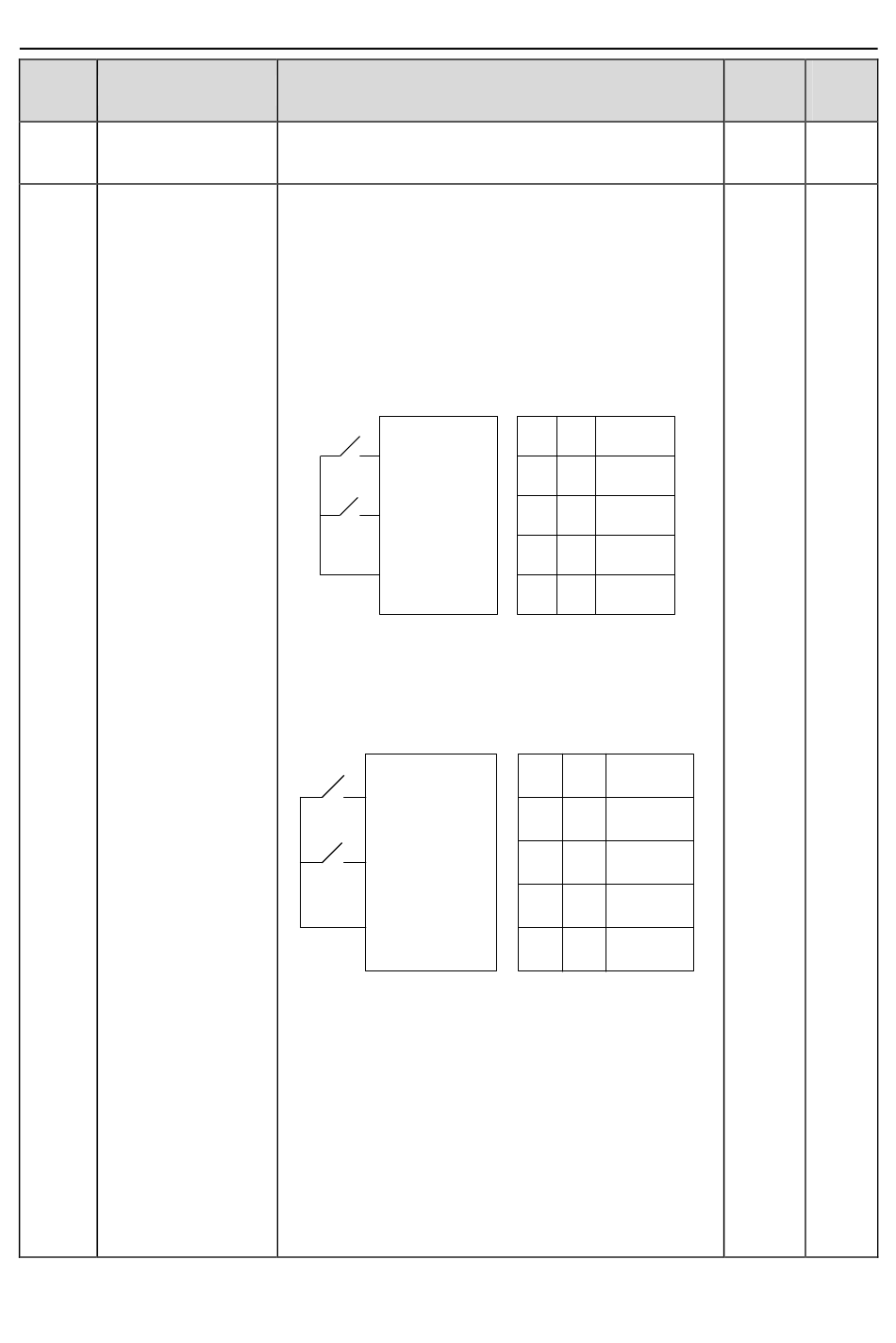

This parameter is used to set the terminal-based
control mode.
0: 2-wire control mode 1, integrating the enabling
and direction setting functions. This is the most
common 2-wire mode. The forward or reverse
running of the motor is determined by the defined
FWD and REV terminals.
FWD
K1
REV
K2
COM
1: 2-wire control mode 2, separating the enabling
and direction setting functions. The defined FWD
terminal is used for enabling, and the direction is
determined by the defined REV terminal.
FWD
K1
REV
K2
COM
2: 3-wire control mode 1. In this mode, SIn is defined
as the enabling terminal, the running command is
determined by the FWD terminal, and the direction is
determined by the REV terminal. When the VFD is
running, terminal SIn must be in the connected state.
When terminal FWD generates a rising edge signal,
the VFD starts to run, and the running direction is
determined by terminal REV. To stop the running of
the VFD, you need to disconnect terminal SIn.
75
Running
FWD REV
command
OFF OFF Stop
Forward
ON OFF
running
Reverse
OFF ON
running
Hold
ON ON
on
Running
FWD REV
command
OFF OFF Stop
Forward
ON OFF
running
OFF ON
Stop
Reverse
ON ON
running
Function parameters
Default Modif
value y
0
◎
